SDA01H1SBDR Information

SDA01H1SBDR by C&K is a DIP Switch.
DIP Switches are under the broader part category of Switches.

Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.

Price & Stock for SDA01H1SBDR

Part # Distributor Description Stock Price Buy
DISTI # 35AH5900
Newark Dip Switch, Spst, 1Pos, 0.1A, 5Vdc, Smd, No. Of Circuits:1Circuits, Switch Actuator Style:Slide, Switch Mounting:Surface Mount, Contact Configuration:Spst-No, Contact Voltage Dc Max:5V, Contact Current Dc Max:100Ma Rohs Compliant: Yes |C&k Components SDA01H1SBDR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 434
  • 1 $2.4100
  • 10 $1.9100
  • 25 $1.8300
  • 50 $1.7600
  • 100 $1.6800
  • 250 $1.5600
$1.5600 / $2.4100 Buy Now
DISTI # 108-SDA01H1SBDRCT-ND
DigiKey SWITCH SLIDE DIP SPST 0.025A 24V Min Qty: 1 Lead time: 11 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 693
In Stock
  • 1 $2.1900
  • 10 $1.8450
  • 25 $1.7112
  • 100 $1.5243
  • 250 $1.4140
  • 500 $1.3386
  • 1,450 $1.2368
  • 2,900 $1.1795
  • 4,350 $1.1491
  • 7,250 $1.1140
$1.1140 / $2.1900 Buy Now
DISTI # 611-SDA01H1SBDR
Mouser Electronics DIP Switches / SIP Switches SWITCH DIP RoHS: Compliant 3750
  • 1 $2.3500
  • 10 $1.6900
  • 100 $1.4800
  • 250 $1.3700
  • 500 $1.2700
  • 1,000 $1.1800
  • 2,900 $1.1300
$1.1300 / $2.3500 Buy Now
DISTI # 68019573
Verical Switch DIP OFF ON SPST 1 Raised Slide 0.1A 24VDC Gull Wing 1000Cycles SMD T/R RoHS: Compliant Min Qty: 1450 Package Multiple: 1450 Americas - 73950
  • 1,450 $1.0100
$1.0100 Buy Now
Bristol Electronics   3732
RFQ
Bristol Electronics   Min Qty: 3 160
  • 3 $1.9500
  • 12 $1.4625
  • 36 $1.2188
  • 125 $0.7312
$0.7312 / $1.9500 Buy Now
Quest Components   2985
  • 1 $3.1200
  • 417 $1.2870
  • 778 $1.1700
$1.1700 / $3.1200 Buy Now
Quest Components   128
  • 1 $2.6000
  • 14 $1.6250
  • 47 $0.9750
$0.9750 / $2.6000 Buy Now
DISTI # SDA01H1SBDR
TTI DIP Switches / SIP Switches SWITCH DIP RoHS: Compliant Min Qty: 1450 Package Multiple: 1 Container: Each Americas - 0
  • 1,450 $1.1000
$1.1000 Buy Now
DISTI # SDA01H1SBDR
TME Switch: DIP-SWITCH, ON-OFF, 0.1A/5VDC, Pos: 2, -40÷85°C, SMD, SDA Min Qty: 1450 0
  • 1,450 $1.1700
$1.1700 RFQ
DISTI # SDA01H1SBDR
IBS Electronics SWITCH DIP OFF ON SPST 1 RAISED SLIDE 0.1A 24VDC GULL WING 1000CYCLES SMD T/R Min Qty: 1450 Package Multiple: 1 75596
  • 300 $1.2870
  • 500 $1.2740
  • 1,450 $1.3260
  • 2,000 $1.2415
  • 3,000 $1.2155
$1.2155 / $1.3260 Buy Now
DISTI # 000000000005957164
Sager DIP Switches / SIP Switches Low Profile DIP Min Qty: 1450 0
  • 1,450 $1.1200
  • 2,900 $1.0800
$1.0800 / $1.1200 Buy Now

Part Details for SDA01H1SBDR

SDA01H1SBDR CAD Models

  • Part Symbol

    Part Symbol

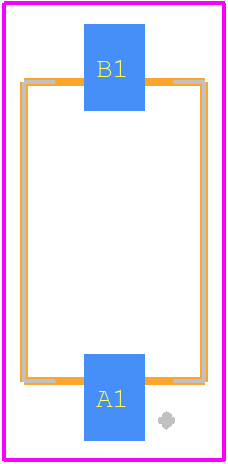

  • Footprint

    footprint

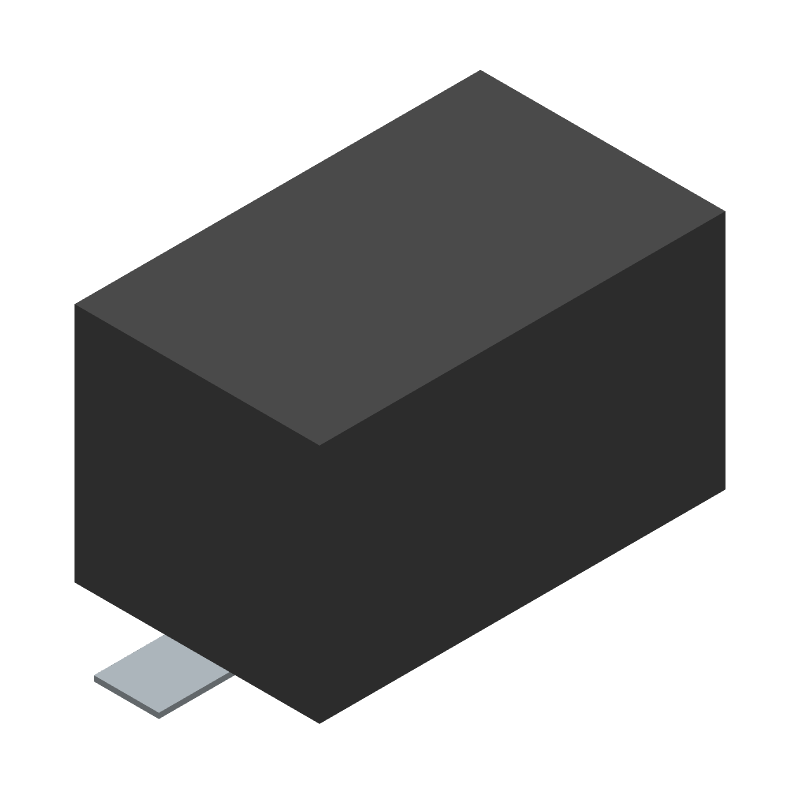

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SDA01H1SBDR Part Data Attributes

Parametric Data
SDA01H1SBDR C&K
Buy Now Datasheet
Compare Parts:
SDA01H1SBDR C&K SLIDE DIP SWITCH-
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer C & K COMPONENTS LLC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.50.90.65
Factory Lead Time 48 Weeks
Samacsys Manufacturer C & K COMPONENTS
Actuator Length 0.039 inch
Actuator Material POLYAMIDE6T
Actuator Type SLIDE TYPE
Additional Feature LOW PROFIE, UL
Body Breadth 4.52 mm
Body Color BLACK
Body Height 3.5 mm
Body Length or Diameter 7.49 mm
Center Contact Material BERYLLIUM COPPER
Center Contact Plating GOLD
Contact Current(DC)-Max 0.1 A
Contact (DC) Max Rating R Load 0.1A@5VDC
Contact Function ON-OFF
Contact Resistance 0.05 mΩ
Contact Voltage(DC)-Max 5 V
Dielectric Withstand Volts 300VDC V
Electrical Life 1000 Cycle(s)
End Contact Material BERYLLIUM COPPER
End Contact Plating GOLD
Housing Material POLYPHENYLENE SULPHIDE
Insulation Resistance 100000000 Ω
Insulator Material POLYPHENYLENE SULPHIDE
JESD-609 Code e4
Mounting Feature SURFACE MOUNT-STRAIGHT
Number of Positions 1
Number of Switch Sections 1
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Packing Method TR, 13 INCH
Surface Mount NO
Switch Action LATCHED
Switch Function SPST
Switch Type SLIDE DIP SWITCH
Terminal Finish GOLD OVER NICKEL
Terminal Material BRASS
Termination Type SOLDER
