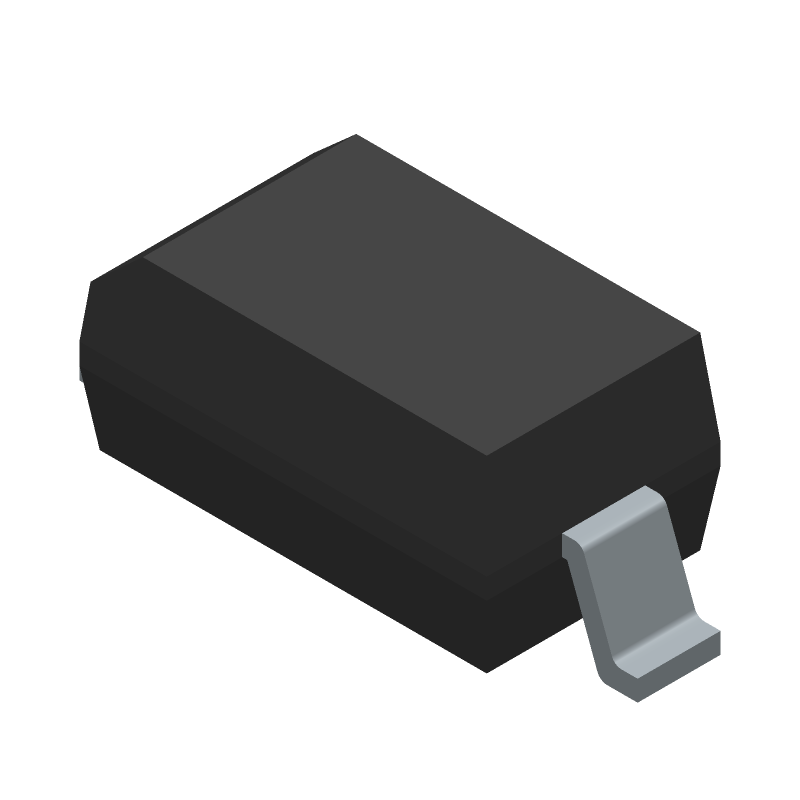

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SD103CW-HE3_A-08 by Vishay Intertechnologies
Results Overview of SD103CW-HE3_A-08 by Vishay Intertechnologies
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SD103CW-HE3_A-08 Information
SD103CW-HE3_A-08 by Vishay Intertechnologies is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SD103CW-HE3_A-08
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
112-SD103CW-HE3_A-08CT-ND
|
DigiKey | DIODE SCHOTTKY 20V 350MA SOD123 Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
14975 In Stock |
|
$0.0437 / $0.3000 | Buy Now |
|
DISTI #
SD103CW-HE3_A-08
|
Avnet Americas | SCHOTTKY DIODE SOD123 - Tape and Reel (Alt: SD103CW-HE3_A-08) RoHS: Not Compliant Min Qty: 15000 Package Multiple: 15000 Lead time: 11 Weeks, 0 Days Container: Reel | 0 |
|
$0.0509 / $0.0519 | Buy Now |
|
DISTI #
78-SD103CW-HE3_A-08
|
Mouser Electronics | Schottky Diodes & Rectifiers SCHOTTKY DIODE SOD123 RoHS: Compliant | 13076 |
|
$0.0440 / $0.3000 | Buy Now |
Part Details for SD103CW-HE3_A-08
SD103CW-HE3_A-08 CAD Models
SD103CW-HE3_A-08 Part Data Attributes
|
|
SD103CW-HE3_A-08
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
SD103CW-HE3_A-08
Vishay Intertechnologies
Rectifier Diode, Schottky, 1 Phase, 1 Element, 0.35A, 20V V(RRM), Silicon, SOD-123, 2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | SOD-123, 2 PIN | |
| Reach Compliance Code | unknown | |
| Factory Lead Time | 11 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Application | EFFICIENCY | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.6 V | |
| JESD-30 Code | R-PDSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 2 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 0.35 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Power Dissipation-Max | 0.37 W | |
| Reference Standard | AEC-Q101 | |
| Rep Pk Reverse Voltage-Max | 20 V | |
| Reverse Current-Max | 5 µA | |
| Reverse Recovery Time-Max | 0.01 µs | |
| Reverse Test Voltage | 10 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL |
