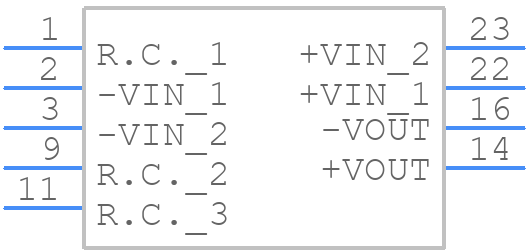

Part Symbol
-
Footprint
-

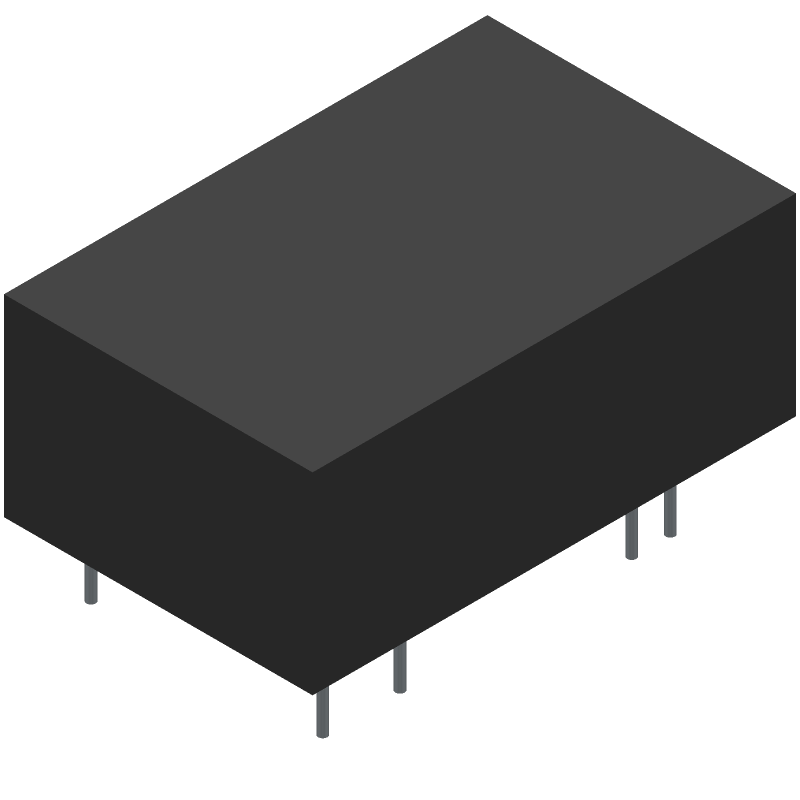

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SCW12A-15 by Mean Well
Results Overview of SCW12A-15 by Mean Well
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
SCW12A-15 Information
SCW12A-15 by Mean Well is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for SCW12A-15
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1866-4373-ND
|
DigiKey | DC DC CONVERTER 15V 12W Min Qty: 1 Lead time: 12 Weeks Container: Tube |
7 In Stock |
|
$19.9050 / $21.0100 | Buy Now |
|
DISTI #
SCW12A-15
|
Avnet Americas | - Boxed Product (Development Kits) (Alt: SCW12A-15) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 19 Weeks, 3 Days Container: Box | 0 |
|
$15.3730 / $19.5354 | Buy Now |
|
DISTI #
709-SCW12A-15
|
Mouser Electronics | Isolated DC/DC Converters - Through Hole 12W 9-18Vin 15Vout 160-800mA RoHS: Compliant | 0 |
|
$18.1700 / $19.9700 | Order Now |
|
DISTI #
70388305
|
RS | Power Supply, DC-DC, 12W DC-DC Regulated, 12W, In: 9-18V, 15V @800mA Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk | 0 |
|
$25.0200 / $27.8000 | RFQ |
|
|
Onlinecomponents.com | Module DC-DC 1-OUT 15V 0.8A 12W 9-Pin RoHS: Compliant |
4 In Stock 77 Factory Stock |
|
$15.6400 / $18.2400 | Buy Now |
|
DISTI #
51746314
|
Verical | Module DC-DC 1-OUT 15V 0.8A 12W 9-Pin Tube RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 1724 | Americas - 4 |
|
$20.3320 / $23.7120 | Buy Now |
|
DISTI #
SCW12A-15
|
TME | Converter: DC/DC, 12W, Uin: 9÷18VDC, Uout: 15VDC, Iout: 800mA, SCW12 Min Qty: 1 | 0 |
|
$16.3200 / $24.8200 | RFQ |
|
DISTI #
SCW12A-15
|
IBS Electronics | 12W I/P: 9-18VDC O/P: 15V @800MA D/D MODULE DC/DC MODULE TYPE Min Qty: 1 Package Multiple: 1 | 4 |
|
$20.3320 / $23.7120 | Buy Now |
|
DISTI #
000000000003772665
|
Sager | Isolated DC/DC Converters - Through Hole 12W 9-18Vin 15Vout 160-800mA Min Qty: 1 | 0 |
|
$14.6100 / $20.3100 | Buy Now |
|
|
Master Electronics | Module DC-DC 1-OUT 15V 0.8A 12W 9-Pin RoHS: Compliant |
4 In Stock 77 Factory Stock |
|
$15.6400 / $18.2400 | Buy Now |
Part Details for SCW12A-15
SCW12A-15 CAD Models
SCW12A-15 Part Data Attributes
|
|
SCW12A-15
Mean Well
Buy Now
Datasheet
|
Compare Parts:
SCW12A-15
Mean Well
Analog Circuit
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MEAN WELL ENTERPRISES CO LTD | |
| Package Description | PACKAGE-24/9 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 19 Weeks, 3 Days | |
| Samacsys Manufacturer | Mean Well | |
| Additional Feature | REMOTE ON/OFF | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Approvals | EAC | |
| Efficiency (Main Output) | 82% | |
| Input Voltage-Max | 18 V | |
| Input Voltage-Min | 9 V | |
| JESD-30 Code | R-MDMA-P9 | |
| Length | 31.8 mm | |
| Line Regulation-Max | 0.5% | |
| Load Regulation-Max | 0.5% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 9 | |
| Operating Temperature-Max | 71 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.8 A | |
| Output Voltage-Max | 15.3 V | |
| Output Voltage-Min | 14.7 V | |
| Output Voltage-Nom | 15 V | |
| Package Body Material | METAL | |
| Package Code | DMA | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Protections | OVER LOAD; SHORT CIRCUIT | |
| Ripple Voltage (Main Out) | 0.02121 Vrms | |
| Seated Height-Max | 12.7 mm | |
| Surface Mount | NO | |
| Switching Frequency-Max | 400 kHz | |
| Technology | HYBRID | |
| Terminal Form | PIN/PEG | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Total Power Output-Max | 12 W | |
| Trim/Adjustable Output | NO | |
| Width | 20.3 mm |
