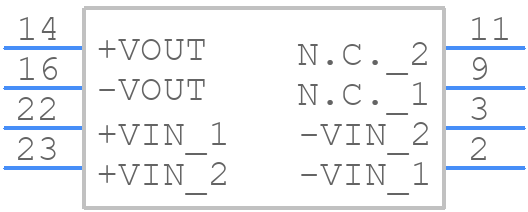

Part Symbol
-

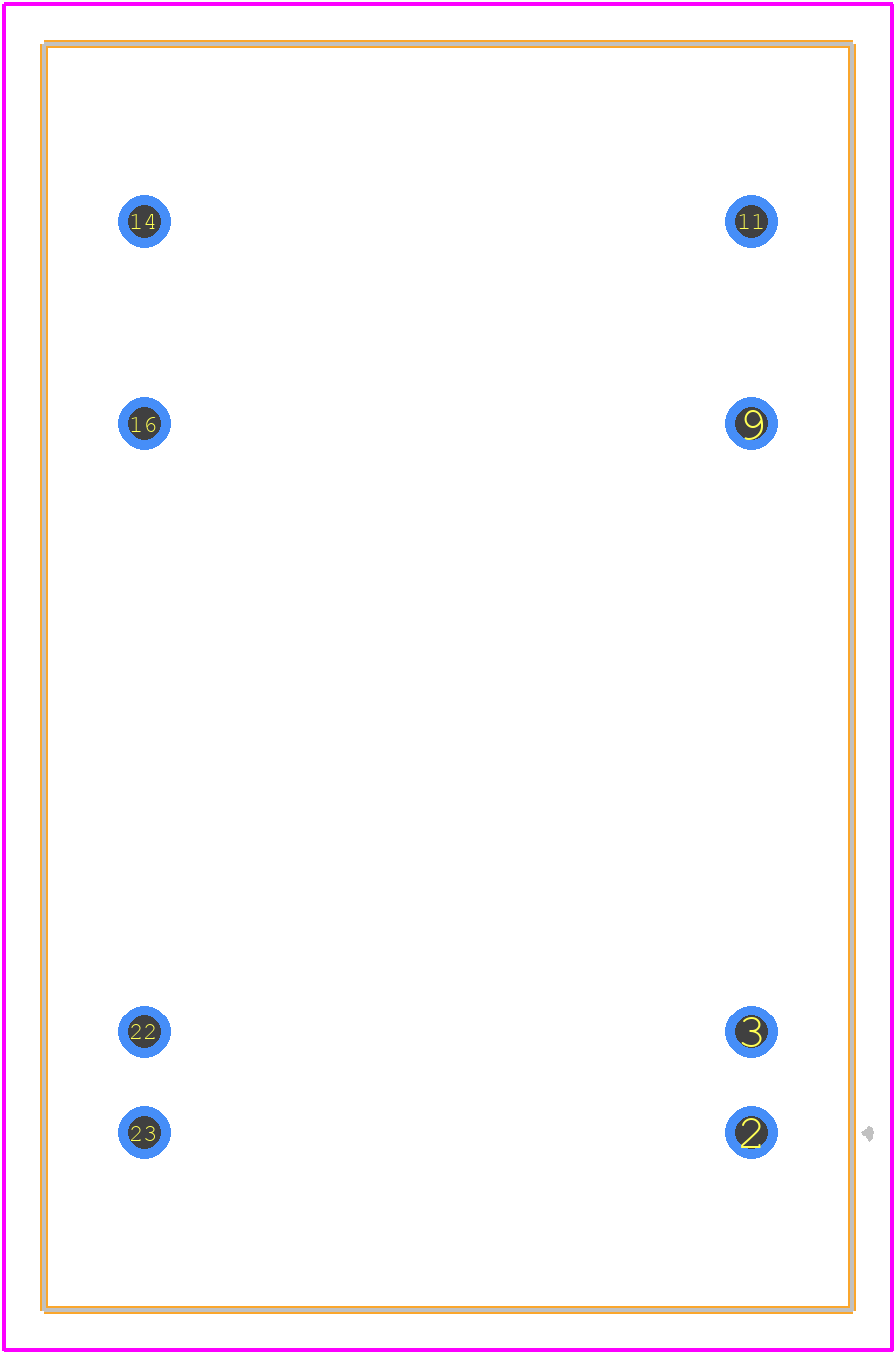

Footprint
-

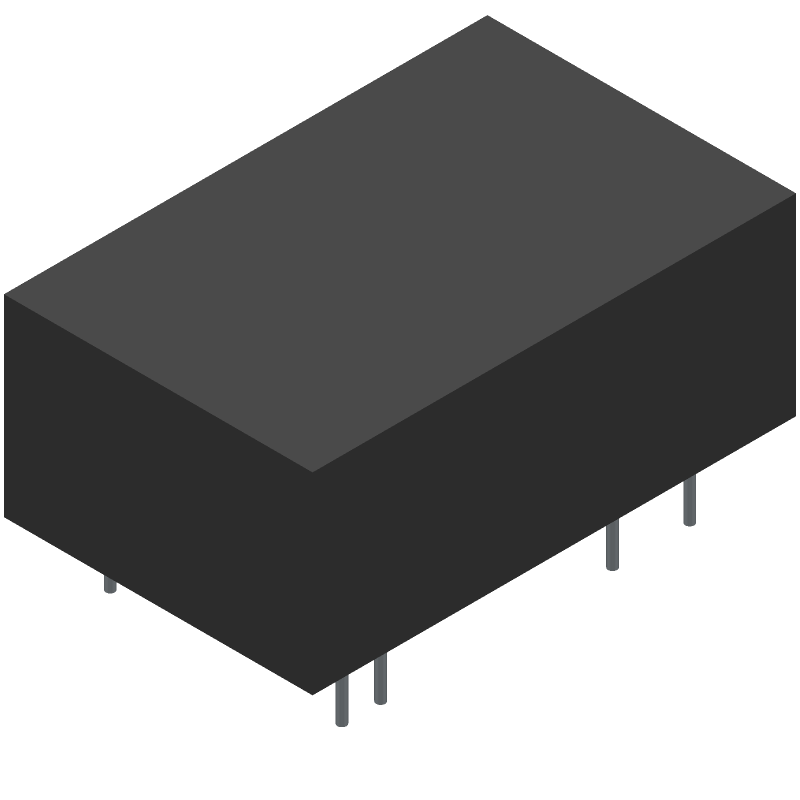

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SCW03B-05 by Mean Well
Results Overview of SCW03B-05 by Mean Well
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SCW03B-05 Information
SCW03B-05 by Mean Well is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for SCW03B-05
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Onlinecomponents.com | Module DC-DC 1-OUT 5V 0.6A 3W 8-Pin RoHS: Compliant | Alternative Product Available |
|
$0 | Buy Now |
Part Details for SCW03B-05
SCW03B-05 CAD Models
SCW03B-05 Part Data Attributes
|
|
SCW03B-05
Mean Well
Buy Now
Datasheet
|
Compare Parts:
SCW03B-05
Mean Well
Analog Circuit
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | MEAN WELL ENTERPRISES CO LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Mean Well | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Approvals | CE, EAC, FCC | |
| Control Mode | VOLTAGE-MODE | |
| Efficiency (Main Output) | 75% | |
| Input Voltage-Max | 36 V | |
| Input Voltage-Min | 18 V | |
| JESD-30 Code | R-MDMA-P8 | |
| Length | 31.8 mm | |
| Line Regulation-Max | 0.5% | |
| Load Regulation-Max | 0.5% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 71 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.6 A | |
| Output Voltage-Max | 5.1 V | |
| Output Voltage-Min | 4.9 V | |
| Output Voltage-Nom | 5 V | |
| Package Body Material | METAL | |
| Package Code | DMA | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Protections | OVER LOAD; SHORT CIRCUIT | |
| Ripple Voltage (Main Out) | 0.01767 Vrms | |
| Seated Height-Max | 12.7 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | OTHER | |
| Terminal Form | PIN/PEG | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Total Power Output-Max | 3 W | |
| Trim/Adjustable Output | NO | |
| Width | 20.3 mm |
SCW03B-05 Frequently Asked Questions (FAQ)
-
The maximum ambient temperature for the SCW03B-05 is 70°C, with a derating of 2.5% per °C above 40°C.
-
Yes, the SCW03B-05 is designed to operate in humid environments, but it's recommended to take precautions to prevent moisture ingress, such as conformal coating or potting.
-
The SCW03B-05 requires a minimum load of 10% to maintain regulation, but it's recommended to operate with a minimum load of 20% for optimal performance.
-
Yes, you can parallel multiple SCW03B-05 modules, but it's recommended to use a master-slave configuration and ensure that the modules are identical and from the same batch.
-
The MTBF of the SCW03B-05 is approximately 550,000 hours, calculated according to MIL-HDBK-217F.
