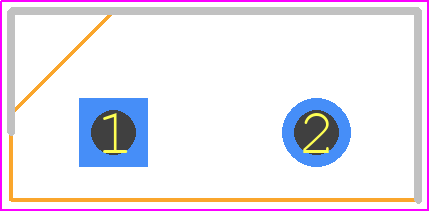

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SCS208AMC by ROHM Semiconductor
Results Overview of SCS208AMC by ROHM Semiconductor
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SCS208AMC Information
SCS208AMC by ROHM Semiconductor is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SCS208AMC
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
755-SCS208AMC
|
Mouser Electronics | SiC Schottky Diodes SiC, SBD 650V 8A TO-220FM RoHS: Compliant | 0 |
|
Order Now | |
|
DISTI #
SCS208AMC
|
TME | Diode: Schottky rectifying, SiC, THT, 650V, 8A, TO220FP-2, 34W, tube Min Qty: 1 | 0 |
|
$2.8800 / $4.0300 | RFQ |
|
DISTI #
SCS208AMC
|
Avnet Silica | SiC Schottky 650V 8A 2Pin TO220FM Tube (Alt: SCS208AMC) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 15 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Vyrian | Diodes | 5 |
|
RFQ |
Part Details for SCS208AMC
SCS208AMC CAD Models
SCS208AMC Part Data Attributes
|
|
SCS208AMC
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
SCS208AMC
ROHM Semiconductor
Rectifier Diode, Schottky, 1 Phase, 1 Element, 8A, 650V V(RRM), Silicon Carbide, TO-220AC, TO-220FM, 3/2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ROHM CO LTD | |
| Package Description | TO-220FM, 3/2 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 24 Weeks | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Application | GENERAL PURPOSE | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON CARBIDE | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.55 V | |
| JEDEC-95 Code | TO-220AC | |
| JESD-30 Code | R-PSFM-T2 | |
| Non-rep Pk Forward Current-Max | 25 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Output Current-Max | 8 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Power Dissipation-Max | 34 W | |
| Rep Pk Reverse Voltage-Max | 650 V | |
| Reverse Current-Max | 160 µA | |
| Surface Mount | NO | |
| Technology | SCHOTTKY | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
SCS208AMC Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the SCS208AMC is 2.7V to 5.5V.
-
To ensure the stability of the output voltage, it is recommended to use a ceramic capacitor with a capacitance of 1uF or more between the VOUT and GND pins, and to keep the output capacitor close to the VOUT pin.
-
The maximum output current of the SCS208AMC is 200mA.
-
The output voltage of the SCS208AMC can be adjusted by connecting a resistor divider network between the VOUT and ADJ pins, and adjusting the resistance ratio to achieve the desired output voltage.
-
The thermal shutdown temperature of the SCS208AMC is typically 150°C.
