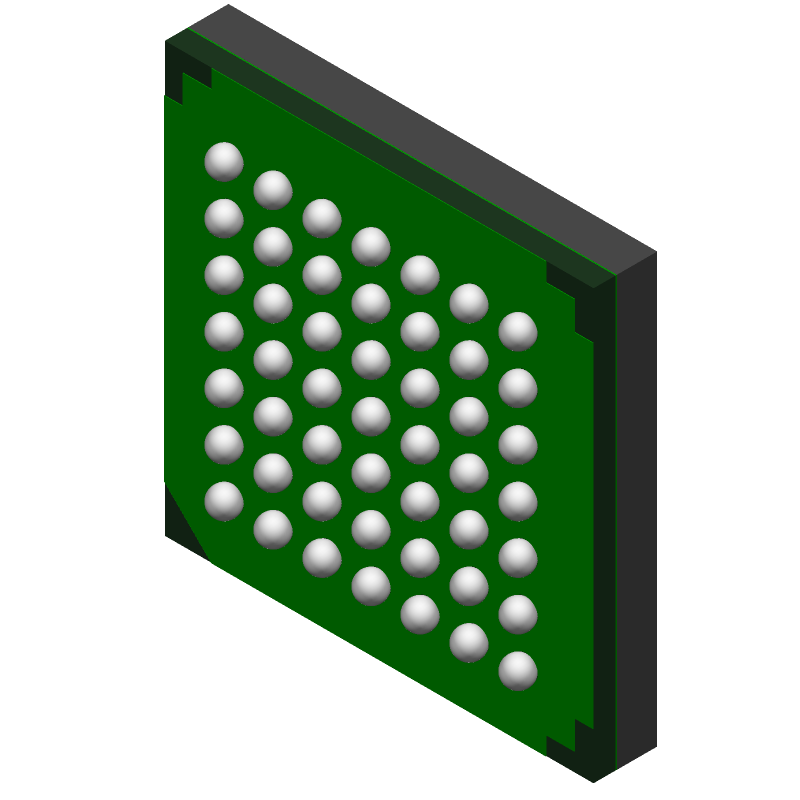

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SCAN921023SLC by Texas Instruments
Results Overview of SCAN921023SLC by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Industrial Automation
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Electronic Manufacturing
Automotive
SCAN921023SLC Information
SCAN921023SLC by Texas Instruments is an Other Interface IC.
Other Interface ICs are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for SCAN921023SLC
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-SCAN921023SLC-ND
|
DigiKey | IC SERIALIZER 10BIT 49FBGA Min Qty: 34 Lead time: 18 Weeks Container: Bulk MARKETPLACE PRODUCT |
2912 In Stock |
|
$9.0800 | Buy Now |
|
DISTI #
SCAN921023SLC-ND
|
DigiKey | IC SERIALIZER 10BIT 49FBGA Min Qty: 34 Lead time: 18 Weeks Container: Tray | Limited Supply - Call |
|
$10.6522 | Buy Now |
|
DISTI #
926-SCAN921023SLC
|
Mouser Electronics | LVDS Interface IC 20 to 66-MHz 10-bit serializer with IEEE A 926-SCAN921023SLCNPB RoHS: Not Compliant | 0 |
|
Order Now | |
|
|
Rochester Electronics | SCAN921023 20 MHz-66MHz 10-Bit Serializer with IEEE 1149.1 Test Access RoHS: Not Compliant Status: Not Recommended for New Designs Min Qty: 1 | 2912 |
|
$6.9800 / $8.7300 | Buy Now |
Part Details for SCAN921023SLC
SCAN921023SLC CAD Models
SCAN921023SLC Part Data Attributes
|
|
SCAN921023SLC
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SCAN921023SLC
Texas Instruments
20 to 66-MHz 10-bit serializer with IEEE 1149.1 test access 49-NFBGA -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | No | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | BGA | |
| Package Description | BGA-49 | |
| Pin Count | 49 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | 5A991.B.1 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Interface IC Type | INTERFACE CIRCUIT | |
| JESD-30 Code | S-PBGA-B49 | |
| JESD-609 Code | e0 | |
| Length | 7 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 49 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFBGA | |
| Package Equivalence Code | BGA49,7X7,32 | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 235 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.5 mm | |
| Supply Current-Max | 90 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 20 | |
| Width | 7 mm |
