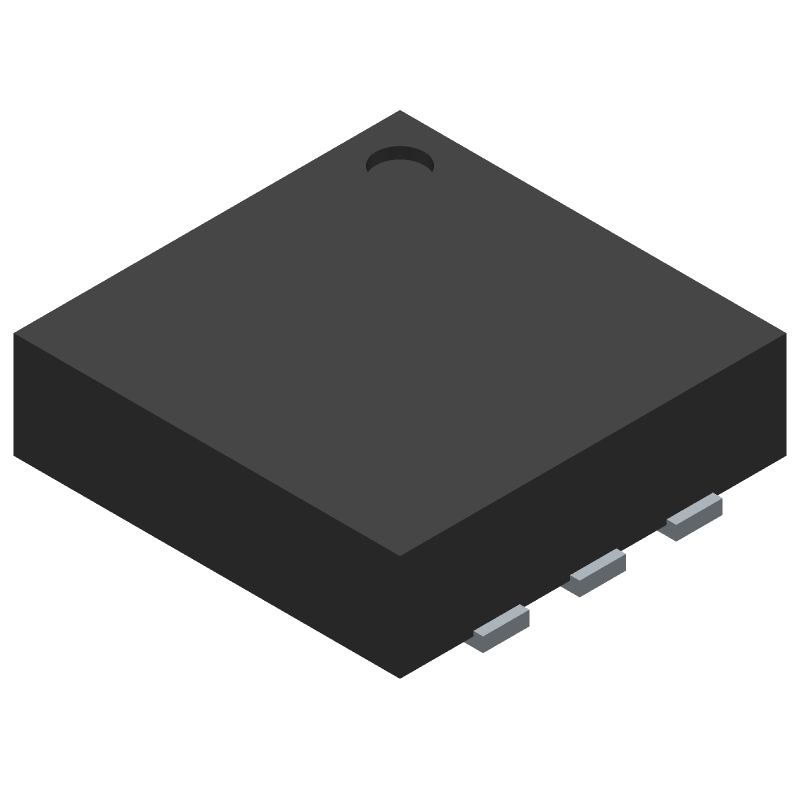

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SC810ULTRT by Semtech Corporation
Results Overview of SC810ULTRT by Semtech Corporation
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
SC810ULTRT Information
SC810ULTRT by Semtech Corporation is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for SC810ULTRT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
13P7859
|
Newark | Ic, battery Management, llcc,6Pin, plastic |Semtech SC810ULTRT RoHS: Not Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.7890 / $0.8940 | Buy Now |
|
DISTI #
SC810ULCT-ND
|
DigiKey | IC BATT CHG LI-ION 1CELL 6MLP Min Qty: 1 Lead time: 7 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
19 In Stock |
|
$0.7250 / $2.6400 | Buy Now |
|
DISTI #
947-SC810ULTRT
|
Mouser Electronics | Battery Management SNGL INPUT/MODE LI BATT CHRGR RoHS: Compliant | 927 |
|
$0.7610 / $2.6400 | Buy Now |
|
|
Rochester Electronics | Battery Charger IC Lithium Ion 4.2V 6-SON T/R RoHS: Compliant Status: Not Recommended for New Designs Min Qty: 1 | 3000 |
|
$0.6090 / $0.9823 | Buy Now |
|
DISTI #
SC810ULTRT
|
Richardson RFPD | VOLTAGE REGULATOR RoHS: Not Compliant Min Qty: 1 | 0 |
|
RFQ | |
|
DISTI #
SC810ULTRT
|
Avnet Silica | Battery Charger LiIon 1000mA 6Pin MLPDUT EP TR (Alt: SC810ULTRT) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 9 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for SC810ULTRT
SC810ULTRT CAD Models
SC810ULTRT Part Data Attributes
|
|
SC810ULTRT
Semtech Corporation
Buy Now
Datasheet
|
Compare Parts:
SC810ULTRT
Semtech Corporation
Power Supply Support Circuit, Adjustable, 1 Channel, PDSO6, 2 X 2 MM, 0.60 MM HEIGHT, HALOGEN FREE AND ROHS COMPLIANT, MLPD-6
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | SEMTECH CORP | |
| Part Package Code | SOIC | |
| Package Description | 2 X 2 MM, 0.60 MM HEIGHT, HALOGEN FREE AND ROHS COMPLIANT, MLPD-6 | |
| Pin Count | 6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | SEMTECH | |
| Adjustable Threshold | YES | |
| Analog IC - Other Type | POWER SUPPLY SUPPORT CIRCUIT | |
| JESD-30 Code | S-PDSO-N6 | |
| JESD-609 Code | e3 | |
| Length | 2 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC6,.08,20 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.6 mm | |
| Supply Voltage-Max (Vsup) | 8.2 V | |
| Supply Voltage-Min (Vsup) | 4.6 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Width | 2 mm |
Alternate Parts for SC810ULTRT
This table gives cross-reference parts and alternative options found for SC810ULTRT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SC810ULTRT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TPS2511DGNR | Texas Instruments | $0.5639 | USB dedicated charging port controller and 2.2A power switch 8-HVSSOP -40 to 125 | SC810ULTRT vs TPS2511DGNR |
| BQ25100AYFPR | Texas Instruments | $0.9401 | Standalone 1-cell, 250-mA linear battery charger with 4.3-V charge voltage and prog. pre-charge 6-DSBGA -40 to 85 | SC810ULTRT vs BQ25100AYFPR |
| BQ25100YFPR | Texas Instruments | $0.9401 | Standalone 1-cell, 250-mA linear battery charger with 4.2-V charge voltage and prog. pre-charge 6-DSBGA 0 to 125 | SC810ULTRT vs BQ25100YFPR |
| BQ25100HYFPR | Texas Instruments | $0.9401 | Standalone 1-cell, 250-mA linear battery charger with 4.35-V charge voltage and prog. pre-charge 6-DSBGA 0 to 125 | SC810ULTRT vs BQ25100HYFPR |
| BQ25100BYFPR | Texas Instruments | $1.0373 | Standalone 1-cell, 250-mA linear battery charger with 4.284-V charge voltage and prog. pre-charge 6-DSBGA -5 to 125 | SC810ULTRT vs BQ25100BYFPR |
| BQ25100AYFPT | Texas Instruments | $1.0569 | Standalone 1-cell, 250-mA linear battery charger with 4.3-V charge voltage and prog. pre-charge 6-DSBGA -40 to 85 | SC810ULTRT vs BQ25100AYFPT |
| TPS2511DGN | Texas Instruments | $1.1934 | USB dedicated charging port controller and 2.2A power switch 8-HVSSOP -40 to 125 | SC810ULTRT vs TPS2511DGN |
| BQ25100HYFPT | Texas Instruments | $1.1938 | Standalone 1-cell, 250-mA linear battery charger with 4.35-V charge voltage and prog. pre-charge 6-DSBGA 0 to 125 | SC810ULTRT vs BQ25100HYFPT |
| BQ25100YFPT | Texas Instruments | $1.6830 | Standalone 1-cell, 250-mA linear battery charger with 4.2-V charge voltage and prog. pre-charge 6-DSBGA 0 to 125 | SC810ULTRT vs BQ25100YFPT |
| BQ25100BYFPT | Texas Instruments | $1.7573 | Standalone 1-cell, 250-mA linear battery charger with 4.284-V charge voltage and prog. pre-charge 6-DSBGA -5 to 125 | SC810ULTRT vs BQ25100BYFPT |
SC810ULTRT Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use a 50-ohm impedance-controlled line to the antenna.
-
Implement frequency hopping, use a high-quality antenna, and consider using a shield around the module to reduce electromagnetic interference (EMI).
-
The maximum transmission power is +20 dBm (100 mW) for the 868 MHz and 915 MHz frequency bands, and +14 dBm (25 mW) for the 433 MHz frequency band.
-
Use the low-power mode (LPM) by setting the LPM pin high, and adjust the transmission power and data rate to minimize power consumption. Additionally, consider using a low-power microcontroller and optimizing the system's sleep modes.
-
A quarter-wave monopole antenna or a dipole antenna is recommended. Place the antenna at least 10 mm away from the PCB edge and ensure it is perpendicular to the PCB to minimize detuning effects.
