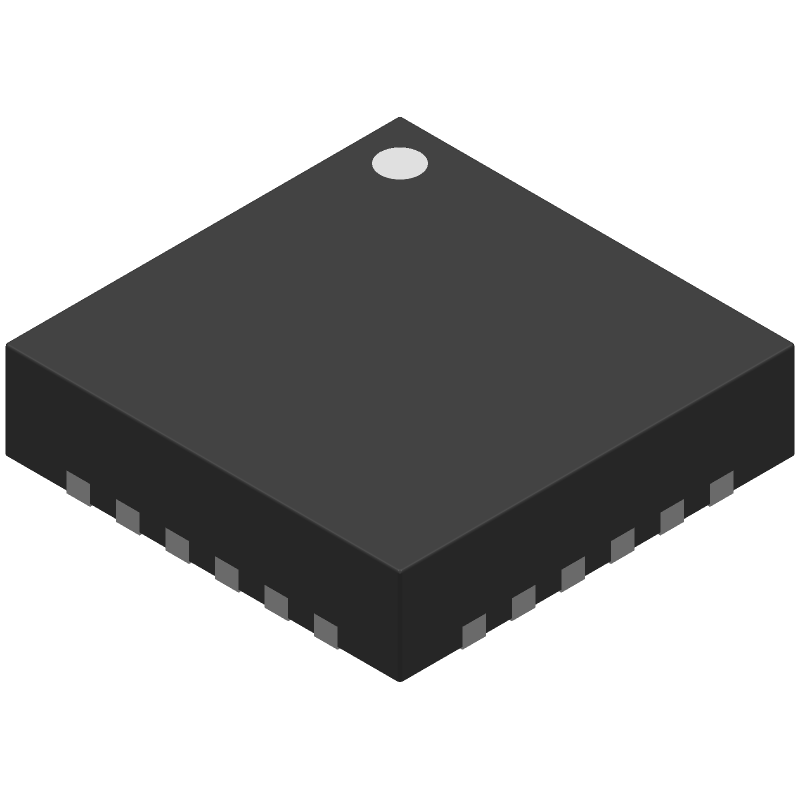

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SC16IS750IBS by NXP Semiconductors
Results Overview of SC16IS750IBS by NXP Semiconductors
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
SC16IS750IBS Information
SC16IS750IBS by NXP Semiconductors is a Serial IO/Communication Controller.
Serial IO/Communication Controllers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for SC16IS750IBS
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 86 |
|
RFQ | ||
|
|
Bristol Electronics | 32 |
|
RFQ | ||
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ | |
|
|
Win Source Electronics | Single UART with I2C-bus/SPI interface, 64 bytes of transmit and receive FIFOs, IrDA SIR built-in support | 50225 |
|
$2.5740 / $3.3247 | Buy Now |
Part Details for SC16IS750IBS
SC16IS750IBS CAD Models
SC16IS750IBS Part Data Attributes
|
|
SC16IS750IBS
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
SC16IS750IBS
NXP Semiconductors
IC 1 CHANNEL(S), 5M bps, SERIAL COMM CONTROLLER, PQCC24, 4 X 4 MM, 0.85 MM HEIGHT, PLASTIC, MO-220, SOT616-3, HVQFN-24, Serial IO/Communication Controller
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Part Package Code | QFN | |
| Package Description | 4 X 4 MM, 0.85 MM HEIGHT, PLASTIC, MO-220, SOT616-3, HVQFN-24 | |
| Pin Count | 24 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | NXP | |
| Additional Feature | CAN ALSO OPERATES AT 2.5 V SUPPLY | |
| Address Bus Width | 2 | |
| Boundary Scan | NO | |
| Clock Frequency-Max | 80 MHz | |
| Communication Protocol | ASYNC, BIT | |
| Data Encoding/Decoding Method | NRZ | |
| Data Transfer Rate-Max | 0.625 MBps | |
| External Data Bus Width | ||
| JESD-30 Code | S-PQCC-N24 | |
| JESD-609 Code | e4 | |
| Length | 4 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 1 | |
| Number of Serial I/Os | 1 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC24,.16SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1 mm | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4 mm | |
| uPs/uCs/Peripheral ICs Type | SERIAL IO/COMMUNICATION CONTROLLER, SERIAL |
Alternate Parts for SC16IS750IBS
This table gives cross-reference parts and alternative options found for SC16IS750IBS. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SC16IS750IBS, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SC16IS750IBS | Philips Semiconductors | Check for Price | Serial I/O Controller, PQCC24 | SC16IS750IBS vs SC16IS750IBS |
| 935279271151 | NXP Semiconductors | Check for Price | 1 CHANNEL(S), 5Mbps, SERIAL COMM CONTROLLER, PQCC24, 4 X 4 MM, 0.85 MM HEIGHT, PLASTIC, MO-220, SOT616-3, HVQFN-24 | SC16IS750IBS vs 935279271151 |
SC16IS750IBS Frequently Asked Questions (FAQ)
-
The maximum frequency of the clock input (SCL) for I2C mode is 400 kHz, but it can be up to 1 MHz in Fast-mode Plus.
-
The SC16IS750IBS has built-in flow control using RTS and CTS signals. The RTS signal is used to control the flow of data from the transmitter, and the CTS signal is used to control the flow of data to the receiver.
-
The SC16IS750IBS supports baud rates up to 5 Mbps in UART mode.
-
Yes, the SC16IS750IBS can be used as a UART-to-I2C bridge. It can convert UART data to I2C and vice versa.
-
To configure the SC16IS750IBS for I2C mode, you need to set the M1 and M0 bits in the LCR register to '11'. You also need to set the I2C slave address using the I2AS register.
