SBC8-470-372 Information
SBC8-470-372 by KEMET Corporation is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for SBC8-470-372
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
66AH0300
|
Newark | Inductor, 47Uh, 10%, 3.7A, Radial Rohs Compliant: Yes |Kemet SBC8-470-372 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$1.5100 / $2.9200 | Buy Now |
|
DISTI #
399-18965-ND
|
DigiKey | FIXED IND 47UH 3.7A 40 MOHM TH Min Qty: 1 Lead time: 33 Weeks Container: Bulk |
623 In Stock |
|
$1.1695 / $2.2700 | Buy Now |
|
DISTI #
SBC8-470-372
|
TME | Inductor: ferrite, 47uH, 5.1A, 40mΩ, ±10%, 10kHz Min Qty: 1 | 27 |
|
$1.3300 / $2.5200 | Buy Now |
|
DISTI #
SBC8-470-372
|
Avnet Abacus | (Alt: SBC8-470-372) RoHS: Compliant Min Qty: 900 Package Multiple: 900 Lead time: 34 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for SBC8-470-372

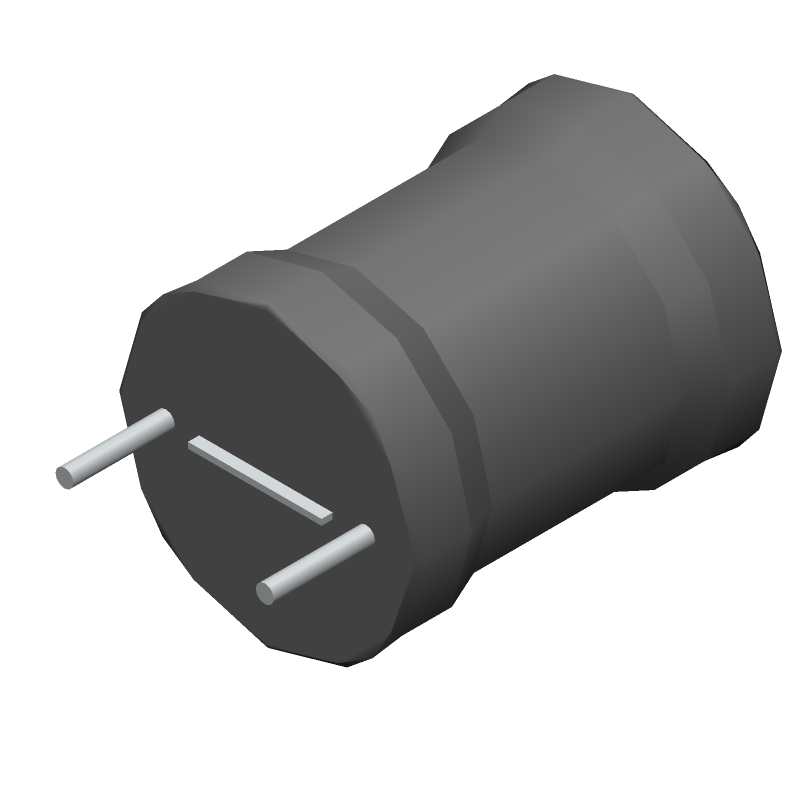

SBC8-470-372 CAD Models
SBC8-470-372 Part Data Attributes
|
|
SBC8-470-372
KEMET Corporation
Buy Now
Datasheet
|
Compare Parts:
SBC8-470-372
KEMET Corporation
General Purpose Inductor, 47uH, 10%, Ferrite-Core,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KEMET ELECTRONICS CORP | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Samacsys Manufacturer | KEMET | |
| Construction | Cylindrical | |
| Core Material | FERRITE | |
| DC Resistance | 0.04 Ω | |
| Inductance-Nom (L) | 47 µH | |
| Inductor Application | POWER INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| Lead Diameter | 0.9 mm | |
| Lead Length | 3.5 mm | |
| Lead Spacing | 10 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -20 °C | |
| Package Diameter | 15 mm | |
| Package Length | 19 mm | |
| Package Style | Radial | |
| Packing Method | Tray | |
| Rated Current-Max | 3.7 A | |
| Shape/Size Description | CYLINDRICAL PACKAGE | |
| Shielded | NO | |
| Surface Mount | NO | |
| Terminal Placement | RADIAL | |
| Terminal Shape | WIRE | |
| Test Frequency | 0.01 MHz | |
| Tolerance | 10% |
