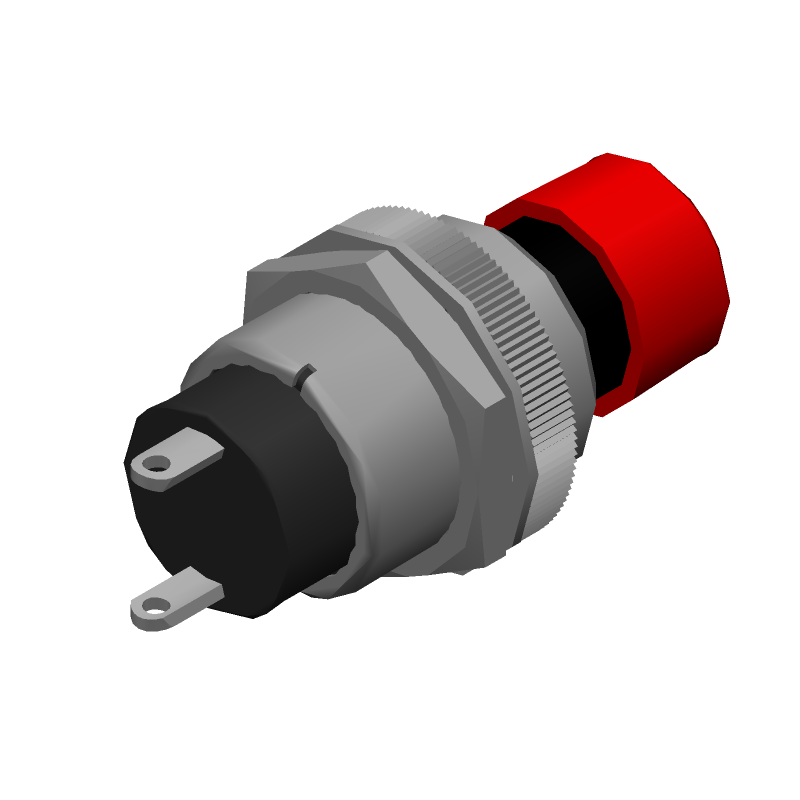

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SB4011NOM-2C by NKK Switches
Results Overview of SB4011NOM-2C by NKK Switches
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SB4011NOM-2C Information
SB4011NOM-2C by NKK Switches is a Pushbutton Switch.
Pushbutton Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for SB4011NOM-2C
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
10X9039
|
Newark | Pb Sw, Spst-No, 3A, 125Vac, Panel, Red, Product Range:Sb Series, Panel Cutout Diameter:12.5Mm, Contact Configuration:Spst-No, Switch Operation:Off-(On), Pushbutton Actuator Style:Round, Actuator/Cap Colour:Red, Ip Rating:- Rohs Compliant: Yes |Nkk Switches SB4011NOM-2C RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$9.0600 / $15.9300 | Buy Now |
|
DISTI #
3937-SB4011NOM-2C-ND
|
DigiKey | SWITCH PUSH SPST-NO 3A 125V Min Qty: 1 Lead time: 22 Weeks Container: Bulk MARKETPLACE PRODUCT |
30 In Stock |
|
$8.4182 / $12.4500 | Buy Now |
|
DISTI #
360-3370-ND
|
DigiKey | SWITCH PUSH SPST-NO 3A 125V Min Qty: 1 Lead time: 22 Weeks Container: Bulk |
23 In Stock |
|
$6.6302 / $10.3300 | Buy Now |
|
DISTI #
71052360
|
RS | Switch, Pushbutton, SPST-NO, OFF-(ON),Metric, Blk Plunger W/Red Cap,3A,125VAC, Sldr Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks, 0 Days Container: Bulk | 10 |
|
$9.3400 / $10.8600 | Buy Now |
|
DISTI #
SB4011NOM-2C
|
TTI | Pushbutton Switches Series SB40 3 AMP, Momentary Min Qty: 1 Package Multiple: 1 Container: Bulk |
Americas - 50 In Stock |
|
$7.1300 / $9.2100 | Buy Now |
Part Details for SB4011NOM-2C
SB4011NOM-2C CAD Models
SB4011NOM-2C Part Data Attributes
|
|
SB4011NOM-2C
NKK Switches
Buy Now
Datasheet
|
Compare Parts:
SB4011NOM-2C
NKK Switches
3 AMP Momentary Pushbutton; Poles: SPST-NO; Circuits: Off-Mom; Current Rating: 3A (AC), 2A (DC); Rating (AC): 125V; Rating (DC): 30V; Actuator Type: Round, Button; Actuator Cap Color: Red; Mounting Type: Panel Mount, Rear; Termination Style: Solder Lug; Features: Epoxy Sealed Terminals; panel cutout dimensions: Circular - 12.50mm Dia; Rating: 3; Illumination: Non-Illuminated
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NKK SWITCHES CO LTD | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.70.00 | |
| Schedule B Code | 8536.50.70.00 | |
| Samacsys Description | SWITCH PUSH SPST-NO 3A 125V | |
| Samacsys Manufacturer | NKK Switches | |
| Samacsys Modified On | 2025-01-16 03:56:01 | |
| Category CO2 Kg | 5.2 | |
| EU RoHS Version | RoHS 2 (2015/863/EU) | |
| EU RoHS Exemptions | 6(c) | |
| Candidate List Date | 2023-06-14 | |
| SVHC Over MCV | 7439-92-1 | |
| Conflict Mineral Status | DRC Conflict Free | |
| Conflict Mineral Status Source | CMRT V6.31 | |
| Illumination | NON-ILLUMINATED | |
| Switch Type | PUSHBUTTON SWITCH |
SB4011NOM-2C Frequently Asked Questions (FAQ)
-
The operating temperature range of the SB4011NOM-2C switch is -20°C to 85°C.
-
Yes, the SB4011NOM-2C switch is designed for high-reliability applications and meets the requirements of MIL-PRF-39012.
-
The contact resistance of the SB4011NOM-2C switch is typically less than 10 milliohms.
-
Yes, the SB4011NOM-2C switch is designed to operate in harsh environments, including high humidity, vibration, and shock.
-
The expected lifespan of the SB4011NOM-2C switch is typically 1 million cycles or more, depending on the operating conditions.
