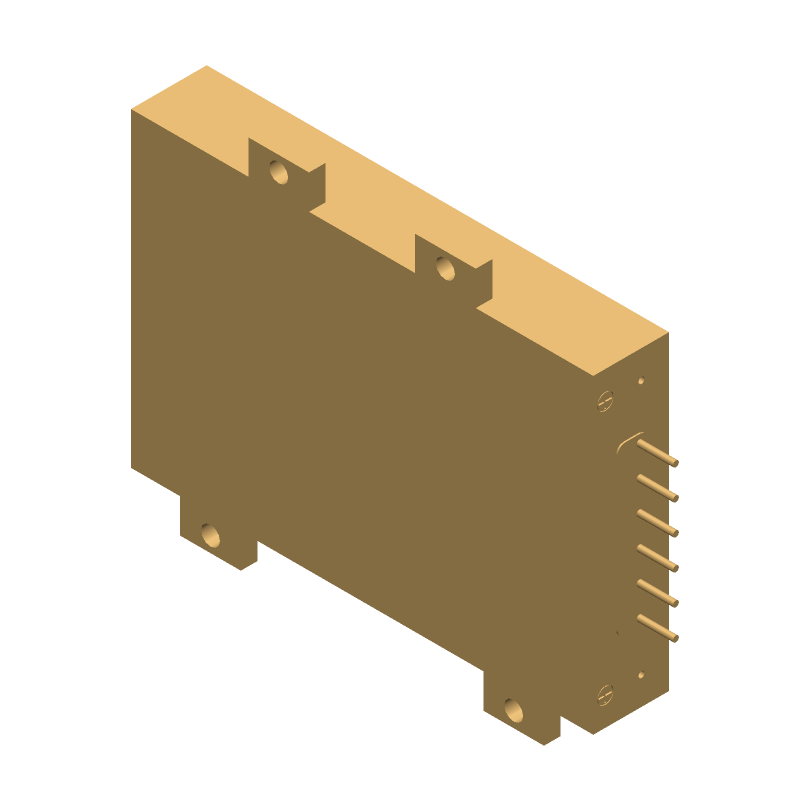

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SA50-28-5S-A-P by Microchip Technology Inc
Results Overview of SA50-28-5S-A-P by Microchip Technology Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Entertainment and Gaming
SA50-28-5S-A-P Information
SA50-28-5S-A-P by Microchip Technology Inc is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TMS320C6413GTSA500 | Texas Instruments | Fixed-Point Digital Signal Processor 288-FCBGA -40 to 105 | |
| TMS320C6418GTSA500 | Texas Instruments | Fixed-Point Digital Signal Processor 288-FCBGA -40 to 105 | |
| TMS320C6418ZTSA500 | Texas Instruments | Fixed-Point Digital Signal Processor 288-FCBGA -40 to 105 |
Price & Stock for SA50-28-5S-A-P
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
SA50-28-5S-A-P
|
Microchip Technology Inc | TOP ASSY, SA50-28-5S-A-P, Projected EOL: 2049-01-23 COO: United States of America ECCN: EAR99 RoHS: Compliant Lead time: 24 Weeks, 0 Days |
0 Alternates Available |
|
$9,759.4600 / $11,939.7600 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$12,321.1900 / $12,508.8200 | Buy Now |
|
|
NAC | SINGLE 28V ISOLATED DC/DC CONVERTER RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Box | 0 |
|
RFQ | |
|
DISTI #
SA50-28-5S-A-P
|
Avnet Silica | (Alt: SA50-28-5S-A-P) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 26 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Master Electronics | RoHS: Compliant | 0 |
|
$12,321.1900 / $12,508.8200 | Buy Now |
Part Details for SA50-28-5S-A-P
SA50-28-5S-A-P CAD Models
SA50-28-5S-A-P Part Data Attributes
|
|
SA50-28-5S-A-P
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
SA50-28-5S-A-P
Microchip Technology Inc
DC-DC Regulated Power Supply Module
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 24 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Efficiency (Main Output) | 81% | |
| Input Voltage-Max | 40 V | |
| Input Voltage-Min | 20 V | |
| Input Voltage-Nom | 28 V | |
| JESD-30 Code | R-XDFM-P12 | |
| Length | 77.47 mm | |
| Line Regulation-Max | 0.0005% | |
| Load Regulation-Max | 1% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 12 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 10 A | |
| Output Voltage-Max | 5.5 V | |
| Output Voltage-Min | 4.5 V | |
| Output Voltage-Nom | 5 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | DFM | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Ripple Voltage (Main Out) | 0.017675 Vrms | |
| Seated Height-Max | 12.7 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Terminal Form | PIN/PEG | |
| Terminal Pitch | 5.08 mm | |
| Terminal Position | DUAL | |
| Total Power Output-Max | 50 W | |
| Trim/Adjustable Output | YES | |
| Warm-up Time | 0.01 s | |
| Width | 63.5 mm |
