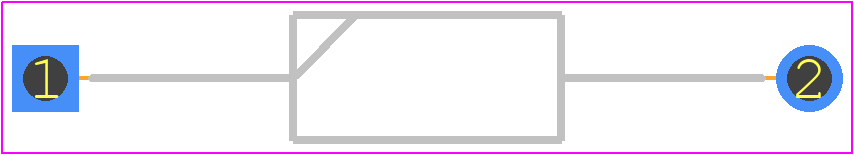

Footprint
-

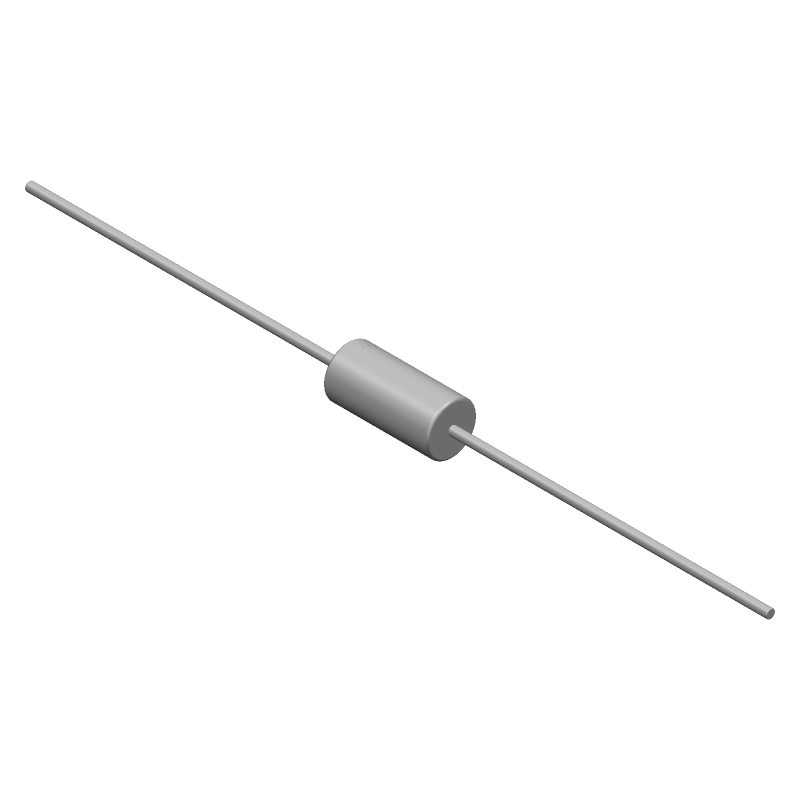

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SA20CA-TP by Micro Commercial Components
Results Overview of SA20CA-TP by Micro Commercial Components
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SA20CA-TP Information
SA20CA-TP by Micro Commercial Components is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SA20CA-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
SA20CA-TPMSCT-ND
|
DigiKey | TVS DIODE 20VWM 32.4VC DO15 Min Qty: 1 Lead time: 99 Weeks Container: Cut Tape (CT), Tape & Reel (TR) |
7679 In Stock |
|
$0.0850 / $0.3700 | Buy Now |
|
DISTI #
833-SA20CA-TP
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes BI-DIR 500W 15.7A RoHS: Compliant | 3970 |
|
$0.0850 / $0.3700 | Buy Now |
Part Details for SA20CA-TP
SA20CA-TP CAD Models
SA20CA-TP Part Data Attributes
|
|
SA20CA-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
SA20CA-TP
Micro Commercial Components
Trans Voltage Suppressor Diode, 500W, 20V V(RWM), Bidirectional, 1 Element, Silicon, DO-15, ROHS COMPLIANT, PLASTIC PACKAGE-2
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | End Of Life | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Part Package Code | DO-15 | |
| Package Description | ROHS COMPLIANT, PLASTIC PACKAGE-2 | |
| Pin Count | 2 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Samacsys Manufacturer | MCC | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY | |
| Breakdown Voltage-Max | 24.5 V | |
| Breakdown Voltage-Min | 22.2 V | |
| Breakdown Voltage-Nom | 23.35 V | |
| Case Connection | ISOLATED | |
| Clamping Voltage-Max | 32.4 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-15 | |
| JESD-30 Code | O-PALF-W2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 500 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 3 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 20 V | |
| Surface Mount | NO | |
| Technology | AVALANCHE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
SA20CA-TP Frequently Asked Questions (FAQ)
-
The recommended storage temperature range for SA20CA-TP is -40°C to 125°C.
-
Yes, the SA20CA-TP is compatible with lead-free soldering processes, making it suitable for RoHS-compliant designs.
-
The maximum power dissipation of the SA20CA-TP is 500 mW, making it suitable for low-power applications.
-
Yes, the SA20CA-TP is designed for high-reliability applications, with a failure rate of less than 1% per 1,000 hours of operation.
-
Yes, the SA20CA-TP is available in tape and reel packaging, making it suitable for automated assembly and high-volume production.
