S6F Information
S6F by NKK Switches is a Toggle Switch.
Toggle Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for S6F
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
10X9516
|
Newark | Switch, Toggle, Dpdt, 20A, 125Vac, Switch Operation:On-On, Contact Configuration:Dpdt, Illumination:Non Illuminated, Product Range:-, Contact Current Max:20A, Switch Mounting:Panel Mount, Contact Voltage Ac Nom:125V Rohs Compliant: Yes |Nkk Switches S6F RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$15.5700 / $27.4000 | Buy Now |
|
DISTI #
360-1929-ND
|
DigiKey | SWITCH TOGGLE DPDT 20A 125V Min Qty: 1 Lead time: 22 Weeks Container: Bulk |
64 In Stock |
|
$11.8914 / $17.7300 | Buy Now |
|
DISTI #
633-S6F
|
Mouser Electronics | Toggle Switches ON-NONE-ON DPDT QUICK CONNECT RoHS: Compliant | 408 |
|
$11.8900 / $15.2900 | Buy Now |
|
DISTI #
V79:2366_17781787
|
Arrow Electronics | Switch Toggle ON None ON DPDT Round Lever Quick Conn 20A 250VAC 30VDC Panel Mount with Threads Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 1352 | Americas - 1 |
|
$11.0750 / $14.5430 | Buy Now |
|
DISTI #
70192048
|
RS | Switch, Toggle, DPDT, ON-NONE-ON, Non-Illum,17.50mm Actuator,20A,125VAC,.250" QC Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks, 0 Days Container: Bulk | 40 |
|
$12.3700 / $14.9000 | Buy Now |
|
|
Future Electronics | RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 22 Weeks | 0 |
|
$12.8200 | Buy Now |
|
DISTI #
S6F
|
TTI | Toggle Switches ON-NONE-ON DPDT QUICK CONNECT Min Qty: 1 Package Multiple: 1 Container: Bulk |
Americas - 180 In Stock |
|
$11.2900 / $13.8400 | Buy Now |
|
|
Powell Electronics | MEDIUM CAPACITY STANDARD SIZE TOGGLE Min Qty: 1 | 165 |
|
$11.7400 / $17.5200 | Buy Now |
Part Details for S6F

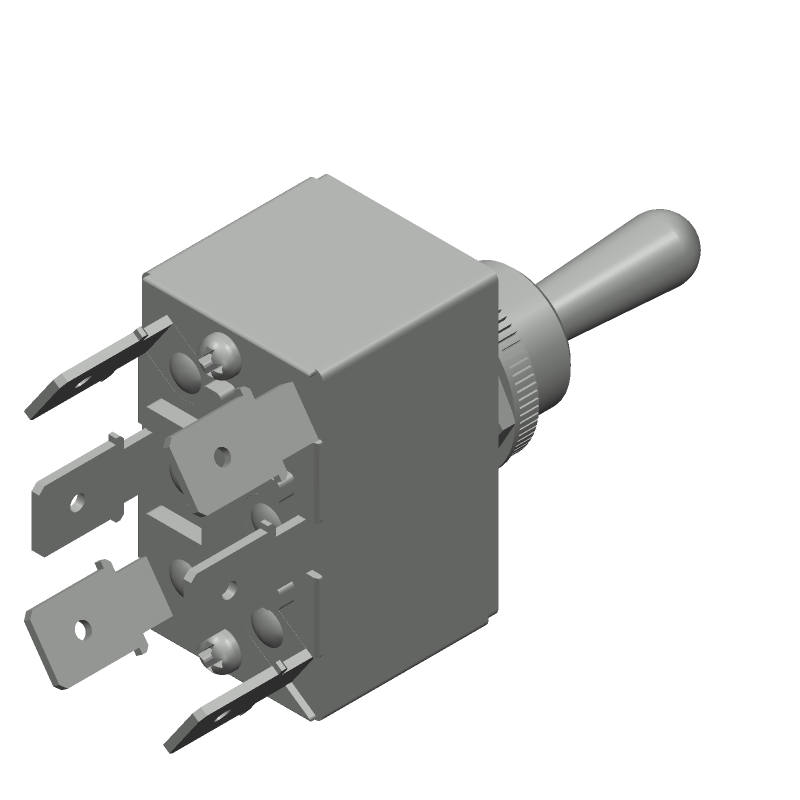

S6F CAD Models
S6F Part Data Attributes
|
|
S6F
NKK Switches
Buy Now
Datasheet
|
Compare Parts:
S6F
NKK Switches
Medium Capacity Standard Size Toggle Switch; Poles: DPDT; Circuits: On-On; Current Rating: 20A (AC/DC); Rating (AC): 125V; Rating (DC): 30V; Actuator Type: Standard Round; actuator length: 17.50mm; Illumination: Non-Illuminated; Mounting Type: Panel Mount; Termination Style: Quick Connect - 0.250" (6.3mm); panel cutout dimensions: Circular - 12.50mm Dia; bushing thread: M12 x 1; Rating: 20
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NKK SWITCHES CO LTD | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.65 | |
| Samacsys Manufacturer | NKK Switches | |
| Actuator Angle | 21 deg | |
| Actuator Finish | CHROME | |
| Actuator Length | 0.689 inch | |
| Actuator Material | BRASS | |
| Actuator Type | TOGGLE BAT | |
| Additional Feature | MEDIUM RATED | |
| Body Breadth | 18.5928 mm | |
| Body Height | 20 mm | |
| Body Length or Diameter | 31.1912 mm | |
| Bushing Diameter | 0.472 inch | |
| Bushing Length | 0.394 inch | |
| Bushing Type | M12P1 | |
| Center Contact Material | SILVER CAPPED COPPER | |
| Center Contact Plating | SILVER | |
| Contact (AC) Max Rating I Load | 8A@125VAC | |
| Contact (AC) Max Rating R Load | 10A@250VAC | |
| Contact Current(AC)-Max | 10 A | |
| Contact Current(DC)-Max | 20 A | |
| Contact (DC) Max Rating R Load | 20A@30VDC | |
| Contact Function | ON-ON | |
| Contact Resistance | 0.01 mΩ | |
| Contact Timing | BREAK-BEFORE-MAKE | |
| Contact Voltage(AC)-Max | 250 V | |
| Contact Voltage(DC)-Max | 30 V | |
| Dielectric Withstand Volts | 2000VAC V | |
| Electrical Life | 25000 Cycle(s) | |
| End Contact Material | SILVER CAPPED COPPER | |
| End Contact Plating | SILVER | |
| Housing Material | PHENOLIC | |
| Illumination | NON-ILLUMINATED | |
| Insulation Resistance | 1000000000 Ω | |
| JESD-609 Code | e3 | |
| Mounting Feature | PANEL MOUNT | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -10 °C | |
| Solderability | HAND | |
| Surface Mount | NO | |
| Switch Action | LATCHED | |
| Switch Function | DPDT | |
| Switch Type | TOGGLE SWITCH | |
| Terminal Finish | TIN | |
| Terminal Material | BRASS | |
| Termination Type | QUICK CONNECT |
