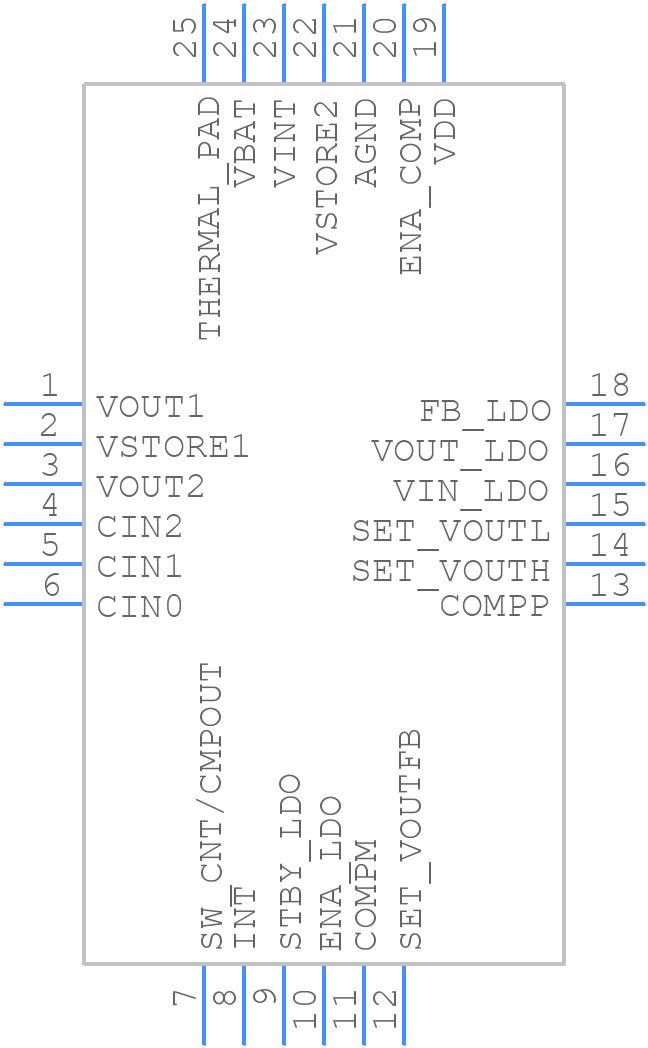

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for S6AE103A0DGN1B000 by Infineon Technologies AG
Results Overview of S6AE103A0DGN1B000 by Infineon Technologies AG
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
S6AE103A0DGN1B000 Information
S6AE103A0DGN1B000 by Infineon Technologies AG is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for S6AE103A0DGN1B000
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
86133834
|
Verical | Energy Harvesting 2V to 5.5V 24-Pin QFN EP T/R RoHS: Compliant Min Qty: 52 Package Multiple: 1 Date Code: 1701 | Americas - 48000 |
|
$5.7750 / $7.2125 | Buy Now |
|
DISTI #
86141370
|
Verical | Energy Harvesting 2V to 5.5V 24-Pin QFN EP T/R RoHS: Compliant Min Qty: 52 Package Multiple: 1 Date Code: 1601 | Americas - 12000 |
|
$5.7750 / $7.2125 | Buy Now |
|
|
Rochester Electronics | S6AE10 - Analog RoHS: Compliant Status: Obsolete Min Qty: 1 | 60000 |
|
$4.6200 / $5.7700 | Buy Now |
|
DISTI #
SP005637735
|
EBV Elektronik | ULTRA LOW POWER ENERGY HARVESTING PMIC (Alt: SP005637735) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for S6AE103A0DGN1B000
S6AE103A0DGN1B000 CAD Models
S6AE103A0DGN1B000 Part Data Attributes
|
|
S6AE103A0DGN1B000
Infineon Technologies AG
Buy Now
Datasheet
|
Compare Parts:
S6AE103A0DGN1B000
Infineon Technologies AG
Power Supply Support Circuit, Adjustable, 3 Channel,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | INFINEON TECHNOLOGIES AG | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | Infineon | |
| Adjustable Threshold | YES | |
| Analog IC - Other Type | POWER SUPPLY SUPPORT CIRCUIT | |
| JESD-30 Code | S-XQCC-N24 | |
| JESD-609 Code | e4 | |
| Length | 4 mm | |
| Number of Channels | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Seated Height-Max | 0.9 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Palladium (Pd) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Width | 4 mm |
