S3MHE3_A/H Information
S3MHE3_A/H by Vishay Intertechnologies is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for S3MHE3_A/H
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
S3MHE3_A/H
|
Avnet Americas | Diode Switching 1KV 3A 2-Pin DO-214AB Plastic T/R - Tape and Reel (Alt: S3MHE3_A/H) RoHS: Compliant Min Qty: 1700 Package Multiple: 850 Lead time: 5 Weeks, 0 Days Container: Reel | 0 |
|
$0.1325 / $0.1352 | Buy Now |
|
DISTI #
625-S3MHE3-A/H
|
Mouser Electronics | Rectifiers 3A 1000V RoHS: Compliant | 0 |
|
$0.1380 / $0.5500 | Order Now |
|
|
Bristol Electronics | 3113 |
|
RFQ | ||
|
|
Chip 1 Exchange | INSTOCK | 64090 |
|
RFQ | |
|
DISTI #
S3MHE3_A/H
|
EBV Elektronik | Diode Switching 1KV 3A 2Pin DO214AB Plastic TR (Alt: S3MHE3_A/H) RoHS: Compliant Min Qty: 850 Package Multiple: 850 Lead time: 6 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Wuhan P&S | 1000V,3A,general purpose Rectifier Min Qty: 1 | 49300 |
|
$0.1200 / $0.4800 | Buy Now |
Part Details for S3MHE3_A/H

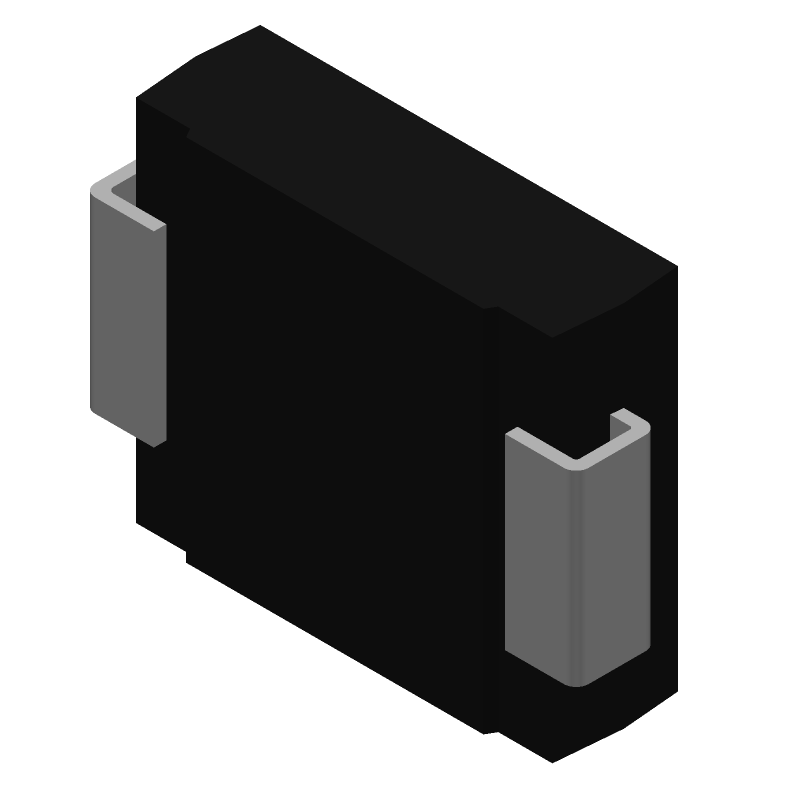

S3MHE3_A/H CAD Models
S3MHE3_A/H Part Data Attributes
|
|
S3MHE3_A/H
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
S3MHE3_A/H
Vishay Intertechnologies
Rectifier Diode, 1 Phase, 1 Element, 3A, 1000V V(RRM), Silicon, DO-214AB, SMC, 2 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | SMC, 2 PIN | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 5 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | FREE WHEELING DIODE, LOW LEAKAGE CURRENT | |
| Application | GENERAL PURPOSE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.15 V | |
| JEDEC-95 Code | DO-214AB | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 100 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 3 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Reference Standard | AEC-Q101 | |
| Rep Pk Reverse Voltage-Max | 1000 V | |
| Reverse Current-Max | 10 µA | |
| Reverse Recovery Time-Max | 2.5 µs | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
