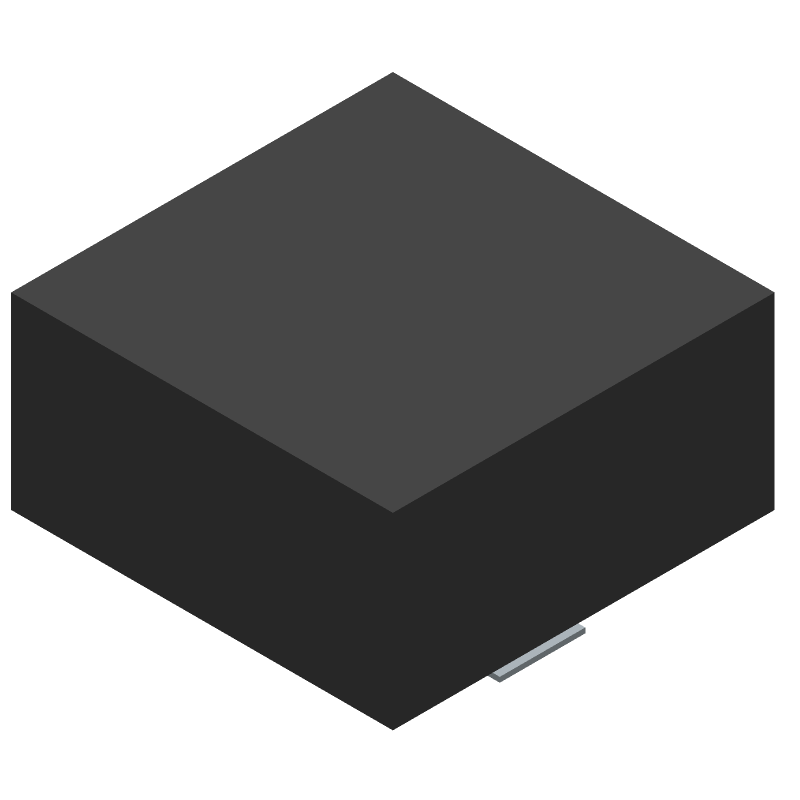

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for S3B-ZR-SM4A-TF by JST Manufacturing
Results Overview of S3B-ZR-SM4A-TF by JST Manufacturing
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Space Technology
Aerospace and Defense
Energy and Power Systems
Renewable Energy
S3B-ZR-SM4A-TF Information
S3B-ZR-SM4A-TF by JST Manufacturing is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for S3B-ZR-SM4A-TF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
455-S3B-ZR-SM4A-TFCT-ND
|
DigiKey | CONN HEADER SMD R/A 3POS 1.5MM Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
16737 In Stock |
|
$0.2763 / $0.5400 | Buy Now |
|
|
Bristol Electronics | 605 |
|
RFQ | ||
|
DISTI #
S3B-ZR-SM4A-TF
|
TME | Connector: wire-board, socket, male, ZH, 1.5mm, PIN: 3, SMT, 50V, 1A Min Qty: 1 | 824 |
|
$0.1500 / $0.2800 | Buy Now |
|
DISTI #
S3B-ZR-SM4A-TF
|
Maritex | Header for PCB, pitch 1.50mm, 3-contacts, SMD, male, side entry, 50V/1A Min Qty: 1 Package Multiple: 1 | 900 |
|
$0.1800 / $0.3310 | Buy Now |
Part Details for S3B-ZR-SM4A-TF
S3B-ZR-SM4A-TF CAD Models
S3B-ZR-SM4A-TF Part Data Attributes
|
|
S3B-ZR-SM4A-TF
JST Manufacturing
Buy Now
Datasheet
|
Compare Parts:
S3B-ZR-SM4A-TF
JST Manufacturing
Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal,
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | J S T MFG CO LTD | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | JST (JAPAN SOLDERLESS TERMINALS) | |
| Board Mounting Option | PEG | |
| Body Breadth | 0.146 inch | |
| Body Depth | 0.256 inch | |
| Body Length | 0.295 inch | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | NOT SPECIFIED | |
| Contact Finish Termination | Tin/Lead (Sn/Pb) | |
| Contact Gender | MALE | |
| Contact Material | NOT SPECIFIED | |
| Contact Pattern | RECTANGULAR | |
| Contact Resistance | 20 mΩ | |
| Contact Style | SQ PIN-SKT | |
| DIN Conformance | NO | |
| Dielectric Withstanding Voltage | 500VAC V | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insulation Resistance | 500000000 Ω | |
| Insulator Color | IVORY | |
| Insulator Material | POLYAMIDE6T | |
| JESD-609 Code | e0 | |
| MIL Conformance | NO | |
| Mating Contact Pitch | 0.059 inch | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | RIGHT ANGLE | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 1 | |
| Number of Rows Loaded | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -25 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| Rated Current (Signal) | 1 A | |
| Reference Standard | CSA; UL | |
| Terminal Pitch | 1.5 mm | |
| Termination Type | SURFACE MOUNT | |
| Total Number of Contacts | 3 | |
| UL Flammability Code | 94V-0 |
Alternate Parts for S3B-ZR-SM4A-TF
This table gives cross-reference parts and alternative options found for S3B-ZR-SM4A-TF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of S3B-ZR-SM4A-TF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 648103131822 | Wurth Elektronik | $0.9279 | 1.50mm SMT Male Horizontal Shrouded Header WR-WTB | S3B-ZR-SM4A-TF vs 648103131822 |
| 15SH-A-03-TR-SMT-T/R | Adam Technologies Inc | Check for Price | Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.059 inch Pitch, Surface Mount Terminal, Locking, Ivory Insulator, Receptacle, | S3B-ZR-SM4A-TF vs 15SH-A-03-TR-SMT-T/R |
S3B-ZR-SM4A-TF Frequently Asked Questions (FAQ)
-
The recommended torque for the screw terminals is 0.5-1.0 N·m (4.4-8.8 lbf·in).
-
Yes, the S3B-ZR-SM4A-TF is designed to withstand vibrations and is suitable for use in high-vibration environments.
-
The operating temperature range for the S3B-ZR-SM4A-TF is -25°C to 85°C (-13°F to 185°F).
-
Yes, the S3B-ZR-SM4A-TF is designed for outdoor use and can withstand exposure to moisture and humidity.
-
The maximum current rating for each pin is 3A.
