Switches / Toggle Switches / S331R
Datasheets
S331R by:

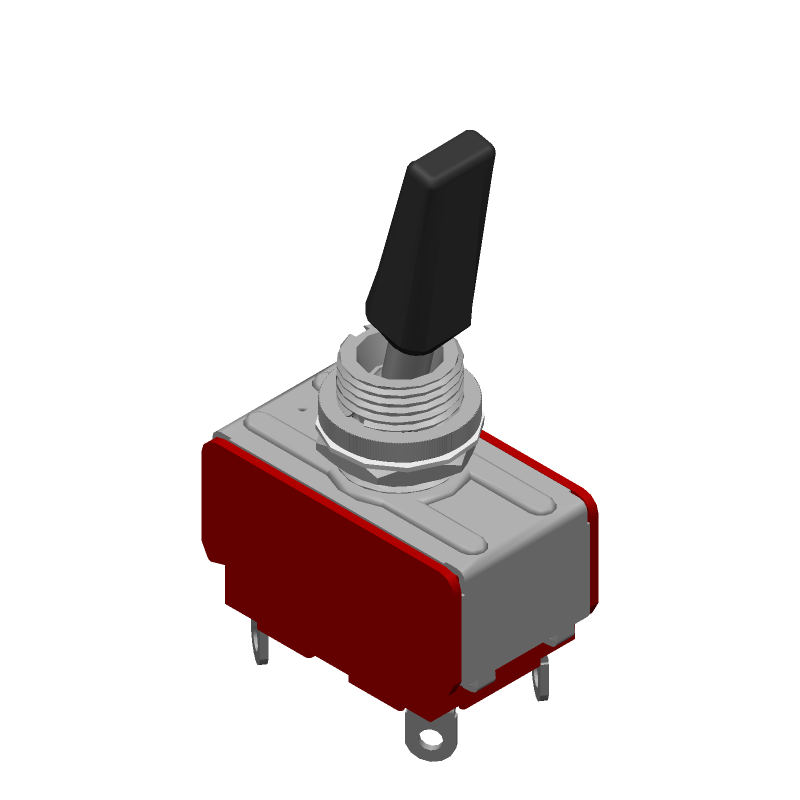

Toggle Switch, DPST, On-off, Horizontal, 25A, 30VDC, Solder Lug Terminal, Locking Lever Actuator, Panel Mount,

Part Details for S331R by NKK Switches

Results Overview of S331R by NKK Switches

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

S331R Information

S331R by NKK Switches is a Toggle Switch.
Toggle Switches are under the broader part category of Switches.

Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.

Price & Stock for S331R

Part # Distributor Description Stock Price Buy
DISTI # 10X9441
Newark Switch, Toggle, Dpst, 25A, 250Vac, Switch Operation:On-Off, Contact Configuration:Dpst, Illumination:Non Illuminated, Product Range:-, Contact Current Max:25A, Switch Mounting:Panel Mount, Contact Voltage Ac Nom:250V Rohs Compliant: Yes |Nkk Switches S331R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $27.4600
  • 5 $26.1000
  • 10 $24.2200
  • 25 $22.1300
  • 50 $19.2100
  • 100 $17.9600
  • 250 $16.3900
$16.3900 / $27.4600 Buy Now
DISTI # 360-2900-ND
DigiKey SWITCH TOGGLE DPST 20A 125V Min Qty: 1 Lead time: 22 Weeks Container: Bulk 29
In Stock
  • 1 $18.2600
  • 10 $15.7540
  • 25 $14.8540
  • 50 $14.2060
  • 100 $13.5853
  • 250 $12.8045
  • 500 $12.2425
$12.2425 / $18.2600 Buy Now
DISTI # 633-S331R
Mouser Electronics Toggle Switches DPST ON-NONE-OFF SOLDER LUG RoHS: Compliant 6
  • 1 $16.2900
  • 10 $14.8100
  • 25 $13.8600
  • 50 $13.5800
  • 250 $12.8000
  • 500 $12.2400
$12.2400 / $16.2900 Buy Now
DISTI # 70367291
RS Toggle Switch, DPST, ON-NONE-OFF,27.00mm Flatted Black Actuator,20A,125VAC, Solder Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks, 0 Days Container: Bulk 5
  • 1 $16.7800
  • 5 $15.1100
  • 10 $13.9300
$13.9300 / $16.7800 Buy Now
DISTI # S331R
TTI Toggle Switches DPST ON-NONE-OFF SOLDER LUG Min Qty: 1 Package Multiple: 1 Container: Bulk Americas - 50
In Stock
  • 1 $16.0400
  • 5 $15.4300
  • 10 $14.0800
  • 25 $13.8100
  • 50 $13.5300
  • 100 $13.2700
  • 250 $12.6000
$12.6000 / $16.0400 Buy Now
DISTI # S331R
IBS Electronics SWITCH TOGGLE ON NONE OFF DPST FLAT LEVER SOLDER LUG 25A 250VAC 30VDC PANEL MOUNT WITH THREADS Min Qty: 1 Package Multiple: 1 0
  • 1 $18.0830
  • 4 $17.8230
  • 10 $17.6540
  • 25 $17.4720
  • 40 $17.2250
$17.2250 / $18.0830 Buy Now
Powell Electronics MEDIUM CAPACITY STANDARD SIZE TOGGLE Min Qty: 1 27
  • 1 $15.8400
  • 5 $15.0000
  • 10 $14.2600
  • 25 $14.3400
  • 50 $13.7000
$13.7000 / $15.8400 Buy Now

Part Details for S331R

S331R Part Data Attributes

Parametric Data
S331R NKK Switches
Buy Now Datasheet
Compare Parts:
S331R NKK Switches Toggle Switch, DPST, On-off, Horizontal, 25A, 30VDC, Solder Lug Terminal, Locking Lever Actuator, Panel Mount,
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NKK SWITCHES CO LTD
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8536.50.90.65
Samacsys Manufacturer NKK Switches
Actuator Angle 25 deg
Actuator Color BLACK
Actuator Length 1.063 inch
Actuator Material ACRYLONITRILE BUTADIENE STYRENE
Actuator Type LOCKING LEVER
Additional Feature HIGH RATED
Body Breadth 18.9992 mm
Body Length or Diameter 33.1978 mm
Bushing Length 0.472 inch
Bushing Type M12P1
Contact (AC) Max Rating I Load 10A@125VAC
Contact (AC) Max Rating R Load 25A@250VAC
Contact Current(AC)-Max 25 A
Contact Current(DC)-Max 25 A
Contact (DC) Max Rating R Load 25A@30VDC
Contact Function ON-OFF
Contact Resistance 0.01 mΩ
Contact Timing BREAK-BEFORE-MAKE
Contact Voltage(AC)-Max 250 V
Contact Voltage(DC)-Max 30 V
Dielectric Withstand Volts 2000VAC V
Electrical Life 15000 Cycle(s)
Insulation Resistance 1000000000 Ω
JESD-609 Code e3
Mounting Feature PANEL MOUNT
Operating Temperature-Max 70 °C
Operating Temperature-Min -10 °C
Surface Mount NO
Switch Action LATCHED
Switch Function DPST
Switch Type TOGGLE SWITCH
Terminal Finish Tin (Sn)
Termination Type SOLDER

S331R Related Parts

S331R Frequently Asked Questions (FAQ)

  • The recommended operating temperature range for the S331R is -20°C to 70°C, although it can withstand storage temperatures from -40°C to 85°C.

  • Yes, the S331R is designed for high-reliability applications, with a minimum of 10,000 electrical life cycles and a contact resistance of 10mΩ or less.

  • Yes, the S331R is designed to withstand harsh environments, with a sealed construction that resists dust, moisture, and other contaminants. It also has a high level of resistance to vibration, shock, and salt spray.

  • The maximum voltage rating for the S331R is 250V AC, although it can be used with lower voltage applications as well.

  • Yes, the S331R is designed for PCB mounting, with a through-hole termination that allows for easy installation on a printed circuit board.
