S32F Information
S32F by NKK Switches is a Toggle Switch.
Toggle Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TC7S32F | Toshiba Electronic Devices & Storage Corporation | One-Gate Logic(L-MOS), 2-Input/OR, SOT-25 (SMV), -40 to 85 degC | |
| TC7S32FU | Toshiba Electronic Devices & Storage Corporation | One-Gate Logic(L-MOS), 2-Input/OR, SOT-353 (USV), -40 to 85 degC | |
| 26LS32FM/B | Rochester Electronics LLC | 26LS32 - Line Recieiver, Quad Differential, RS-422 and RS-423 |
Price & Stock for S32F
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
10X9426
|
Newark | Switch, Toggle, 3Pdt, 25A, 125Vac, Switch Operation:On-On, Contact Configuration:3Pdt, Illumination:Non Illuminated, Product Range:-, Contact Current Max:25A, Switch Mounting:Panel Mount, Contact Voltage Ac Nom:125V Rohs Compliant: Yes |Nkk Switches S32F RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$20.8200 / $34.8700 | Buy Now |
|
DISTI #
360-2086-ND
|
DigiKey | SWITCH TOGGLE 3PDT 20A 125V Min Qty: 1 Lead time: 22 Weeks Container: Bulk |
472 In Stock |
|
$13.8125 / $18.2200 | Buy Now |
|
DISTI #
633-S32F
|
Mouser Electronics | Toggle Switches 3PDT ON-NONE-ON QUICK CONNECT RoHS: Compliant | 208 |
|
$15.7100 / $18.2200 | Buy Now |
|
|
Quest Components | TOGGLE SWITCH, 3PDT, ON-ON, HORIZONTAL, 20A, 30VDC, QUICK CONNECT TERMINAL, TOGGLE BAT ACTUATOR, PANEL MOUNT | 50 |
|
$16.0000 / $16.6400 | Buy Now |
|
DISTI #
S32F
|
TTI | Toggle Switches 3PDT ON-NONE-ON QUICK CONNECT Min Qty: 1 Package Multiple: 1 Container: Bulk |
Americas - 17 In Stock |
|
$16.7200 / $18.7900 | Buy Now |
|
|
Powell Electronics | MEDIUM CAPACITY STANDARD SIZE TOGGLE Min Qty: 1 | 671 |
|
$15.4000 / $22.9800 | Buy Now |
Part Details for S32F

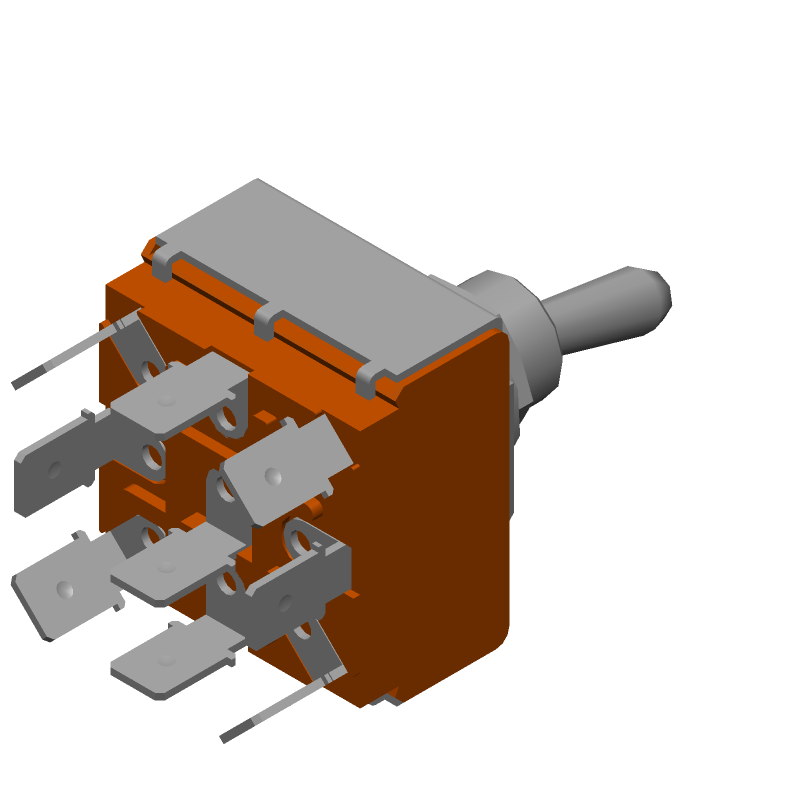

S32F CAD Models
S32F Part Data Attributes
|
|
S32F
NKK Switches
Buy Now
Datasheet
|
Compare Parts:
S32F
NKK Switches
Medium/High Capacity Standard Size Toggle Switch; Poles: 3PDT; Circuits: On-On; Current Rating: 25A (AC), 20A (DC); Rating (AC): 125V; Rating (DC): 30V; Actuator Type: Standard Round; actuator length: 17.50mm; Illumination: Non-Illuminated; Mounting Type: Panel Mount; Termination Style: Quick Connect - 0.250" (6.3mm); panel cutout dimensions: Circular - 12.50mm Dia; bushing thread: M12 x 1; Rating: 25
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NKK SWITCHES CO LTD | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.65 | |
| Samacsys Manufacturer | NKK Switches | |
| Actuator Angle | 25 deg | |
| Actuator Finish | CHROME | |
| Actuator Length | 0.689 inch | |
| Actuator Material | BRASS | |
| Actuator Type | TOGGLE BAT | |
| Additional Feature | MEDIUM & HIGH RATED | |
| Body Breadth | 29.9974 mm | |
| Body Height | 22.3 mm | |
| Body Length or Diameter | 33.8074 mm | |
| Bushing Diameter | 0.472 inch | |
| Bushing Length | 0.472 inch | |
| Bushing Type | M12P1 | |
| Center Contact Material | SILVER CAPPED COPPER | |
| Center Contact Plating | SILVER | |
| Contact (AC) Max Rating I Load | 10A@125VAC | |
| Contact (AC) Max Rating R Load | 9A@250VAC | |
| Contact Current(AC)-Max | 9 A | |
| Contact Current(DC)-Max | 20 A | |
| Contact (DC) Max Rating R Load | 20A@30VDC | |
| Contact Function | ON-ON | |
| Contact Resistance | 0.01 mΩ | |
| Contact Timing | BREAK-BEFORE-MAKE | |
| Contact Voltage(AC)-Max | 250 V | |
| Contact Voltage(DC)-Max | 30 V | |
| Dielectric Withstand Volts | 2000VAC V | |
| Electrical Life | 25000 Cycle(s) | |
| End Contact Material | SILVER CAPPED COPPER | |
| End Contact Plating | SILVER | |
| Housing Material | PHENOLIC | |
| Illumination | NON-ILLUMINATED | |
| Insulation Resistance | 1000000000 Ω | |
| JESD-609 Code | e3 | |
| Mounting Feature | PANEL MOUNT | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -10 °C | |
| Solderability | HAND | |
| Surface Mount | NO | |
| Switch Action | LATCHED | |
| Switch Function | 3PDT | |
| Switch Type | TOGGLE SWITCH | |
| Terminal Finish | TIN | |
| Terminal Material | BRASS | |
| Termination Type | QUICK CONNECT |
