Switches / Toggle Switches / S301
Datasheets
S301 by:

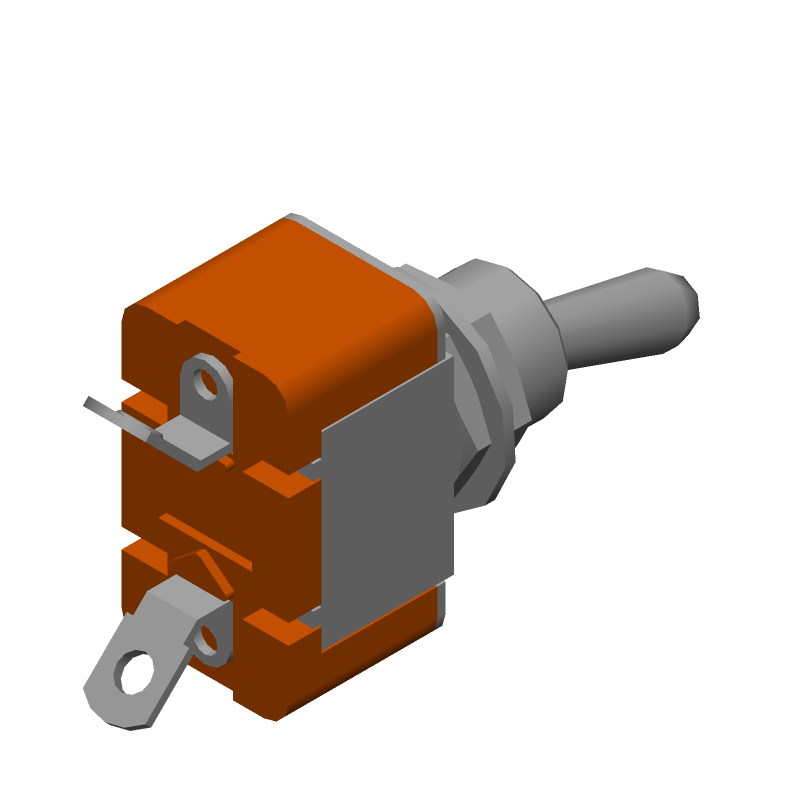

Toggle Switch, SPST, On-off, Horizontal, 20A, 30VDC, Solder Lug Terminal, Toggle Bat Actuator, Panel Mount,

Part Details for S301 by NKK Switches

Results Overview of S301 by NKK Switches

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

S301 Information

S301 by NKK Switches is a Toggle Switch.
Toggle Switches are under the broader part category of Switches.

Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
54202-S3014LF Amphenol Communications Solutions BergStik®, Board to Board connector, Unshrouded Vertical Header, Surface Mount, Double Row, 28 Positions, 2.54 mm (0.100in) Pitch.
54202-S3013LF Amphenol Communications Solutions BergStik®, Board to Board connector, Unshrouded Vertical Header, Surface Mount, Double Row, 26 Positions, 2.54 mm (0.100in) Pitch.
54202-S3016LF Amphenol Communications Solutions BergStik®, Board to Board connector, Unshrouded Vertical Header, Surface Mount, Double Row, 32 Positions, 2.54 mm (0.100in) Pitch.

Price & Stock for S301

Part # Distributor Description Stock Price Buy
DISTI # 10X9395
Newark Switch, Toggle, Spst, 20A, 250Vac, Switch Operation:On-Off, Contact Configuration:Spst, Illumination:Non Illuminated, Product Range:-, Contact Current Max:20A, Switch Mounting:Panel Mount, Contact Voltage Ac Nom:250V Rohs Compliant: Yes |Nkk Switches S301 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 97
  • 1 $7.4800
  • 10 $6.6100
  • 25 $6.0200
$6.0200 / $7.4800 Buy Now
DISTI # 360-1896-ND
DigiKey SWITCH TOGGLE SPST 15A 125V Min Qty: 1 Lead time: 22 Weeks Container: Bulk 553
In Stock
  • 1 $8.2800
  • 10 $7.1510
  • 25 $6.7428
  • 50 $6.4496
  • 100 $6.1684
  • 250 $5.8148
  • 500 $5.5603
  • 1,000 $5.3165
$5.3165 / $8.2800 Buy Now
DISTI # 633-S301
Mouser Electronics Toggle Switches SPST ON/OFF RoHS: Compliant 438
  • 1 $7.2300
  • 10 $7.1600
  • 25 $6.7500
  • 50 $6.4500
  • 100 $6.1700
  • 250 $5.8200
  • 500 $5.5600
  • 1,000 $5.3100
$5.3100 / $7.2300 Buy Now
DISTI # 70274582
RS Switch, Toggle, SPST, ON-NONE-OFF, Non-Illum,17.50mm Actuator,15A,125VAC, Solder Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks, 0 Days Container: Bulk 92
  • 1 $7.3000
  • 5 $6.5700
  • 10 $6.2800
$6.2800 / $7.3000 Buy Now
Future Electronics   RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 22 Weeks 0
  • 1 $5.6400
$5.6400 Buy Now
DISTI # NKKS301
Heilind Electronics   Americas - 51 in Stock
  • 1 $7.2200
  • 30 $6.0167
  • 69 $6.0167
$6.0167 / $7.2200 Buy Now
DISTI # 87342814
Verical Switch Toggle ON None OFF SPST Round Lever Solder Lug 20A 250VAC 30VDC Panel Mount with Threads Min Qty: 8 Package Multiple: 1 Americas - 12
  • 8 $8.7920
$8.7920 Buy Now
DISTI # 87534447
Verical Switch Toggle ON None OFF SPST Round Lever Solder Lug 20A 250VAC 30VDC Panel Mount with Threads Min Qty: 9 Package Multiple: 1 Americas - 11
  • 9 $6.6500
  • 10 $6.5800
$6.5800 / $6.6500 Buy Now
Quest Components SWITCH, POWER TOGGLE 14
  • 1 $6.7500
  • 2 $4.5000
  • 7 $3.3750
$3.3750 / $6.7500 Buy Now
DISTI # S301
TTI Toggle Switches SPST ON/OFF Min Qty: 1 Package Multiple: 1 Container: Bulk Americas - 18
In Stock
  • 1 $7.2200
  • 5 $6.8900
  • 10 $6.3500
  • 50 $6.1200
  • 100 $5.9700
  • 250 $5.8300
  • 500 $5.7100
$5.7100 / $7.2200 Buy Now
DISTI # S301
TME Switch: toggle, Pos: 2, SPST-NC, ON-OFF, 6A/250VAC, 20A/30VDC, S Min Qty: 1 12
  • 1 $6.4900
  • 50 $6.2300
  • 100 $6.1800
$6.1800 / $6.4900 Buy Now
DISTI # NKKS301
Interstate Connecting Components   17
  • 1 $7.2200
  • 30 $6.0167
  • 69 $6.0167
$6.0167 / $7.2200 Buy Now
Powell Electronics MEDIUM/HIGH CAPACITY STANDARD SIZE TOGGL Min Qty: 1 184
  • 1 $7.7000
  • 250 $6.5100
  • 2,500 $5.1600
$5.1600 / $7.7000 Buy Now

Part Details for S301

S301 Part Data Attributes

Parametric Data
S301 NKK Switches
Buy Now Datasheet
Compare Parts:
S301 NKK Switches Toggle Switch, SPST, On-off, Horizontal, 20A, 30VDC, Solder Lug Terminal, Toggle Bat Actuator, Panel Mount,
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NKK SWITCHES CO LTD
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8536.50.90.65
Samacsys Manufacturer NKK Switches
Actuator Angle 32 deg
Actuator Color CHROME
Actuator Finish CHROME
Actuator Length 0.689 inch
Actuator Material BRASS
Actuator Type BAT TYPE
Additional Feature APPROVALS: CSA; UL
Body Breadth 16 mm
Body Height 17.4 mm
Body Length or Diameter 28.5 mm
Bushing Diameter 0.492 inch
Bushing Length 0.472 inch
Bushing Type M12P1
Center Contact Material SILVER CAPPED COPPER
Center Contact Plating SILVER
Contact (AC) Max Rating I Load 10A@125VAC
Contact (AC) Max Rating R Load 15A@125VAC
Contact Current(AC)-Max 15 A
Contact Current(DC)-Max 20 A
Contact (DC) Max Rating R Load 20A@30VDC
Contact Function ON-OFF
Contact Resistance 0.01 mΩ
Contact Voltage(AC)-Max 125 V
Contact Voltage(DC)-Max 30 V
Dielectric Withstand Volts 2000VAC V
Electrical Life 25000 Cycle(s)
End Contact Material SILVER CAPPED COPPER
End Contact Plating SILVER
Housing Material STEEL
Insulation Resistance 1000000000 Ω
Insulator Material MELAMINE PHENOL
JESD-609 Code e3
Mounting Feature PANEL MOUNT
Operating Temperature-Max 70 °C
Operating Temperature-Min -10 °C
Solderability HAND
Surface Mount NO
Switch Action LATCHED
Switch Function SPST
Switch Type TOGGLE SWITCH
Terminal Finish TIN
Terminal Length 0.378 inch
Termination Type SOLDER

Alternate Parts for S301

This table gives cross-reference parts and alternative options found for S301. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of S301, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
S301-RO NKK Switches Check for Price Toggle Switch, SPST, On-off, Horizontal, 20A, 30VDC, Solder Lug Terminal, Toggle Actuator, Panel Mount S301 vs S301-RO

S301 Related Parts

S301 Frequently Asked Questions (FAQ)

  • The recommended operating temperature range for the S301 switch is -20°C to 85°C.

  • Yes, the S301 switch is designed to withstand high-vibration environments and is suitable for use in applications where vibration is a concern.

  • The maximum switching frequency for the S301 switch is 20 operations per minute.

  • Yes, the S301 switch is designed to be resistant to water and cleaning agents, making it suitable for use in applications where washdown or cleaning procedures are required.

  • The expected lifespan of the S301 switch is 10,000 to 50,000 operations, depending on the specific application and operating conditions.
