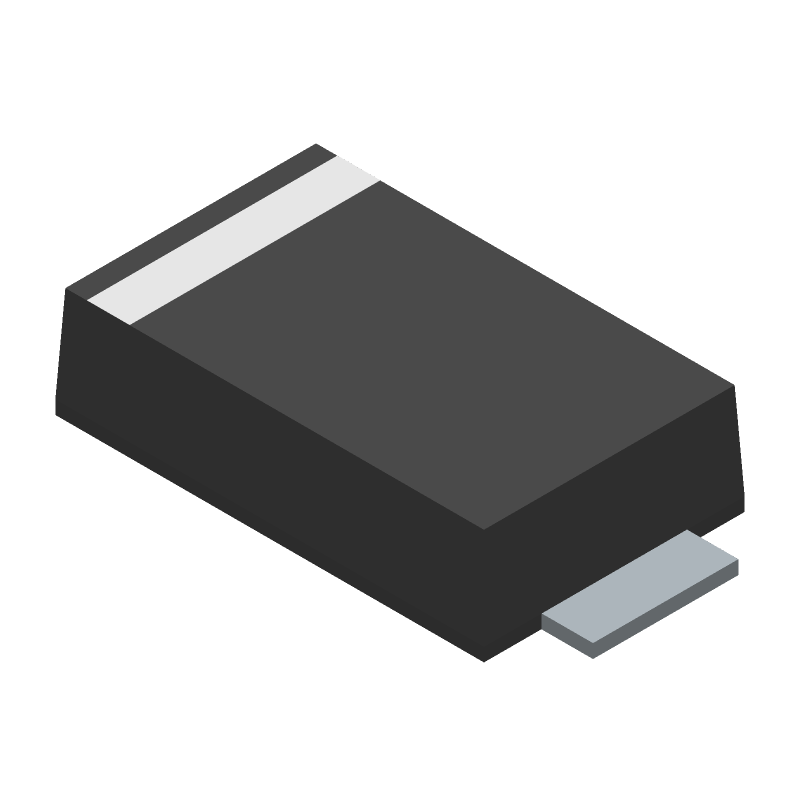

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for S2KDFQ-13 by Diodes Incorporated
Results Overview of S2KDFQ-13 by Diodes Incorporated
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Environmental Monitoring
Internet of Things (IoT)
Smart Cities
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Medical Imaging
Consumer Electronics
Education and Research
Security and Surveillance
Aerospace and Defense
Healthcare
Robotics and Drones
S2KDFQ-13 Information
S2KDFQ-13 by Diodes Incorporated is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for S2KDFQ-13
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
29AK8370
|
Newark | Rectifier, 800V, 2A, D-Flat Rohs Compliant: Yes |Diodes Inc. S2KDFQ-13 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 4705 |
|
$0.1310 | Buy Now |
|
DISTI #
31-S2KDFQ-13CT-ND
|
DigiKey | DIODE STANDARD 800V 2A DFLAT Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3808 In Stock |
|
$0.0788 / $0.3600 | Buy Now |
|
DISTI #
S2KDFQ-13
|
Avnet Americas | 2.0A SURFACE MOUNT GLASS PASSIVATED RECTIFIER - Tape and Reel (Alt: S2KDFQ-13) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 12 Weeks, 0 Days Container: Reel | 2370000 Factory Stock |
|
$0.0681 / $0.0692 | Buy Now |
|
DISTI #
621-S2KDFQ-13
|
Mouser Electronics | Rectifiers Standard Recovery Rectifier RoHS: Compliant | 207322 |
|
$0.0780 / $0.3600 | Buy Now |
|
DISTI #
P40:2555_23840445
|
Arrow Electronics | Diode Switching 800V 2A 2-Pin D-FLAT T/R Automotive AEC-Q101 Min Qty: 1307 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2312 | Europe - 40000 |
|
$0.0622 / $0.0865 | Buy Now |
|
DISTI #
E02:0323_10204591
|
Arrow Electronics | Diode Switching 800V 2A 2-Pin D-FLAT T/R Automotive AEC-Q101 Min Qty: 10000 Package Multiple: 10000 Lead time: 8 Weeks Date Code: 2316 | Europe - 40000 |
|
$0.0655 / $0.0738 | Buy Now |
|
DISTI #
S2KDFQ-13
|
TME | Diode: rectifying, SMD, 800V, 2A, D-FLAT, Ufmax: 1.15V, reel,tape Min Qty: 1 | 0 |
|
$0.0780 / $0.6160 | RFQ |
|
DISTI #
S2KDFQ-13
|
Avnet Silica | 20A SURFACE MOUNT GLASS PASSIVATED RECTIFIER (Alt: S2KDFQ-13) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 10 Weeks, 0 Days | Silica - 10000 |
|
Buy Now | |
|
|
LCSC | SMD Super Barrier Rectifiers (SBR) ROHS | 70 |
|
$0.1118 / $0.1172 | Buy Now |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 10000 | 10000 |
|
RFQ |
Part Details for S2KDFQ-13
S2KDFQ-13 CAD Models
S2KDFQ-13 Part Data Attributes
|
|
S2KDFQ-13
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
S2KDFQ-13
Diodes Incorporated
Rectifier Diode, 1 Phase, 1 Element, 2A, 800V V(RRM), Silicon,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIODES INC | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Diodes Incorporated | |
| Additional Feature | HIGH RELIABILITY | |
| Application | GENERAL PURPOSE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.1 V | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 55 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 2 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Reference Standard | AEC-Q101 | |
| Rep Pk Reverse Voltage-Max | 800 V | |
| Reverse Current-Max | 5 µA | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL |
S2KDFQ-13 Frequently Asked Questions (FAQ)
-
A good PCB layout for the S2KDFQ-13 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
-
To ensure proper biasing, connect the EN pin to a voltage source (e.g., VCC) through a resistor (e.g., 1 kΩ) and a capacitor (e.g., 10 nF) in series. This helps to filter out noise and ensures a clean enable signal.
-
The maximum allowable power dissipation for the S2KDFQ-13 is 1.4 W. Exceeding this limit can cause the device to overheat, leading to reduced performance or even damage.
-
The S2KDFQ-13 is rated for operation up to 125°C. However, it's essential to consider the device's power dissipation and thermal resistance when operating in high-temperature environments to avoid overheating.
-
To troubleshoot issues with the S2KDFQ-13, start by verifying the input voltage, output voltage, and enable signal. Check for proper PCB layout, decoupling, and thermal management. Use an oscilloscope to monitor the device's behavior and identify any anomalies.
