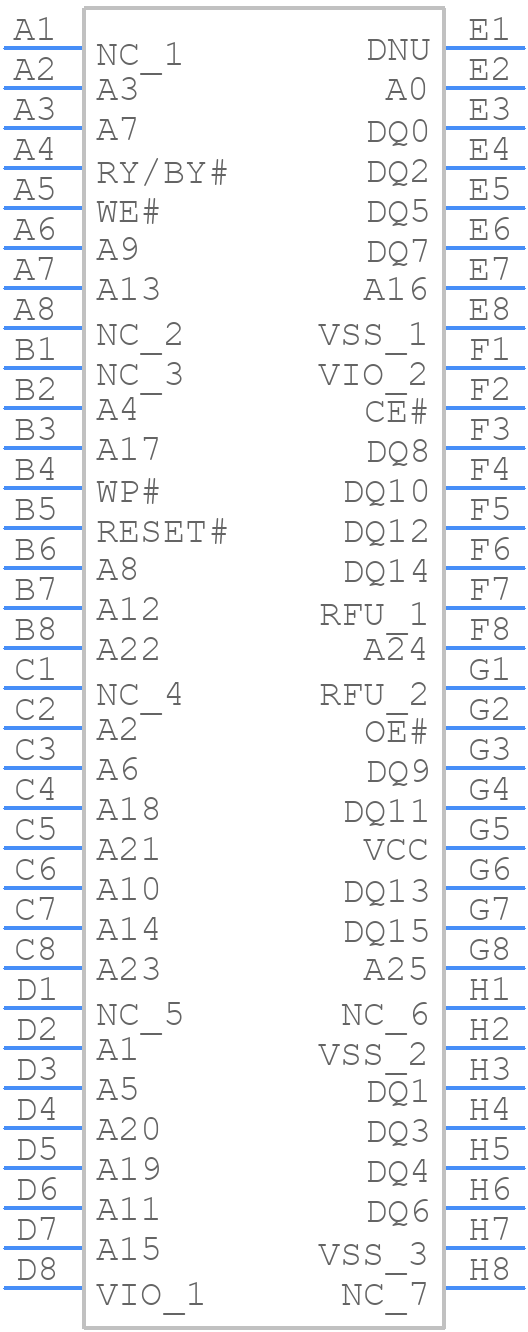

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for S29GL128S90FHI010 by Infineon Technologies AG
Results Overview of S29GL128S90FHI010 by Infineon Technologies AG
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
S29GL128S90FHI010 Information
S29GL128S90FHI010 by Infineon Technologies AG is a Flash Memory.
Flash Memories are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for S29GL128S90FHI010
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
448-S29GL128S90FHI010-ND
|
DigiKey | IC FLASH 128MBIT PARALLEL 64FBGA Min Qty: 1 Lead time: 10 Weeks Container: Tray |
431 In Stock |
|
$4.1381 / $5.2400 | Buy Now |
|
DISTI #
S29GL128S90FHI010
|
Avnet Americas | - Trays (Alt: S29GL128S90FHI010) RoHS: Compliant Min Qty: 360 Package Multiple: 360 Lead time: 10 Weeks, 0 Days Container: Tray | 0 |
|
$3.6855 / $4.0095 | Buy Now |
|
DISTI #
727-S29GL128S90FHI01
|
Mouser Electronics | NOR Flash PNOR RoHS: Compliant | 227 |
|
$3.3700 / $4.0700 | Buy Now |
|
DISTI #
SP005665199
|
EBV Elektronik | (Alt: SP005665199) RoHS: Compliant Min Qty: 360 Package Multiple: 360 Lead time: 11 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for S29GL128S90FHI010
S29GL128S90FHI010 CAD Models
S29GL128S90FHI010 Part Data Attributes
|
|
S29GL128S90FHI010
Infineon Technologies AG
Buy Now
Datasheet
|
Compare Parts:
S29GL128S90FHI010
Infineon Technologies AG
Flash, 16MX8, 90ns, PBGA64,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | INFINEON TECHNOLOGIES AG | |
| Package Description | FBGA-64 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | Infineon | |
| Access Time-Max | 90 ns | |
| Command User Interface | YES | |
| Common Flash Interface | YES | |
| Data Polling | YES | |
| Data Retention Time-Min | 20 | |
| Endurance | 100000 Write/Erase Cycles | |
| JESD-30 Code | R-PBGA-B64 | |
| JESD-609 Code | e1 | |
| Length | 13 mm | |
| Memory Density | 134217728 bit | |
| Memory IC Type | FLASH | |
| Memory Width | 16 | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Sectors/Size | 128 | |
| Number of Terminals | 64 | |
| Number of Words | 8388608 words | |
| Number of Words Code | 8000000 | |
| Operating Mode | ASYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 8MX16 | |
| Output Characteristics | 3-STATE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LBGA | |
| Package Equivalence Code | BGA64,8X8,40 | |
| Package Shape | RECTANGULAR | |
| Package Style | GRID ARRAY, LOW PROFILE | |
| Page Size | 16 words | |
| Parallel/Serial | PARALLEL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Programming Voltage | 3 V | |
| Ready/Busy | YES | |
| Seated Height-Max | 1.4 mm | |
| Sector Size | 64K | |
| Standby Current-Max | 0.0001 A | |
| Supply Current-Max | 0.1 mA | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | BALL | |
| Terminal Pitch | 1 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Toggle Bit | YES | |
| Type | NOR TYPE | |
| Width | 11 mm |
S29GL128S90FHI010 Frequently Asked Questions (FAQ)
-
The S29GL128S90FHI010 has an operating temperature range of -40°C to +85°C.
-
The HOLD# signal should be asserted low to pause the current read or write operation. De-asserting HOLD# resumes the operation from where it was paused.
-
The WP# signal is used to protect the entire memory array or specific sectors from being written or erased. When WP# is asserted low, the corresponding sectors are write-protected.
-
The S29GL128S90FHI010 has a density of 128 Mbits and is organized as 8192K x 16 bits.
-
The typical programming time for the S29GL128S90FHI010 is 10-15 seconds for a full chip erase, and 10-20 microseconds for a byte program operation.
