Memory / Flash Memories / S25FL512SAGMFIG13
Datasheets
S25FL512SAGMFIG13 by:

Flash, 64MX8, PDSO16, SOIC-16

Part Details for S25FL512SAGMFIG13 by Infineon Technologies AG

Results Overview of S25FL512SAGMFIG13 by Infineon Technologies AG

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

S25FL512SAGMFIG13 Information

S25FL512SAGMFIG13 by Infineon Technologies AG is a Flash Memory.
Flash Memories are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for S25FL512SAGMFIG13

Part # Distributor Description Stock Price Buy
DISTI # 87AK1594
Newark Flash Memory, 512Mbit, 85Deg C, Soic-16, Flash Memory Type:Serial Nor, Memory Configuration:64M X 8Bit, Interfaces:Spi, Ic Case/Package:Soic, No. Of Pins:16Pins, Clock Frequency Max:133Mhz, Access Time:-, Supply Voltage Min:2.7V Rohs Compliant: Yes |Infineon S25FL512SAGMFIG13 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 1420
  • 1 $5.8200
  • 10 $5.4100
  • 25 $5.2500
  • 50 $5.1200
  • 100 $5.0000
  • 250 $4.8400
  • 500 $4.7200
$4.7200 / $5.8200 Buy Now
DISTI # 448-S25FL512SAGMFIG13CT-ND
DigiKey IC FLASH 512MBIT SPI/QUAD 16SOIC Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 510
In Stock
  • 1 $6.2800
  • 10 $5.8460
  • 25 $5.6688
  • 50 $5.5350
  • 100 $5.4017
  • 250 $5.2270
  • 500 $5.1408
  • 1,450 $5.0405
$5.0405 / $6.2800 Buy Now
DISTI # S25FL512SAGMFIG13
Avnet Americas NOR Flash Parallel/Serial 3V/3.3V 512Mbit 8ns 16-Pin SOIC T/R - Tape and Reel (Alt: S25FL512SAGMFIG13) RoHS: Compliant Min Qty: 1450 Package Multiple: 1450 Lead time: 12 Weeks, 0 Days Container: Reel 0
  • 1,450 $4.9896
  • 2,900 $4.8887
  • 5,800 $4.7877
  • 8,700 $4.6868
  • 11,600 $4.5864
$4.5864 / $4.9896 Buy Now
DISTI # 797-25FL512SAGMFIG13
Mouser Electronics NOR Flash 512Mb 3V 133MHz Serial NOR Flash RoHS: Compliant 1111
  • 1 $6.2800
  • 10 $5.8500
  • 25 $5.6700
  • 50 $5.5400
  • 100 $5.4100
  • 250 $5.2300
  • 500 $5.1500
  • 1,450 $5.0400
$5.0400 / $6.2800 Buy Now
DISTI # V79:2366_28731809
Arrow Electronics NOR Flash Serial (SPI, Dual SPI, Quad SPI) 3V/3.3V 512M-bit 512M/256M/128M x 1/2-bit/4-bit 14.5ns 16-Pin SOIC W T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2302 Americas - 5300
  • 1 $5.7750
$5.7750 Buy Now
DISTI # 76443116
Verical NOR Flash Serial (SPI, Dual SPI, Quad SPI) 3V/3.3V 512M-bit 512M/256M/128M x 1/2-bit/4-bit 14.5ns 16-Pin SOIC W T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2302 Americas - 5300
  • 1 $5.7750
$5.7750 Buy Now
DISTI # 69265309
Verical NOR Flash Serial (SPI, Dual SPI, Quad SPI) 3V/3.3V 512M-bit 512M/256M/128M x 1/2-bit/4-bit 14.5ns 16-Pin SOIC W T/R RoHS: Compliant Min Qty: 6 Package Multiple: 1 Date Code: 2305 Americas - 1450
  • 6 $5.5400
  • 10 $4.1000
  • 50 $3.8300
  • 100 $3.4000
  • 200 $3.3600
$3.3600 / $5.5400 Buy Now
DISTI # S25FL512SAGMFIG13
Chip One Stop Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape 1450
  • 1 $5.5400
  • 10 $4.1000
  • 50 $3.8300
  • 100 $3.4000
  • 200 $3.3600
$3.3600 / $5.5400 Buy Now
DISTI # SP005659321
EBV Elektronik NOR Flash ParallelSerial 3V33V 512Mbit 8ns 16Pin SOIC TR (Alt: SP005659321) RoHS: Compliant Min Qty: 1450 Package Multiple: 1450 Lead time: 13 Weeks, 0 Days EBV - 0
Buy Now

Part Details for S25FL512SAGMFIG13

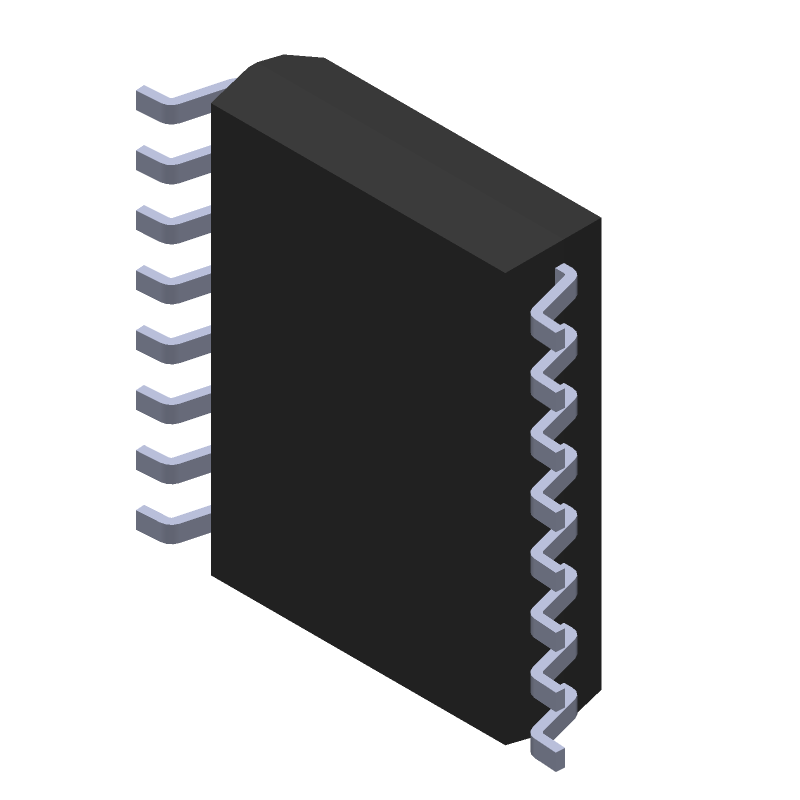

S25FL512SAGMFIG13 CAD Models

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

S25FL512SAGMFIG13 Part Data Attributes

Parametric Data
S25FL512SAGMFIG13 Infineon Technologies AG
Buy Now Datasheet
Compare Parts:
S25FL512SAGMFIG13 Infineon Technologies AG Flash, 64MX8, PDSO16, SOIC-16
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer INFINEON TECHNOLOGIES AG
Package Description SOIC-16
Reach Compliance Code compliant
Factory Lead Time 12 Weeks
Samacsys Manufacturer Infineon
Clock Frequency-Max (fCLK) 133 MHz
Data Retention Time-Min 20
Endurance 100000 Write/Erase Cycles
JESD-30 Code R-PDSO-G16
JESD-609 Code e3
Length 10.3 mm
Memory Density 512753664 bit
Memory IC Type FLASH
Memory Width 8
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 16
Number of Words 64094208 words
Number of Words Code 64000000
Operating Mode SYNCHRONOUS
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Organization 64MX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP16,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial SERIAL
Peak Reflow Temperature (Cel) 260
Programming Voltage 3 V
Qualification Status Not Qualified
Seated Height-Max 2.65 mm
Serial Bus Type SPI
Standby Current-Max 0.0003 A
Supply Current-Max 0.1 mA
Supply Voltage-Max (Vsup) 3.6 V
Supply Voltage-Min (Vsup) 2.7 V
Supply Voltage-Nom (Vsup) 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Type NOR TYPE
Width 7.5 mm
Write Protection HARDWARE/SOFTWARE

Alternate Parts for S25FL512SAGMFIG13

This table gives cross-reference parts and alternative options found for S25FL512SAGMFIG13. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of S25FL512SAGMFIG13, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
S25FL512SAGMFIG11 Infineon Technologies AG $8.5402 Flash, 64MX8, PDSO16, SOIC-16 S25FL512SAGMFIG13 vs S25FL512SAGMFIG11
S25FL512SAGMFIG13 Cypress Semiconductor Check for Price Flash, 128MX4, PDSO16, SOIC-16 S25FL512SAGMFIG13 vs S25FL512SAGMFIG13
S25FL512SAGMFIG10 Spansion Check for Price Flash, 128MX4, PDSO16, SOIC-16 S25FL512SAGMFIG13 vs S25FL512SAGMFIG10
S25FL512SAGMFIG13 Spansion Check for Price Flash, 128MX4, PDSO16, SOIC-16 S25FL512SAGMFIG13 vs S25FL512SAGMFIG13
S25FL512SAGMFIG11 Spansion Check for Price Flash, 128MX4, PDSO16, SOIC-16 S25FL512SAGMFIG13 vs S25FL512SAGMFIG11
Part Number Manufacturer Composite Price Description Compare
S25FL512SAGMFIG11 Cypress Semiconductor Check for Price Flash, 128MX4, PDSO16, SOIC-16 S25FL512SAGMFIG13 vs S25FL512SAGMFIG11
S25FL512SAGMFIG10 Cypress Semiconductor Check for Price Flash, 128MX4, PDSO16, SOIC-16 S25FL512SAGMFIG13 vs S25FL512SAGMFIG10
S25FL512SAGMFM010 Cypress Semiconductor Check for Price Flash, 128MX4, PDSO16, SOP-16 S25FL512SAGMFIG13 vs S25FL512SAGMFM010
S25FL512SDPMFIG13 Cypress Semiconductor Check for Price Flash, 128MX4, PDSO16, SOIC-16 S25FL512SAGMFIG13 vs S25FL512SDPMFIG13
S25FL512SDPMFV010 Infineon Technologies AG Check for Price Flash, 64MX8, PDSO16, SOIC-16 S25FL512SAGMFIG13 vs S25FL512SDPMFV010
S25FL512SAGMFVR13 Infineon Technologies AG Check for Price Flash, 64MX8, PDSO16, SOIC-16 S25FL512SAGMFIG13 vs S25FL512SAGMFVR13
S25FL512SAGMFI011 Spansion Check for Price Flash, 128MX4, PDSO16, SOIC-16 S25FL512SAGMFIG13 vs S25FL512SAGMFI011
S25FL512SAGMFM011 Cypress Semiconductor Check for Price Flash, 128MX4, PDSO16, SOP-16 S25FL512SAGMFIG13 vs S25FL512SAGMFM011
S25FL512SAGMFI013 Cypress Semiconductor Check for Price Flash, 128MX4, PDSO16, SOIC-16 S25FL512SAGMFIG13 vs S25FL512SAGMFI013
S25FL512SAGMFIR11 Spansion Check for Price Flash, 512MX1, PDSO16, 0.300 INCH, LEAD FREE, PLASTIC, MO-013EAA, SOIC-16 S25FL512SAGMFIG13 vs S25FL512SAGMFIR11

S25FL512SAGMFIG13 Related Parts

S25FL512SAGMFIG13 Frequently Asked Questions (FAQ)

  • The maximum operating frequency of the S25FL512SAGMFIG13 is 104 MHz.

  • The S25FL512SAGMFIG13 can endure up to 100,000 program/erase cycles before it starts to degrade.

  • The S25FL512SAGMFIG13 has a data retention period of at least 20 years at a temperature of 25°C.

  • Yes, the S25FL512SAGMFIG13 is compatible with the SPI protocol, as well as other protocols such as Dual SPI and Quad SPI.

  • The S25FL512SAGMFIG13 comes in a 24-ball BGA package.
