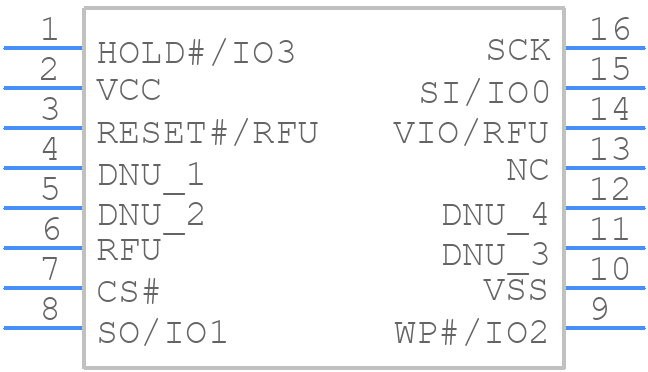

Part Symbol
-
Footprint
-

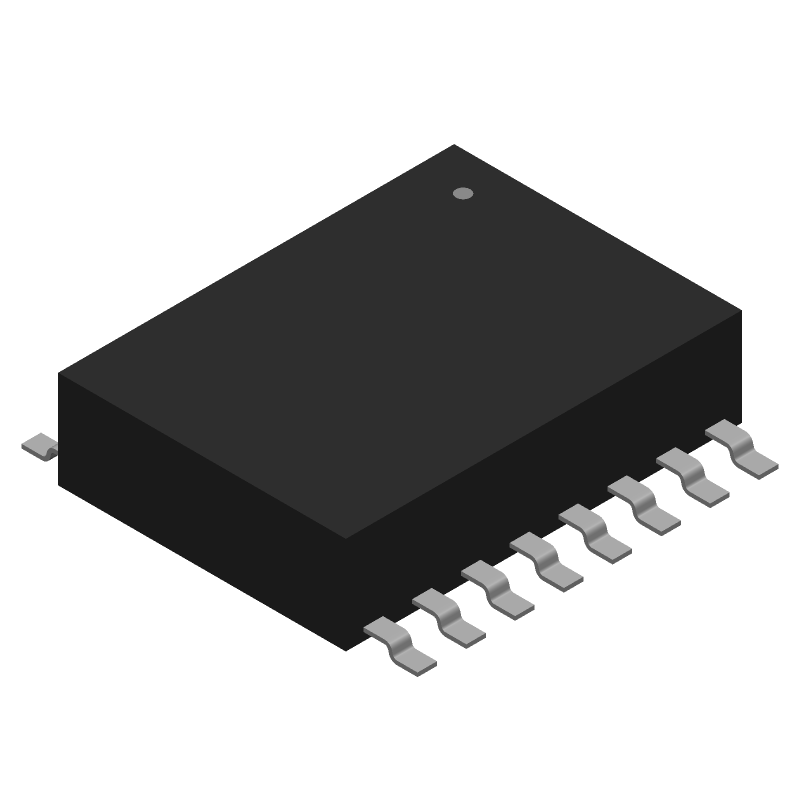

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for S25FL256SAGMFIG03 by Infineon Technologies AG
Results Overview of S25FL256SAGMFIG03 by Infineon Technologies AG
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
S25FL256SAGMFIG03 Information
S25FL256SAGMFIG03 by Infineon Technologies AG is a Flash Memory.
Flash Memories are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for S25FL256SAGMFIG03
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
448-S25FL256SAGMFIG03CT-ND
|
DigiKey | IC FLASH 256MBIT SPI/QUAD 16SOIC Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
6504 In Stock |
|
$2.6125 / $3.9700 | Buy Now |
|
DISTI #
S25FL256SAGMFIG03
|
Avnet Americas | NOR Flash Serial-SPI 3V 256Mbit 256M x 1bit 8ns 16-Pin SOIC T/R - Tape and Reel (Alt: S25FL256SAGMFIG03) RoHS: Compliant Min Qty: 171 Package Multiple: 1 Lead time: 0 Weeks, 2 Days Container: Reel | 338 Partner Stock |
|
$3.6420 / $3.8764 | Buy Now |
|
DISTI #
S25FL256SAGMFIG03
|
Avnet Americas | NOR Flash Serial-SPI 3V 256Mbit 256M x 1bit 8ns 16-Pin SOIC T/R - Tape and Reel (Alt: S25FL256SAGMFIG03) RoHS: Compliant Min Qty: 1450 Package Multiple: 1450 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$2.8529 / $3.1037 | Buy Now |
|
DISTI #
727-25FL256SAGMFIG03
|
Mouser Electronics | NOR Flash STD SPI RoHS: Compliant | 2202 |
|
$2.6100 / $3.9700 | Buy Now |
|
DISTI #
83630923
|
Verical | NOR Flash Serial (SPI, Dual SPI, Quad SPI) 3V/3.3V 256M-bit 256M/128M/64M x 1/2-bit/4-bit 14.5ns 16-Pin SOIC W T/R RoHS: Compliant Min Qty: 1450 Package Multiple: 1450 Date Code: 2423 | Americas - 17400 |
|
$2.6993 | Buy Now |
|
DISTI #
86015576
|
Verical | NOR Flash Serial (SPI, Dual SPI, Quad SPI) 3V/3.3V 256M-bit 256M/128M/64M x 1/2-bit/4-bit 14.5ns 16-Pin SOIC W T/R RoHS: Compliant Min Qty: 115 Package Multiple: 1 Date Code: 2201 | Americas - 2525 |
|
$2.7500 / $3.2625 | Buy Now |
|
DISTI #
66722925
|
Verical | NOR Flash Serial (SPI, Dual SPI, Quad SPI) 3V/3.3V 256M-bit 256M/128M/64M x 1/2-bit/4-bit 14.5ns 16-Pin SOIC W T/R RoHS: Compliant Min Qty: 10 Package Multiple: 1 | Americas - 1450 |
|
$2.2400 / $3.5500 | Buy Now |
|
|
Rochester Electronics | S25FL256S - 256-Mbit, 3.0V CMOS Flash Memory RoHS: Compliant Status: Active Min Qty: 1 | 2525 |
|
$2.2000 / $2.7500 | Buy Now |
|
DISTI #
S25FL256SAGMFIG03
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 1450 |
|
$2.0900 / $3.8100 | Buy Now |
|
DISTI #
SP005657507
|
EBV Elektronik | NOR Flash SerialSPI 3V 256Mbit 256M x 1bit 8ns 16Pin SOIC TR (Alt: SP005657507) RoHS: Compliant Min Qty: 1450 Package Multiple: 1450 Lead time: 13 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for S25FL256SAGMFIG03
S25FL256SAGMFIG03 CAD Models
S25FL256SAGMFIG03 Part Data Attributes
|
|
S25FL256SAGMFIG03
Infineon Technologies AG
Buy Now
Datasheet
|
Compare Parts:
S25FL256SAGMFIG03
Infineon Technologies AG
Flash, 32MX8, PDSO16,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | INFINEON TECHNOLOGIES AG | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 2 Days | |
| Samacsys Manufacturer | Infineon | |
| Additional Feature | ALSO CONFIGURABLE AS 256M X 1 | |
| Alternate Memory Width | 2 | |
| Boot Block | BOTTOM | |
| Clock Frequency-Max (fCLK) | 133 MHz | |
| Data Retention Time-Min | 20 | |
| Endurance | 100000 Write/Erase Cycles | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 10.3 mm | |
| Memory Density | 268435456 bit | |
| Memory IC Type | FLASH | |
| Memory Width | 8 | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Number of Words | 33554432 words | |
| Number of Words Code | 32000000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 32MX8 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Parallel/Serial | SERIAL | |
| Programming Voltage | 3 V | |
| Qualification Status | Not Qualified | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 2.65 mm | |
| Serial Bus Type | SPI | |
| Standby Current-Max | 0.0001 A | |
| Supply Current-Max | 0.1 mA | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Type | NOR TYPE | |
| Width | 7.5 mm | |
| Write Cycle Time-Max (tWC) | 500 ms | |
| Write Protection | HARDWARE/SOFTWARE |
S25FL256SAGMFIG03 Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the S25FL256SAGMFIG03 is 104 MHz.
-
The S25FL256SAGMFIG03 can endure up to 100,000 program/erase cycles before it starts to degrade.
-
The S25FL256SAGMFIG03 has a data retention period of at least 20 years at a temperature of 25°C.
-
Yes, the S25FL256SAGMFIG03 is compatible with the SPI protocol, as well as other protocols such as Dual SPI and Quad SPI.
-
The S25FL256SAGMFIG03 comes in a 24-ball BGA package.
