Diodes / Rectifier Diodes / S1KB
Datasheets
S1KB by:

Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, DO-214AA, GREEN, PLASTIC, SMB, 2 PIN

Part Details for S1KB by Taiwan Semiconductor

Results Overview of S1KB by Taiwan Semiconductor

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Industrial Automation Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Renewable Energy Entertainment and Gaming Robotics and Drones

S1KB Information

S1KB by Taiwan Semiconductor is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for S1KB

Part # Distributor Description Stock Price Buy
DISTI # 1801-S1KBCT-ND
DigiKey DIODE STANDARD 800V 1A DO214AA Min Qty: 1 Lead time: 4 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 5885
In Stock
  • 1 $0.4200
  • 10 $0.2580
  • 100 $0.1629
  • 500 $0.1215
  • 1,000 $0.1081
  • 3,000 $0.0911
  • 6,000 $0.0825
  • 9,000 $0.0781
  • 15,000 $0.0732
  • 21,000 $0.0703
  • 30,000 $0.0674
  • 75,000 $0.0612
  • 150,000 $0.0596
$0.0596 / $0.4200 Buy Now
DISTI # S1KB
Avnet Americas Diode Standard Recovery Rectifier 800V 1A 2-Pin DO-214AA T/R - Tape and Reel (Alt: S1KB) RoHS: Compliant Min Qty: 6000 Package Multiple: 3000 Lead time: 4 Weeks, 0 Days Container: Reel 0
  • 6,000 $0.0657
  • 12,000 $0.0653
  • 18,000 $0.0650
  • 30,000 $0.0647
  • 60,000 $0.0643
$0.0643 / $0.0657 Buy Now
DISTI # 821-S1KB
Mouser Electronics Rectifiers 1A, 800V, Standard Recovery Rectifier RoHS: Compliant 0
  • 1 $0.4000
  • 10 $0.2490
  • 100 $0.1170
  • 1,000 $0.0910
  • 3,000 $0.0790
  • 9,000 $0.0670
  • 24,000 $0.0640
  • 45,000 $0.0580
  • 99,000 $0.0560
$0.0560 / $0.4000 Order Now
Future Electronics   RoHS: Compliant pbFree: Yes Min Qty: 6000 Package Multiple: 3000 Lead time: 4 Weeks 0
  • 6,000 $0.0728
  • 9,000 $0.0721
  • 12,000 $0.0715
  • 15,000 $0.0699
$0.0699 / $0.0728 Buy Now

Part Details for S1KB

S1KB CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

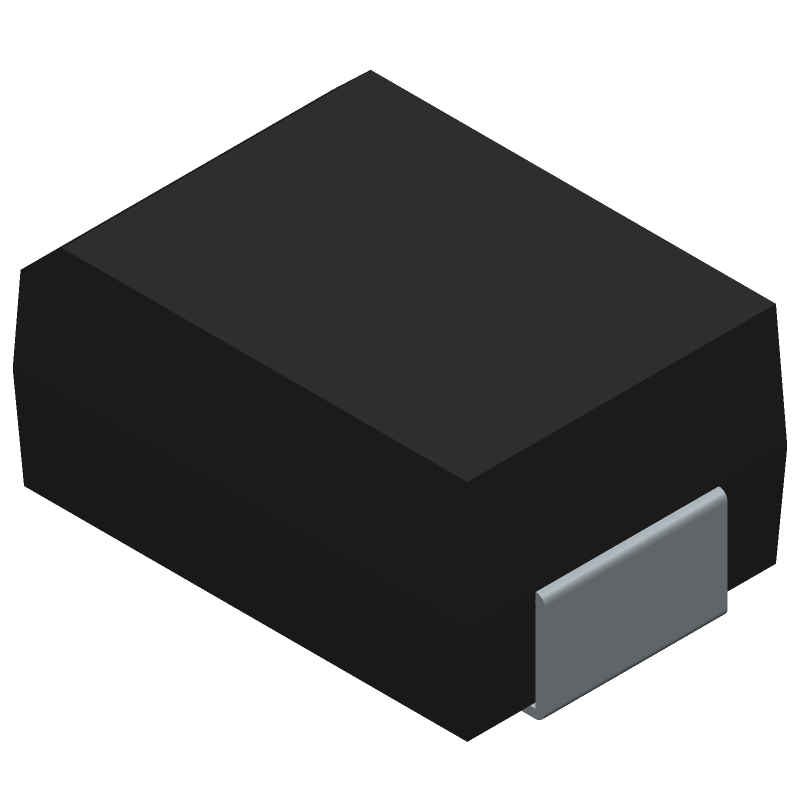

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

S1KB Part Data Attributes

Parametric Data
S1KB Taiwan Semiconductor
Buy Now Datasheet
Compare Parts:
S1KB Taiwan Semiconductor Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, DO-214AA, GREEN, PLASTIC, SMB, 2 PIN
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TAIWAN SEMICONDUCTOR CO LTD
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.10.00.80
Factory Lead Time 4 Weeks
Samacsys Manufacturer Taiwan Semiconductor
Application GENERAL PURPOSE
Configuration SINGLE
Diode Element Material SILICON
Diode Type RECTIFIER DIODE
Forward Voltage-Max (VF) 1.1 V
JEDEC-95 Code DO-214AA
JESD-30 Code R-PDSO-C2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Pk Forward Current-Max 30 A
Number of Elements 1
Number of Phases 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Output Current-Max 1 A
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Reference Standard UL RECOGNIZED
Rep Pk Reverse Voltage-Max 800 V
Surface Mount YES
Terminal Finish Matte Tin (Sn)
Terminal Form C BEND
Terminal Position DUAL

Alternate Parts for S1KB

This table gives cross-reference parts and alternative options found for S1KB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of S1KB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
UF1K-TP Micro Commercial Components Check for Price Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, DO-214AA, ROHS COMPLIANT, PLASTIC, SMB, 2 PIN S1KB vs UF1K-TP
S1KBR5G Taiwan Semiconductor Check for Price Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, DO-214AA, SMB, 2 PIN S1KB vs S1KBR5G
UF1K Promax-Johnton Electronic Corporation Check for Price Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, DO-214AA, PLASTIC, SMB, 2 PIN S1KB vs UF1K
S1K_R2_00001 PanJit Semiconductor Check for Price Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, DO-214AA, SMB, 2 PIN S1KB vs S1K_R2_00001
S1K_R1_00001 PanJit Semiconductor Check for Price Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, DO-214AA, SMB, 2 PIN S1KB vs S1K_R1_00001
RS1KB-13 Diodes Incorporated Check for Price Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, PLASTIC, SMB, 2 PIN S1KB vs RS1KB-13
S1KBR5 Taiwan Semiconductor Check for Price Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, DO-214AA, SMB, 2 PIN S1KB vs S1KBR5
RS1KB Diodes Incorporated Check for Price Rectifier Diode, 1 Element, 1A, 800V V(RRM), S1KB vs RS1KB
Part Number Manufacturer Composite Price Description Compare
RS1KB-13-F Diodes Incorporated $0.1702 Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, GREEN, PLASTIC, SMB, 2 PIN S1KB vs RS1KB-13-F
SM4006B Secos Corporation Check for Price Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, DO-214AA, ROHS COMPLIANT, PLASTIC, SMB, 2 PIN S1KB vs SM4006B
UF1K_R1_00001 PanJit Semiconductor Check for Price Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, DO-214AA, GREEN, PLASTIC, SMB, 2 PIN S1KB vs UF1K_R1_00001
UF1KT/R7 PanJit Semiconductor Check for Price Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, DO-214AA, ROHS COMPLIANT, PLASTIC, SMB, 2 PIN S1KB vs UF1KT/R7
S1KBR4G Taiwan Semiconductor Check for Price Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, DO-214AA, SMB, 2 PIN S1KB vs S1KBR4G
GR1KBF3 Yangzhou Yangjie Electronics Co Ltd Check for Price Rectifier Diode, S1KB vs GR1KBF3
FR1K_R1_00001 PanJit Semiconductor Check for Price Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, DO-214AA, SMB, 2 PIN S1KB vs FR1K_R1_00001
UF1K_R2_10001 PanJit Semiconductor Check for Price Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, DO-214AA, SMB, 2 PIN S1KB vs UF1K_R2_10001
UF1K_R2_00001 PanJit Semiconductor Check for Price Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, DO-214AA, GREEN, PLASTIC, SMB, 2 PIN S1KB vs UF1K_R2_00001
RS1KB WEITRON INTERNATIONAL CO., LTD. Check for Price Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, DO-214AA, LEAD FREE, PLASTIC, SMB, 2 PIN S1KB vs RS1KB
