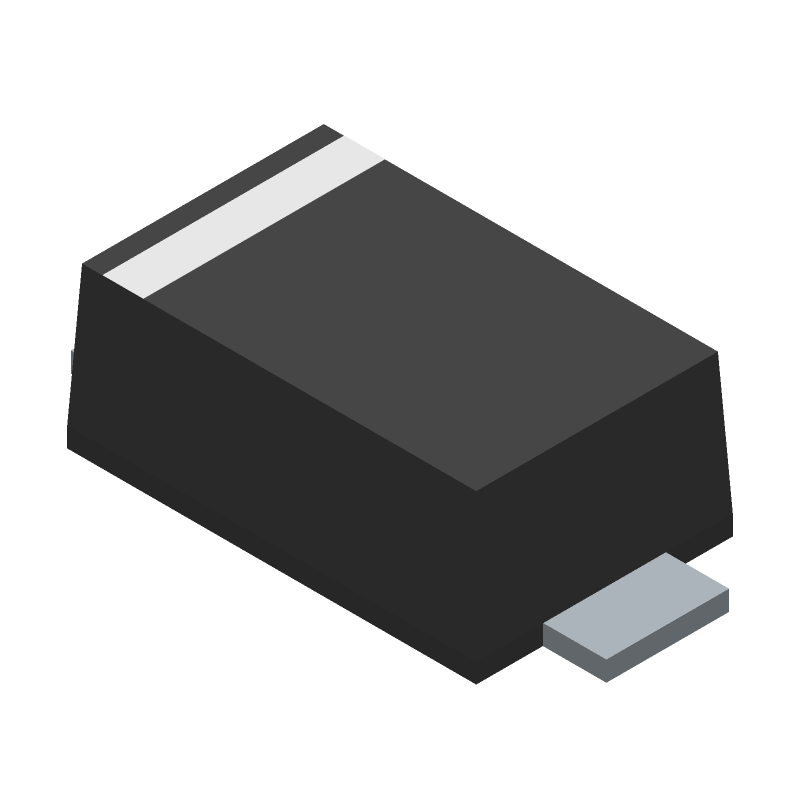

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for S1BFL by onsemi
Results Overview of S1BFL by onsemi
- Distributor Offerings: (19 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Industrial Automation
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Renewable Energy
Entertainment and Gaming
Robotics and Drones
S1BFL Information
S1BFL by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for S1BFL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
01AC9739
|
Newark | Surface General-Purpose Rectifier/ Reel |Onsemi S1BFL RoHS: Not Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0930 / $0.1020 | Buy Now |
|
DISTI #
S1BFLCT-ND
|
DigiKey | DIODE STANDARD 100V 1A SOD123F Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
19425 In Stock |
|
$0.0828 / $0.3900 | Buy Now |
|
DISTI #
S1BFL
|
Avnet Americas | 100V 1A GENERAL PURPOSE RECTIFIER IN SOD123F - Tape and Reel (Alt: S1BFL) RoHS: Compliant Min Qty: 9000 Package Multiple: 3000 Lead time: 18 Weeks, 0 Days Container: Reel | 0 |
|
$0.0854 / $0.0932 | Buy Now |
|
DISTI #
512-S1BFL
|
Mouser Electronics | Rectifiers 100V, 1A General Purpose Rectifier RoHS: Compliant | 24441 |
|
$0.0850 / $0.3900 | Buy Now |
|
DISTI #
V36:1790_14141100
|
Arrow Electronics | Diode Switching 100V 1A 2-Pin SOD-123F T/R Min Qty: 3000 Package Multiple: 3000 Lead time: 18 Weeks Date Code: 2418 | Americas - 12000 |
|
$0.0793 / $0.0926 | Buy Now |
|
DISTI #
V72:2272_14141100
|
Arrow Electronics | Diode Switching 100V 1A 2-Pin SOD-123F T/R Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks Date Code: 2226 Container: Cut Strips | Americas - 15 |
|
$0.0935 / $0.4187 | Buy Now |
|
|
Onlinecomponents.com | SURFACE GENERAL-PURPOSE RECTIFIER Rectifier Diode, 1 Phase, 1 Element, 1A, 100V V(RRM), Silicon RoHS: Compliant |
9000 In Stock |
|
$0.0793 / $0.0907 | Buy Now |
|
DISTI #
88106170
|
Verical | Diode Switching 100V 1A 2-Pin SOD-123F T/R Min Qty: 3000 Package Multiple: 3000 | Americas - 9000 |
|
$0.1087 / $0.1179 | Buy Now |
|
|
Rochester Electronics | S1BFL - Surface General-Purpose Rectifier RoHS: Compliant Status: Active Min Qty: 1 | 3000 |
|
$0.0695 / $0.1121 | Buy Now |
|
DISTI #
S1BFL-ONS
|
TME | Diode: rectifying, SMD, 100V, 1A, 2us, SOD123F, Ufmax: 1.1V, Ifsm: 30A Min Qty: 10 | 0 |
|
$0.1080 / $0.1620 | RFQ |
Part Details for S1BFL
S1BFL CAD Models
S1BFL Part Data Attributes
|
|
S1BFL
onsemi
Buy Now
Datasheet
|
Compare Parts:
S1BFL
onsemi
Surface General-Purpose Rectifier, SOD-123 FL, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOD-123 FL | |
| Manufacturer Package Code | 425AD | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Schedule B Code | 8541.10.00.80 | |
| Factory Lead Time | 18 Weeks | |
| Samacsys Description | UL Flammability 94V-0 Classification; RoHS Compliant / Green Mold Compound; Ultra Thin Profile – Maximum Height of 1.08 mm; Glass Passivated Junction; MSL level 1 | |
| Samacsys Manufacturer | onsemi | |
| Samacsys Modified On | 2025-01-22 16:53:39 | |
| Total Weight | 15 | |
| Category CO2 Kg | 8.8 | |
| CO2 | 132 | |
| Compliance Temperature Grade | Automotive: -50C to +150C | |
| EU RoHS Version | RoHS 2 (2015/863/EU) | |
| EU RoHS Exemptions | 7(a), 7(c)-I | |
| Candidate List Date | 2025-01-21 | |
| SVHC Over MCV | 7439-92-1 | |
| CAS Accounted for Wt | 97 | |
| CA Prop 65 Presence | YES | |
| CA Prop 65 CAS Numbers | 1333-86-4, 7440-02-0, 7439-92-1 | |
| EFUP | 50 | |
| Conflict Mineral Status | DRC Conflict Free | |
| Conflict Mineral Status Source | CMRT V6.40 | |
| Qualifications | AEC-Q101 | |
| Application | GENERAL PURPOSE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.1 V | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 30 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -50 °C | |
| Output Current-Max | 1 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Reference Standard | AEC-Q101 | |
| Rep Pk Reverse Voltage-Max | 100 V | |
| Reverse Current-Max | 1 µA | |
| Reverse Recovery Time-Max | 2 µs | |
| Reverse Test Voltage | 100 V | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
S1BFL Frequently Asked Questions (FAQ)
-
A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the thermal pad connected to the ground plane to improve heat dissipation.
-
Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout. Also, consider derating the device's power dissipation at high temperatures.
-
The maximum allowed voltage on the EN pin is VCC + 0.3V. Exceeding this voltage may damage the device.
-
No, the S1BFL is designed as a low-side switch. Using it as a high-side switch may lead to incorrect operation or damage to the device.
-
Use a soft-start circuit or a current limiter to control the inrush current. You can also add a NTC thermistor or a PTC resistor to limit the inrush current.
