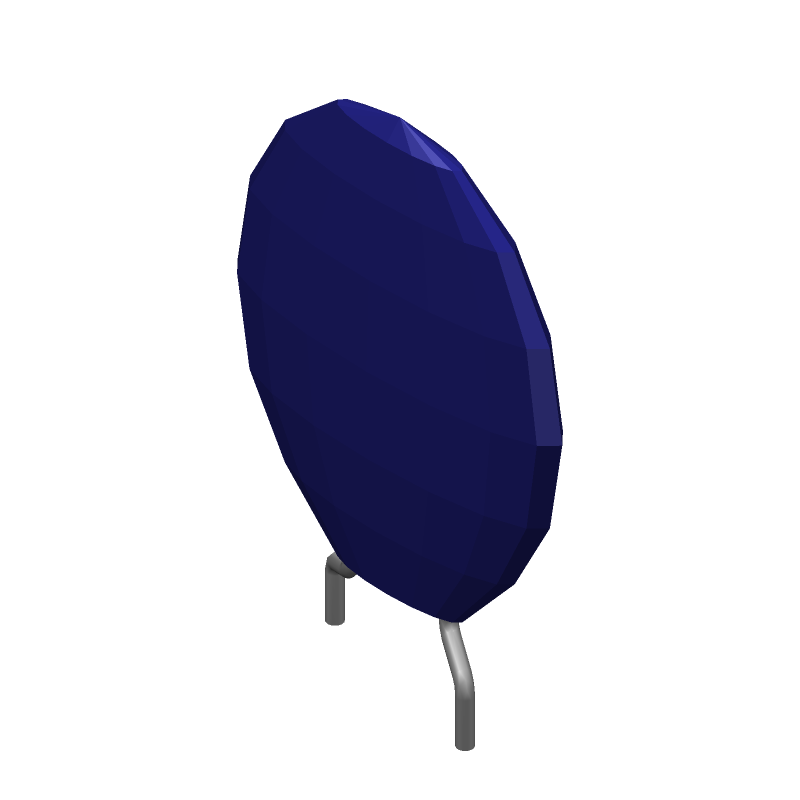

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for S103K75Y5PN63J0R by Vishay Intertechnologies
Results Overview of S103K75Y5PN63J0R by Vishay Intertechnologies
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
S103K75Y5PN63J0R Information
S103K75Y5PN63J0R by Vishay Intertechnologies is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for S103K75Y5PN63J0R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
92K9281
|
Newark | S 1Kv 10Nf ± 10% Y5P Bulk E3 |Vishay S103K75Y5PN63J0R RoHS: Not Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.1950 | Buy Now |
|
DISTI #
S103K75Y5PN63J0R
|
Avnet Americas | S 1KV 10nF ? 10% Y5P BULK e3 - Bulk (Alt: S103K75Y5PN63J0R) RoHS: Compliant Min Qty: 10000 Package Multiple: 500 Lead time: 8 Weeks, 0 Days Container: Bulk | 0 |
|
$0.1690 / $0.1725 | Buy Now |
|
DISTI #
594-S103K75Y5PN63J0R
|
Mouser Electronics | Ceramic Disc Capacitors S 1KV 10nF +/- 10% Y5P BULK e3 RoHS: Compliant | 0 |
|
$0.1860 | Order Now |
Part Details for S103K75Y5PN63J0R
S103K75Y5PN63J0R CAD Models
S103K75Y5PN63J0R Part Data Attributes
|
|
S103K75Y5PN63J0R
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
S103K75Y5PN63J0R
Vishay Intertechnologies
Ceramic Capacitor, Ceramic, 1000V, 10% +Tol, 10% -Tol, Y5P, 10% TC, 0.01uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | RADIAL LEADED, ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.23.00.60 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Capacitance | 0.01 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| JESD-609 Code | e3 | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Multilayer | No | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -30 °C | |
| Package Shape | DISK PACKAGE | |
| Packing Method | BULK | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 1000 V | |
| Surface Mount | NO | |
| Temperature Characteristics Code | Y5P | |
| Temperature Coefficient | 10% ppm/°C | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Shape | WIRE |
Alternate Parts for S103K75Y5PN63J0R
This table gives cross-reference parts and alternative options found for S103K75Y5PN63J0R. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of S103K75Y5PN63J0R, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| HVY5P103K1KV6F4 | MERITEK Electronics Corporation | Check for Price | Ceramic Capacitor, Ceramic, 1000V, 10% +Tol, 10% -Tol, Y5P, 10% TC, 0.01uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT | S103K75Y5PN63J0R vs HVY5P103K1KV6F4 |
| HVY5P103K1KV7F5 | MERITEK Electronics Corporation | Check for Price | Ceramic Capacitor, Ceramic, 1000V, 10% +Tol, 10% -Tol, Y5P, 10% TC, 0.01uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT | S103K75Y5PN63J0R vs HVY5P103K1KV7F5 |
| HVY5P103K1KV7F1 | MERITEK Electronics Corporation | Check for Price | Ceramic Capacitor, Ceramic, 1000V, 10% +Tol, 10% -Tol, Y5P, 10% TC, 0.01uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT | S103K75Y5PN63J0R vs HVY5P103K1KV7F1 |
| HVY5P103K1KV9R3 | MERITEK Electronics Corporation | Check for Price | Ceramic Capacitor, Ceramic, 1000V, 10% +Tol, 10% -Tol, Y5P, 10% TC, 0.01uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT | S103K75Y5PN63J0R vs HVY5P103K1KV9R3 |
| HVY5P103K1KV5R3 | MERITEK Electronics Corporation | Check for Price | Ceramic Capacitor, Ceramic, 1000V, 10% +Tol, 10% -Tol, Y5P, 10% TC, 0.01uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT | S103K75Y5PN63J0R vs HVY5P103K1KV5R3 |
| HVY5P103K1KV7B4 | MERITEK Electronics Corporation | Check for Price | Ceramic Capacitor, Ceramic, 1000V, 10% +Tol, 10% -Tol, Y5P, 10% TC, 0.01uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT | S103K75Y5PN63J0R vs HVY5P103K1KV7B4 |
| NCD103J1KVY5P | NIC Components Corp | Check for Price | CAPACITOR, CERAMIC, 1000V, Y5P, 0.01uF, THROUGH HOLE MOUNT, RADIAL LEADED | S103K75Y5PN63J0R vs NCD103J1KVY5P |
| HVY5P103K1KV7R4 | MERITEK Electronics Corporation | Check for Price | Ceramic Capacitor, Ceramic, 1000V, 10% +Tol, 10% -Tol, Y5P, 10% TC, 0.01uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT | S103K75Y5PN63J0R vs HVY5P103K1KV7R4 |
| HVY5P103K1KV9R5 | MERITEK Electronics Corporation | Check for Price | Ceramic Capacitor, Ceramic, 1000V, 10% +Tol, 10% -Tol, Y5P, 10% TC, 0.01uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT | S103K75Y5PN63J0R vs HVY5P103K1KV9R5 |
| HVY5P103K1KV5R1 | MERITEK Electronics Corporation | Check for Price | Ceramic Capacitor, Ceramic, 1000V, 10% +Tol, 10% -Tol, Y5P, 10% TC, 0.01uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT | S103K75Y5PN63J0R vs HVY5P103K1KV5R1 |
S103K75Y5PN63J0R Frequently Asked Questions (FAQ)
-
The recommended soldering temperature is 260°C (500°F) for 10 seconds or less, to prevent damage to the capacitor.
-
Yes, the S103K75Y5PN63J0R is designed to withstand high vibrations and is suitable for use in applications with mechanical stress.
-
The capacitor's impedance and ESR (Equivalent Series Resistance) increase with frequency. Refer to the datasheet's impedance vs. frequency graph for specific details.
-
Yes, the capacitor is rated for operation up to 125°C (257°F) and is suitable for use in high-temperature applications.
-
Store the capacitors in a dry, cool place, away from direct sunlight and moisture. Avoid storing them in areas with high humidity or extreme temperatures.
