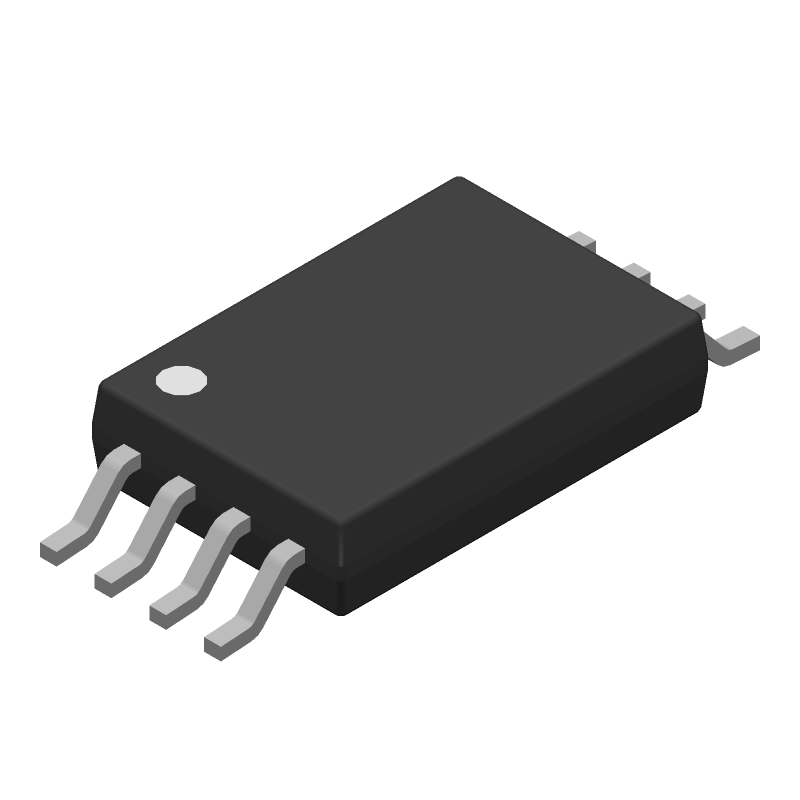

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for S-24C512CI-T8T1U4 by ABLIC Inc.
Results Overview of S-24C512CI-T8T1U4 by ABLIC Inc.
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (6 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
S-24C512CI-T8T1U4 Information
S-24C512CI-T8T1U4 by ABLIC Inc. is an EEPROM.
EEPROMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for S-24C512CI-T8T1U4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
S-24C512CI-T8T1U4-ND
|
DigiKey | IC EEPROM 512KBIT I2C 8TSSOP Min Qty: 4000 Lead time: 16 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$1.2546 | Buy Now |
|
DISTI #
S-24C512CI-T8T1U4
|
Avnet Americas | - Tape and Reel (Alt: S-24C512CI-T8T1U4) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 16 Weeks, 0 Days Container: Reel | 0 |
|
$0.9400 / $1.1100 | Buy Now |
|
DISTI #
628-S-24C512CIT8T1U4
|
Mouser Electronics | EEPROM 512Kb Serial I2C RoHS: Compliant | 3452 |
|
$1.1000 / $1.1200 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$1.0100 / $2.7800 | Buy Now |
|
DISTI #
73573742
|
Verical | 2-WIRE SERIAL EPROM RoHS: Compliant Min Qty: 53 Package Multiple: 1 Date Code: 2301 | Americas - 4000 |
|
$1.3489 / $1.6256 | Buy Now |
|
DISTI #
87557926
|
Verical | 2-WIRE SERIAL EPROM RoHS: Compliant Min Qty: 48 Package Multiple: 1 | Americas - 3524 |
|
$0.4720 / $0.6870 | Buy Now |
|
DISTI #
36547464
|
Verical | 2-WIRE SERIAL EPROM RoHS: Compliant Min Qty: 53 Package Multiple: 1 Date Code: 1901 | Americas - 237 |
|
$1.5529 / $1.6256 | Buy Now |
|
|
Quest Components | 3389 |
|
$1.3560 / $3.6160 | Buy Now |
Part Details for S-24C512CI-T8T1U4
S-24C512CI-T8T1U4 CAD Models
S-24C512CI-T8T1U4 Part Data Attributes
|
|
S-24C512CI-T8T1U4
ABLIC Inc.
Buy Now
Datasheet
|
Compare Parts:
S-24C512CI-T8T1U4
ABLIC Inc.
IC EEPROM 512K I2C 1MHZ 8TSSOP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ABLIC INC | |
| Part Package Code | SOIC | |
| Package Description | TSSOP-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | ABLIC Inc. | |
| Additional Feature | 100 YEAR DATA RETENTION | |
| Clock Frequency-Max (fCLK) | 1 MHz | |
| Data Retention Time-Min | 100 | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.4 mm | |
| Memory Density | 524288 bit | |
| Memory IC Type | EEPROM | |
| Memory Width | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 65536 words | |
| Number of Words Code | 64000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 64KX8 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Parallel/Serial | SERIAL | |
| Seated Height-Max | 1.1 mm | |
| Serial Bus Type | I2C | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.6 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Width | 3 mm | |
| Write Cycle Time-Max (tWC) | 5 ms |
Alternate Parts for S-24C512CI-T8T1U4
This table gives cross-reference parts and alternative options found for S-24C512CI-T8T1U4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of S-24C512CI-T8T1U4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| CAT25512HU5I-GT3 | onsemi | $0.3645 | EEPROM Serial 512-Kb SPI, UDFN8, 3x2, 0.5P, 3000-REEL | S-24C512CI-T8T1U4 vs CAT25512HU5I-GT3 |
| AT24C512C-SHM-T | Microchip Technology Inc | $1.0000 | EEPROM, 64KX8, Serial, PDSO8 | S-24C512CI-T8T1U4 vs AT24C512C-SHM-T |
| AT24C512C-SHM-B | Microchip Technology Inc | $1.3929 | EEPROM, 64KX8, Serial, PDSO8 | S-24C512CI-T8T1U4 vs AT24C512C-SHM-B |
| CAT24C512HU5EGT3 | onsemi | Check for Price | EEPROM Serial 512-Kb I2C UDFN 2x3, Extended Temp, 3000-REEL | S-24C512CI-T8T1U4 vs CAT24C512HU5EGT3 |
| S-24C512CI-J8T1U4 | ABLIC Inc. | Check for Price | IC EEPROM 512K I2C 1MHZ 8SOP | S-24C512CI-T8T1U4 vs S-24C512CI-J8T1U4 |
| CAT24C512C8UTR | onsemi | Check for Price | 512 Kb Serial CMOS EEPROM, internally organized as 65,536 words of 8 bits each. 512 Kb Serial CMOS EEPROM, WLCSP-8, 5000-REEL | S-24C512CI-T8T1U4 vs CAT24C512C8UTR |
S-24C512CI-T8T1U4 Frequently Asked Questions (FAQ)
-
The maximum operating frequency is 1 MHz, as specified in the datasheet.
-
The HOLD signal should be kept low during power-up and power-down to prevent unwanted writes to the device.
-
The WP (Write Protect) pin is used to prevent writes to the entire memory array. When WP is low, the entire memory array is write-protected.
-
A software reset can be performed by sending a reset command (0x99) to the device.
-
The maximum current consumption is 3 mA during read and write operations, and 1 μA in standby mode.
