RXEF110 Information
RXEF110 by Littelfuse Inc is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for RXEF110
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
42M2525
|
Newark | Polyswitch, Radial, 1.1A, Thermistor Mounting:Through Hole, Product Range:Polyswitch Rxef Series, Holding Current:1.1A, Tripping Current:2.2A, Voltage Rating:72Vdc, Operating Temperature Min:-40°C, Operating Temperature Max:85°C, Rohs Compliant: Yes |Littelfuse RXEF110 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 1523 |
|
$0.2460 / $0.5490 | Buy Now |
|
DISTI #
04H8124
|
Newark | Fuse, Ptc Reset, 72V, 1.1A, Radial, Product Range:Polyswitch Rxef Series, Voltage Rating:72Vdc, Holding Current:1.1A, Trip Current:2.2A, Time To Trip:8.2S, Fuse Shape:Round, Current Rating Max:40A, Lead Spacing:5.8Mm, Diameter:12.8Mmrohs Compliant: Yes |Littelfuse RXEF110 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 1038 |
|
$0.2460 / $0.5490 | Buy Now |
|
DISTI #
RXEF110-ND
|
DigiKey | PTC RESET FUSE 72V 1.1A RADIAL Min Qty: 1 Lead time: 15 Weeks Container: Bag |
10839 In Stock |
|
$0.2079 / $0.5600 | Buy Now |
|
|
Future Electronics | RXEF Series 72 V 1.1 A Ihold Through Hole Radial PolySwitch Resettable Fuse RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Container: Bag | 12517Bag |
|
$0.1950 / $0.2200 | Buy Now |
|
|
Future Electronics | RXEF Series 72 V 1.1 A Ihold Through Hole Radial PolySwitch Resettable Fuse RoHS: Compliant pbFree: Yes Min Qty: 500 Package Multiple: 500 Lead time: 12 Weeks Container: Bag | 500Bag |
|
$0.1950 / $0.2100 | Buy Now |
|
|
Bristol Electronics | 1966 |
|
RFQ | ||
|
DISTI #
RXEF110
|
TTI | Resettable Fuses - PPTC Radial Lead 1.1A 72V 40A Imax RoHS: Compliant pbFree: Pb-Free Min Qty: 50 Package Multiple: 50 Container: Bulk |
Americas - 42800 In Stock |
|
$0.2480 / $0.2800 | Buy Now |
|
|
Future Electronics | RXEF Series 72 V 1.1 A Ihold Through Hole Radial PolySwitch Resettable Fuse Min Qty: 1 Package Multiple: 1 |
13278 null |
|
$0.1950 / $0.2200 | Buy Now |
|
DISTI #
RXEF110
|
TME | Fuse: PTC polymer, 1.1A, SMD, 5mm Min Qty: 2 | 3867 |
|
$0.2110 / $0.5070 | Buy Now |
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ |
Part Details for RXEF110

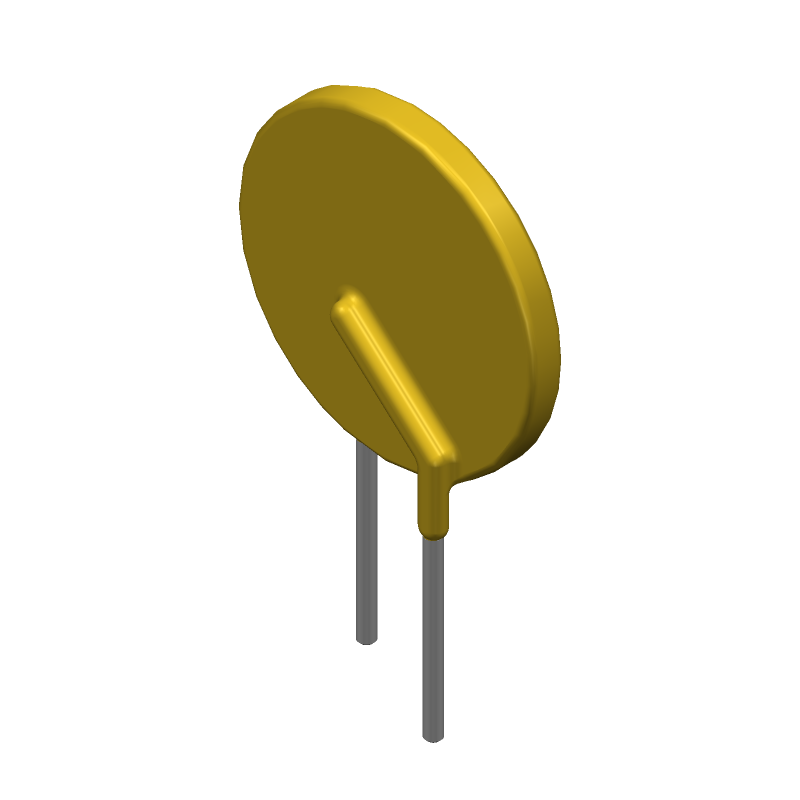

RXEF110 CAD Models
RXEF110 Part Data Attributes
|
|
RXEF110
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
RXEF110
Littelfuse Inc
PTC Resettable Fuse, Through Hole Mount, RADIAL LEADED
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.40.80.70 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Additional Feature | Rmax:0.25 OHMS AT 20 DEG CEL | |
| Circuit RMS Voltage-Max | 72 V | |
| JESD-609 Code | e3 | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 17.5 mm | |
| Package Length | 12.8 mm | |
| Package Shape | DISK PACKAGE | |
| Package Style | Radial | |
| Package Width | 3 mm | |
| Packing Method | BULK | |
| Reference Standard | CQC; CUL; TUV; UL | |
| Resistance | 0.15 Ω | |
| Resistor Type | PTC RESETTABLE FUSE | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Placement | RADIAL | |
| Terminal Shape | WIRE | |
| Working Voltage | 72 V |
