RXEF090 Information
RXEF090 by Littelfuse Inc is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for RXEF090
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
99H1959
|
Newark | Fuse, Ptc Reset, 72V, 900Ma, Radial, Product Range:Polyswitch Rxef Series, Voltage Rating:72Vdc, Holding Current:900Ma, Trip Current:1.8A, Time To Trip:7.2S, Fuse Shape:Round, Current Rating Max:40A, Lead Spacing:5.8Mm, Length:- Rohs Compliant: Yes |Littelfuse RXEF090 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 10072 |
|
$0.2230 / $0.2840 | Buy Now |
|
DISTI #
RXEF090HF-ND
|
DigiKey | PTC RESET FUSE 72V 900MA RADIAL Min Qty: 1 Lead time: 15 Weeks Container: Bag |
4242 In Stock |
|
$0.1982 / $0.5400 | Buy Now |
|
DISTI #
650-RXEF090
|
Mouser Electronics | Resettable Fuses - PPTC Radial Lead .9A 72V 40A Imax RoHS: Compliant | 13935 |
|
$0.2020 / $0.4300 | Buy Now |
|
|
Future Electronics | RXEF Series 72 V 0.9 A Ihold Through Hole Radial PolySwitch Resettable Fuse RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Container: Bag | 15485Bag |
|
$0.1850 / $0.2100 | Buy Now |
|
|
Future Electronics | RXEF Series 72 V 0.9 A Ihold Through Hole Radial PolySwitch Resettable Fuse RoHS: Compliant pbFree: Yes Min Qty: 500 Package Multiple: 500 Lead time: 12 Weeks Container: Box | 0Box |
|
$0.1850 / $0.2100 | Buy Now |
|
|
Bristol Electronics | 300 |
|
RFQ | ||
|
|
Bristol Electronics | 85 |
|
RFQ | ||
|
|
Quest Components | PTC RESETTABLE FUSE,.9A,72V,RADIAL LEAD,LEAD FREE | 272 |
|
$0.7000 / $1.4000 | Buy Now |
|
|
Quest Components | PTC RESETTABLE FUSE,.9A,72V,RADIAL LEAD,LEAD FREE | 50 |
|
$0.3200 / $0.3840 | Buy Now |
|
DISTI #
RXEF090
|
TTI | Resettable Fuses - PPTC Radial Lead .9A 72V 40A Imax RoHS: Compliant pbFree: Pb-Free Min Qty: 100 Package Multiple: 100 Container: Bulk |
Americas - 59900 In Stock |
|
$0.2150 / $0.2560 | Buy Now |
Part Details for RXEF090

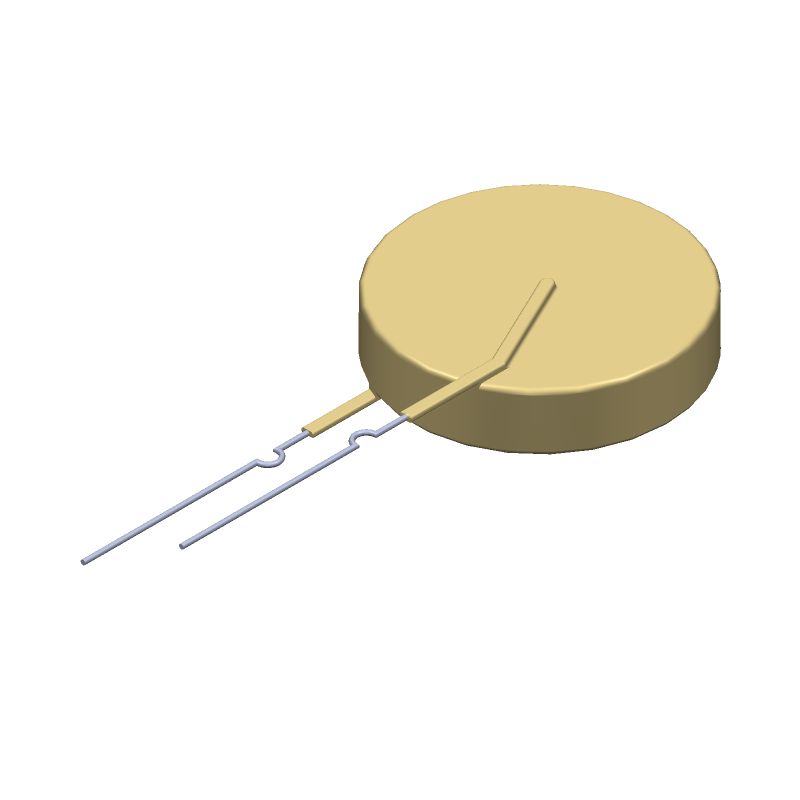

RXEF090 CAD Models
RXEF090 Part Data Attributes
|
|
RXEF090
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
RXEF090
Littelfuse Inc
PTC Resettable Fuse, Through Hole Mount, RADIAL LEADED
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.40.80.70 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Additional Feature | Rmax:0.31 OHMS AT 20 DEG CEL | |
| Circuit RMS Voltage-Max | 72 V | |
| JESD-609 Code | e3 | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 15.8 mm | |
| Package Length | 11.2 mm | |
| Package Style | Radial | |
| Package Width | 3 mm | |
| Packing Method | BULK | |
| Reference Standard | CQC; CUL; TUV; UL | |
| Resistance | 0.2 Ω | |
| Resistor Type | PTC RESETTABLE FUSE | |
| Surface Mount | NO | |
| Terminal Finish | TIN | |
| Terminal Placement | RADIAL | |
| Terminal Shape | WIRE | |
| Working Voltage | 72 V |
