RXEF030-2 Information
RXEF030-2 by Littelfuse Inc is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for RXEF030-2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
04H8115
|
Newark | Fuse, Ptc Reset, 72V, 300Ma, Radial, Full Reel, Product Range:Polyswitch Rxef Series, Voltage Rating:72Vdc, Holding Current:300Ma, Trip Current:600Ma, Time To Trip:3S, Fuse Shape:Round, Current Rating Max:40A, Lead Spacing:5.8Mm Rohs Compliant: Yes |Littelfuse RXEF030-2 RoHS: Compliant Min Qty: 15000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1860 / $0.2240 | Buy Now |
|
DISTI #
76T4565
|
Newark | Resettable Fuse, Ptc, 72V, 300Ma, Radial, Product Range:Polyswitch Rxef Series, Voltage Rating:72Vdc, Holding Current:300Ma, Trip Current:600Ma, Time To Trip:3S, Fuse Shape:Round, Current Rating Max:40A, Lead Spacing:5.8Mm, Length:- Rohs Compliant: Yes |Littelfuse RXEF030-2 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.2510 / $0.4800 | Buy Now |
|
DISTI #
RXEF030-2HFCT-ND
|
DigiKey | PTC RESET FUSE 72V 300MA RADIAL Min Qty: 1 Lead time: 15 Weeks Container: Tape & Reel (TR), Cut Tape (CT), Cut Tape (CT), Tape & Reel (TR) |
8716 In Stock |
|
$0.1736 / $0.4900 | Buy Now |
|
DISTI #
650-RXEF030-2
|
Mouser Electronics | Resettable Fuses - PPTC Radial Lead .3A 72V 40A Imax RoHS: Compliant | 6768 |
|
$0.1750 / $0.4100 | Buy Now |
|
DISTI #
E02:0323_01984065
|
Arrow Electronics | PTC Resettable Fuse 0.3A(hold) 0.6A(trip) 72VAC/72VDC 40A 0.49W 3s 0.88Ohm Radial 7.4 X 3mm T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 11 Weeks Date Code: 2447 | Europe - 81000 |
|
$0.1661 / $0.1746 | Buy Now |
|
DISTI #
V72:2272_16253322
|
Arrow Electronics | PTC Resettable Fuse 0.3A(hold) 0.6A(trip) 72VAC/72VDC 40A 0.49W 3s 0.88Ohm Radial 7.4 X 3mm T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 15 Weeks Date Code: 2242 Container: Cut Strips | Americas - 808 |
|
$0.1801 / $0.2708 | Buy Now |
|
|
Future Electronics | RXEF Series 72 V 0.3 A Ihold Through Hole Radial PolySwitch Resettable Fuse RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks Container: Reel | 42000Reel |
|
$0.1790 / $0.1860 | Buy Now |
|
DISTI #
87190549
|
Verical | PTC Resettable Fuse 0.3A(hold) 0.6A(trip) 72VAC/72VDC 40A 0.49W 3s 0.88Ohm Radial 7.4 X 3mm T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2447 | Americas - 81000 |
|
$0.1725 / $0.1761 | Buy Now |
|
DISTI #
88183435
|
Verical | PTC Resettable Fuse 0.3A(hold) 0.6A(trip) 72VAC/72VDC 40A 0.49W 3s 0.88Ohm Radial 7.4 X 3mm T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2503 | Americas - 27000 |
|
$0.2293 | Buy Now |
|
DISTI #
64973888
|
Verical | PTC Resettable Fuse 0.3A(hold) 0.6A(trip) 72VAC/72VDC 40A 0.49W 3s 0.88Ohm Radial 7.4 X 3mm T/R RoHS: Compliant Min Qty: 33 Package Multiple: 1 Date Code: 2242 | Americas - 808 |
|
$0.1801 / $0.2300 | Buy Now |
Part Details for RXEF030-2
RXEF030-2 CAD Models
RXEF030-2 Part Data Attributes
|
|

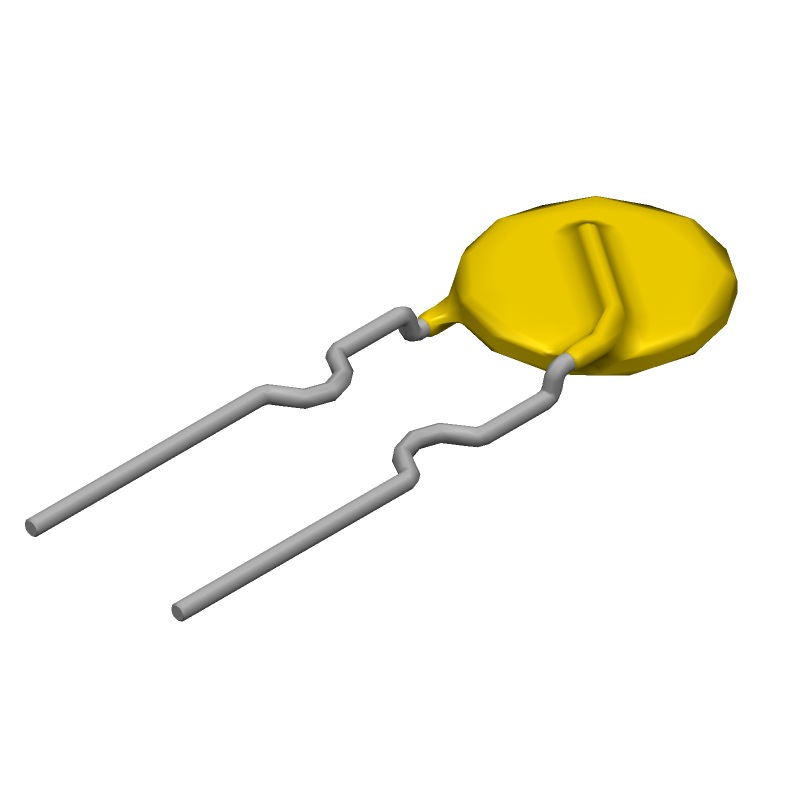

RXEF030-2
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
RXEF030-2
Littelfuse Inc
PTC Resettable Fuse, Through Hole Mount, RADIAL LEADED
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.40.80.70 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Additional Feature | Rmax:1.33 OHMS AT 20 DEG CEL | |
| Circuit RMS Voltage-Max | 72 V | |
| JESD-609 Code | e3 | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 12.7 mm | |
| Package Length | 7.4 mm | |
| Package Shape | DISK PACKAGE | |
| Package Style | Radial | |
| Package Width | 3 mm | |
| Packing Method | TR, 15 INCH | |
| Reference Standard | CQC; CUL; TUV; UL | |
| Resistance | 0.88 Ω | |
| Resistor Type | PTC RESETTABLE FUSE | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Placement | RADIAL | |
| Terminal Shape | WIRE | |
| Working Voltage | 72 V |
