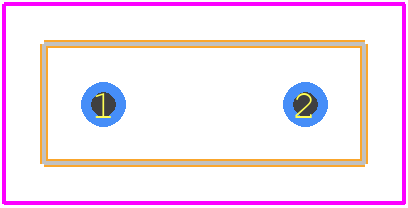

Footprint
-

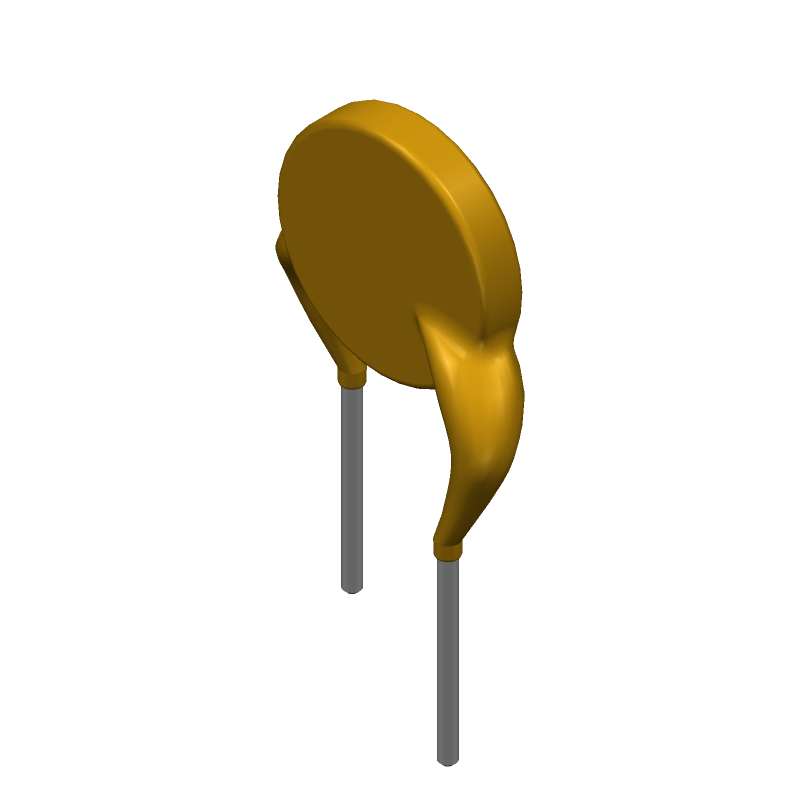

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RXEF005 by Littelfuse Inc
Results Overview of RXEF005 by Littelfuse Inc
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (6 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
RXEF005 Information
RXEF005 by Littelfuse Inc is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for RXEF005
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
04H8104
|
Newark | Pptc Resettable Fuse, Round, 60Vdc, Product Range:Polyswitch Rxef Series, Voltage Rating:60Vdc, Holding Current:50Ma, Trip Current:100Ma, Time To Trip:5S, Fuse Shape:Round, Current Rating Max:40A, Lead Spacing:5.8Mm, Diameter:8Mm Rohs Compliant: Yes |Littelfuse RXEF005 RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$0.1680 / $0.1800 | Buy Now |
|
DISTI #
RXEF005HF-ND
|
DigiKey | PTC RESET FUSE 60V 50MA RADIAL Min Qty: 1 Lead time: 15 Weeks Container: Bag |
23 In Stock |
|
$0.1630 / $0.4400 | Buy Now |
|
DISTI #
650-RXEF005
|
Mouser Electronics | Resettable Fuses - PPTC .05A 60V 40A Imax RoHS: Compliant | 3234 |
|
$0.1630 / $0.3700 | Buy Now |
|
|
Future Electronics | RXEF Series 60 V 0.05 A Ihold Through Hole Radial PolySwitch Resettable Fuse RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Container: Bag | 6354Bag |
|
$0.1600 / $0.1790 | Buy Now |
|
DISTI #
RXEF005
|
TTI | Resettable Fuses - PPTC .05A 60V 40A Imax RoHS: Compliant pbFree: Pb-Free Min Qty: 50 Package Multiple: 50 Container: Bulk |
Americas - 30700 In Stock |
|
$0.1910 / $0.2150 | Buy Now |
|
|
Future Electronics | RXEF Series 60 V 0.05 A Ihold Through Hole Radial PolySwitch Resettable Fuse Min Qty: 1 Package Multiple: 1 |
8454 null |
|
$0.1600 / $0.1790 | Buy Now |
|
DISTI #
RXEF005
|
TME | Fuse: PTC polymer, 50mA, SMD, 5mm Min Qty: 1 | 2890 |
|
$0.1800 / $0.3420 | Buy Now |
|
DISTI #
RXEF005
|
IBS Electronics | PTC RESETTABLE FUSE 0.05A(HOLD) 0.1A(TRIP) 60V 0.26W 5S 7.3OHM RADIAL 8 X 3MM BAG Min Qty: 50 Package Multiple: 1 | 6354 |
|
$0.2080 / $0.2327 | Buy Now |
|
|
New Advantage Corporation | RXEF Series 60 V 0.05 A Ihold Through Hole Radial PolySwitch Resettable Fuse RoHS: Compliant Min Qty: 1 Package Multiple: 500 | 9500 |
|
$0.2877 / $0.3117 | Buy Now |
|
|
Win Source Electronics | PTC RESET FUSE 60V 50MA RADIAL / Polymeric PTC Resettable Fuse 60V 50 mA Ih Through Hole Radial, Disc | 20000 |
|
$0.0938 / $0.1407 | Buy Now |
Part Details for RXEF005
RXEF005 CAD Models
RXEF005 Part Data Attributes
|
|
RXEF005
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
RXEF005
Littelfuse Inc
PTC Resettable Fuse, Through Hole Mount, RADIAL LEADED
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.40.80.70 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Additional Feature | Rmax:11.1 OHMS AT 20 DEG CEL | |
| JESD-609 Code | e3 | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 8.3 mm | |
| Package Length | 8 mm | |
| Package Style | Radial | |
| Package Width | 3 mm | |
| Packing Method | BULK | |
| Reference Standard | CQC; CUL; TUV; UL | |
| Resistance | 7.3 Ω | |
| Resistor Type | PTC RESETTABLE FUSE | |
| Surface Mount | NO | |
| Terminal Finish | Tin (Sn) | |
| Terminal Placement | RADIAL | |
| Terminal Shape | WIRE | |
| Working Voltage | 60 V |
