RW2-2415D/H3/SMD Information
RW2-2415D/H3/SMD by RECOM Power GmbH is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| BLM15PX181BH1D | Murata Manufacturing Co Ltd | FB SMD 0402inch 180ohm POWRTRN | |
| BLM15PX221SH1D | Murata Manufacturing Co Ltd | FB SMD 0402inch 220ohm POWRTRN | |
| BLM21HE601SH1L | Murata Manufacturing Co Ltd | FB SMD 0805inch 600ohm POWRTRN |
Price & Stock for RW2-2415D/H3/SMD
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
64X1024
|
Newark | Dc-Dc Converter, Medical, 2 O/P, 2W, Dc/Dc Converter Type:-, Output Power Max:2W, No. Of Outputs:2 Output, Output Voltage - Output 1:15V, Output Current - Output 1:67Ma, Output Voltage - Output 2:-15V, Width:-, Height:-, Depth:- Rohs Compliant: Yes |Recom Power RW2-2415D/H3/SMD RoHS: Compliant Min Qty: 20 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$20.5200 / $24.2400 | Buy Now |
|
DISTI #
945-2049-5-ND
|
DigiKey | DC DC CONVERTER +/-15V 2W Min Qty: 1 Lead time: 17 Weeks Container: Tube | Temporarily Out of Stock |
|
$19.8101 / $25.5000 | Buy Now |
|
DISTI #
919-RW2-2415DH3SMD
|
Mouser Electronics | Isolated DC/DC Converters - SMD 2W DC/DC 3kV REG 2:1 18-36Vin +/-15Vout RoHS: Compliant | 0 |
|
$21.5200 / $26.8300 | Order Now |
|
DISTI #
72185805
|
RS | DC-DC Converter, SMD 3kV reg 2:1, Dual, 2W, +/-15V, +/-67mA, RW2 Series Min Qty: 20 Package Multiple: 1 Lead time: 17 Weeks, 0 Days Container: Bulk | 0 |
|
$26.1200 / $28.0800 | RFQ |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$19.5300 / $25.6400 | Buy Now |
|
DISTI #
RW2-2415D/H3/SMD
|
TME | Converter: DC/DC, 2W, Uin: 18÷36VDC, Uout: 15VDC, Uout2: -15VDC, SMT Min Qty: 1 | 0 |
|
$20.4400 / $23.8900 | RFQ |
|
DISTI #
RW22415D3SMD
|
Richardson RFPD | DC TO DC CONVERTER MODULE RoHS: Compliant Min Qty: 20 | 0 |
|
$18.5900 | Buy Now |
|
DISTI #
000000000006067323
|
Sager | Isolated DC/DC Converters - SMD 2W DC/DC 3kV REG 2:1 18-36Vin +/-15Vout Min Qty: 1 | 0 |
|
$21.2400 / $24.7800 | Buy Now |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 20 | 40 |
|
$31.1800 / $33.7800 | Buy Now |
Part Details for RW2-2415D/H3/SMD

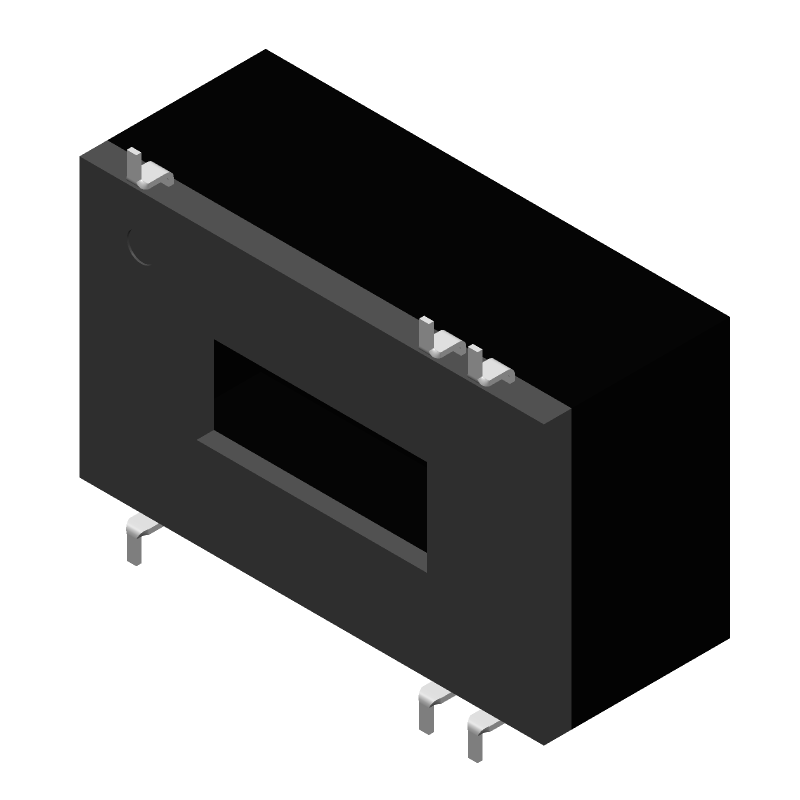

RW2-2415D/H3/SMD CAD Models
RW2-2415D/H3/SMD Part Data Attributes
|
|
RW2-2415D/H3/SMD
RECOM Power GmbH
Buy Now
Datasheet
|
Compare Parts:
RW2-2415D/H3/SMD
RECOM Power GmbH
DC-DC Regulated Power Supply Module, 2 Output, 1W, Hybrid, ROHS COMPLIANT, SMD-16/6
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RECOM POWER GMBH | |
| Part Package Code | SOIC | |
| Package Description | DMA, | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | RECOM Power | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Approvals | EN, IEC | |
| Control Mode | VOLTAGE-MODE | |
| Efficiency (Main Output) | 83% | |
| Input Voltage-Max | 36 V | |
| Input Voltage-Min | 18 V | |
| Input Voltage-Nom | 24 V | |
| JESD-30 Code | R-PDMA-G6 | |
| JESD-609 Code | e1 | |
| Length | 24.2 mm | |
| Line Regulation-Max | 0.5% | |
| Number of Functions | 1 | |
| Number of Outputs | 2 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.067 A | |
| Output Voltage-Max | 15.3 V | |
| Output Voltage-Min | 14.7 V | |
| Output Voltage-Nom | 15 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DMA | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | 245 | |
| Protections | OVER CURRENT | |
| Ripple Voltage (Main Out) | 0.17675 Vrms | |
| Seated Height-Max | 10.7 mm | |
| Surface Mount | YES | |
| Technology | HYBRID | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Total Power Output-Max | 2 W | |
| Trim/Adjustable Output | NO | |
| Width | 14.5 mm |
Alternate Parts for RW2-2415D/H3/SMD
This table gives cross-reference parts and alternative options found for RW2-2415D/H3/SMD. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RW2-2415D/H3/SMD, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| RW2-2415D/H3/B | RECOM Power GmbH | Check for Price | DC-DC Regulated Power Supply Module, 2 Output, 1W, Hybrid, ROHS COMPLIANT, MINI DIP-16/6 | RW2-2415D/H3/SMD vs RW2-2415D/H3/B |
| RW2-2415D/H2 | RECOM Power GmbH | Check for Price | DC-DC Regulated Power Supply Module, 2 Output, 1W, Hybrid, DIP-16/6 | RW2-2415D/H3/SMD vs RW2-2415D/H2 |
RW2-2415D/H3/SMD Frequently Asked Questions (FAQ)
-
RECOM Power Inc recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 1 square inch of copper area is recommended.
-
Yes, the RW2-2415D/H3/SMD is designed to withstand high vibrations and is suitable for use in industrial and transportation applications. However, it's recommended to follow the recommended PCB mounting and screw torque guidelines to ensure reliable operation.
-
To ensure EMC, RECOM Power Inc recommends using a suitable input filter, such as a pi-filter or a common-mode choke, and following proper PCB layout and grounding techniques. Additionally, the converter's metal case should be connected to the system's chassis ground.
-
The maximum allowable capacitance on the output of the RW2-2415D/H3/SMD is 2200uF. Exceeding this value may affect the converter's stability and performance.
-
Yes, multiple RW2-2415D/H3/SMD converters can be paralleled to increase the output power. However, it's recommended to follow RECOM Power Inc's guidelines for paralleling converters, including using a suitable current sharing scheme and ensuring that the converters are properly synchronized.
