RV1S2281ACCSP-10YC#KC0 Information
RV1S2281ACCSP-10YC#KC0 by Renesas Electronics Corporation is an Optocoupler.
Optocoupler are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| G8232410YCPEU | Amphenol Communications Solutions | Board mount - Header Receptacle - Box Header 2.0mm Pitch Vertical DIP,2x12Pin,Gold Flash,NY4T,Tail=2.1mm,With one Post,Color-Black,Tray | |
| G8232010YCPEU | Amphenol Communications Solutions | Board mount - Header Receptacle - Box Header 2.0mm Pitch Vertical DIP,2x10Pin,Gold Flash,NY4T,Tail=2.1mm,With one Post,Color-Black,Tray | |
| G8232810YCPEU | Amphenol Communications Solutions | Board mount - Header Plug - Box Header 2.0mm Pitch Vertical,2x14Pin,Gold Flash,NY4T,TAIL=2.1mm,With one Post |
Price & Stock for RV1S2281ACCSP-10YC#KC0
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
559-RV1S2281ACCSP-10YC#KC0CT-ND
|
DigiKey | OPTOISOLTR 5KV 1CH TRANS 4-LSSOP Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
7005 In Stock |
|
$0.2151 / $0.7100 | Buy Now |
|
DISTI #
RV1S2281ACCSP-10YC
|
Avnet Americas | Photocoupler 5000VRMS 4-Pin Surface Mount SSOP Emboss T/R - Tape and Reel (Alt: RV1S2281ACCSP-10YC) RoHS: Compliant Min Qty: 7000 Package Multiple: 3500 Lead time: 18 Weeks, 0 Days Container: Reel | 0 |
|
$0.3080 | Buy Now |
|
DISTI #
968-2281ACCSP10YCKC0
|
Mouser Electronics | Transistor Output Optocouplers OPTOCOUPLER 4PIN SSOP OTHER NIPDAU RoHS: Compliant | 0 |
|
$0.2150 / $0.7000 | Order Now |
|
DISTI #
RV1S2281ACCSP-10YC#KC0
|
Avnet Silica | Photocoupler 5000VRMS 4Pin Surface Mount SSOP Emboss TR (Alt: RV1S2281ACCSP-10YC#KC0) RoHS: Compliant Min Qty: 3500 Package Multiple: 3500 Lead time: 20 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Cytech Systems Limited | OPTOCOUPLER 4PIN SSOP OTHER NIPD | 7000 |
|
RFQ | |
|
DISTI #
RV1S2281ACCSP-10YC#KC0
|
EBV Elektronik | Photocoupler 5000VRMS 4Pin Surface Mount SSOP Emboss TR (Alt: RV1S2281ACCSP-10YC#KC0) RoHS: Compliant Min Qty: 3500 Package Multiple: 3500 Lead time: 20 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for RV1S2281ACCSP-10YC#KC0

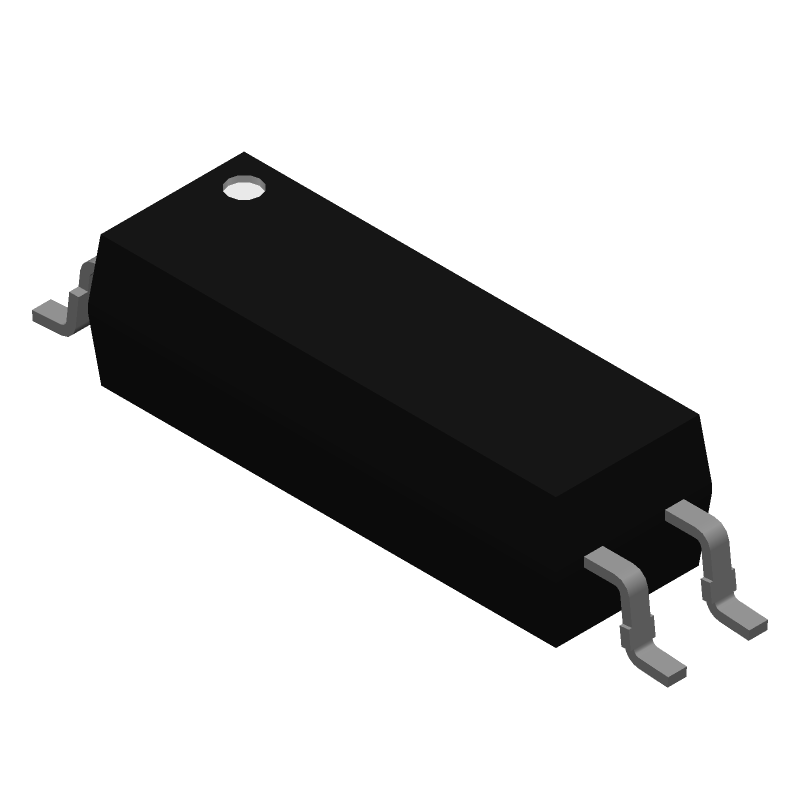

RV1S2281ACCSP-10YC#KC0 CAD Models
RV1S2281ACCSP-10YC#KC0 Part Data Attributes
|
|
RV1S2281ACCSP-10YC#KC0
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
RV1S2281ACCSP-10YC#KC0
Renesas Electronics Corporation
DC Input/Single Transistor Output Photocouplers (Optocouplers), , /
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Package Description | LSSOP-4 | |
| Manufacturer Package Code | PRSP0004NN | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.40.80.00 | |
| Factory Lead Time | 18 Weeks | |
| Date Of Intro | 2019-12-10 | |
| Samacsys Manufacturer | Renesas Electronics | |
| Additional Feature | UL APPROVED | |
| Coll-Emtr Bkdn Voltage-Min | 80 V | |
| Configuration | SINGLE | |
| Current Transfer Ratio-Min | 50% | |
| Current Transfer Ratio-Nom | 200% | |
| Dark Current-Max | 100 nA | |
| Forward Current-Max | 0.03 A | |
| Forward Voltage-Max | 1.4 V | |
| Isolation Voltage-Max | 5000 V | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Elements | 1 | |
| On-State Current-Max | 0.03 A | |
| Operating Temperature-Max | 115 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | TRANSISTOR OUTPUT OPTOCOUPLER | |
| Packing Method | TR, EMBOSSED, 13 INCH | |
| Power Dissipation-Max | 0.12 W | |
| Surface Mount | YES |
