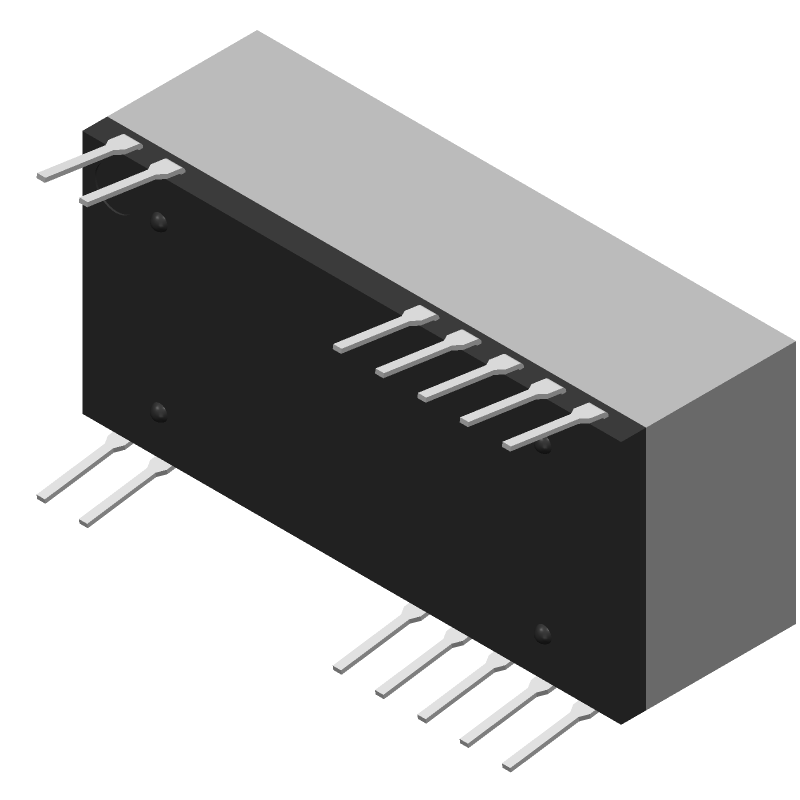

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RV-3.309D/P by RECOM Power GmbH
Results Overview of RV-3.309D/P by RECOM Power GmbH
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
RV-3.309D/P Information
RV-3.309D/P by RECOM Power GmbH is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for RV-3.309D/P
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
64X0675
|
Newark | 2W Dc/Dc-Converter Econoline Dip24 Mini 6Kv Unreg |Recom Power RV-3.309D/P RoHS: Not Compliant Min Qty: 15 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$25.0700 / $31.5200 | Buy Now |
|
DISTI #
RV-3.309D/P-ND
|
DigiKey | DC DC CONVERTER +/-9V 2W Min Qty: 15 Lead time: 16 Weeks Container: Tube | Temporarily Out of Stock |
|
$23.5953 | Buy Now |
|
DISTI #
919-RV-3.309DP
|
Mouser Electronics | Isolated DC/DC Converters - Through Hole 2W DC/DC MIN 6kV UNREG 3.3Vin +/-9out RoHS: Compliant | 0 |
|
$22.1700 / $27.1000 | Order Now |
|
DISTI #
72162827
|
RS | DC-DC Converter, DIP24, Mini 6kV, unre, Dual,2W,+/-09V, +/-111mA, RV-S_D Series Min Qty: 15 Package Multiple: 1 Lead time: 16 Weeks, 0 Days Container: Bulk | 0 |
|
$24.9500 / $28.3500 | RFQ |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$19.2500 / $25.2800 | Buy Now |
|
DISTI #
000000000006066975
|
Sager | Isolated DC/DC Converters - Through Hole 2W DC/DC MIN 6kV UNREG 3.3Vin +/-9out Min Qty: 1 | 0 |
|
$20.9400 / $24.4400 | Buy Now |
Part Details for RV-3.309D/P
RV-3.309D/P CAD Models
RV-3.309D/P Part Data Attributes
|
|
RV-3.309D/P
RECOM Power GmbH
Buy Now
Datasheet
|
Compare Parts:
RV-3.309D/P
RECOM Power GmbH
DC-DC Unregulated Power Supply Module, 2 Output, 2W, Hybrid, ROHS COMPLIANT, DIP-24/14
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RECOM POWER GMBH | |
| Package Description | DIP-24/14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | RECOM Power | |
| Additional Feature | -9 VLOT OUTPUT ALSO AVAILABLE | |
| Analog IC - Other Type | DC-DC UNREGULATED POWER SUPPLY MODULE | |
| Approvals | UL, CSA, EN, IEC | |
| Control Mode | VOLTAGE-MODE | |
| Efficiency (Main Output) | 75% | |
| Input Voltage-Max | 3.63 V | |
| Input Voltage-Min | 2.97 V | |
| Input Voltage-Nom | 3.3 V | |
| JESD-30 Code | R-PDMA-T14 | |
| Length | 32.35 mm | |
| Load Regulation-Max | 10% | |
| Number of Functions | 1 | |
| Number of Outputs | 2 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 90 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.111 A | |
| Output Voltage-Max | 9.45 V | |
| Output Voltage-Min | 8.55 V | |
| Output Voltage-Nom | 9 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DMA | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Protections | OVER CURRENT | |
| Qualification Status | Not Qualified | |
| Ripple Voltage (Main Out) | 0.0707 Vrms | |
| Seated Height-Max | 11.6 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 2 W | |
| Trim/Adjustable Output | NO | |
| Width | 14.4 mm |
