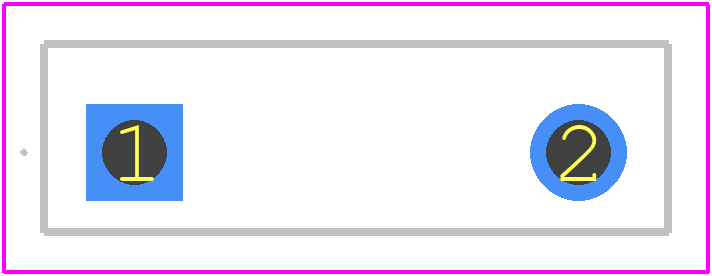

Footprint
-

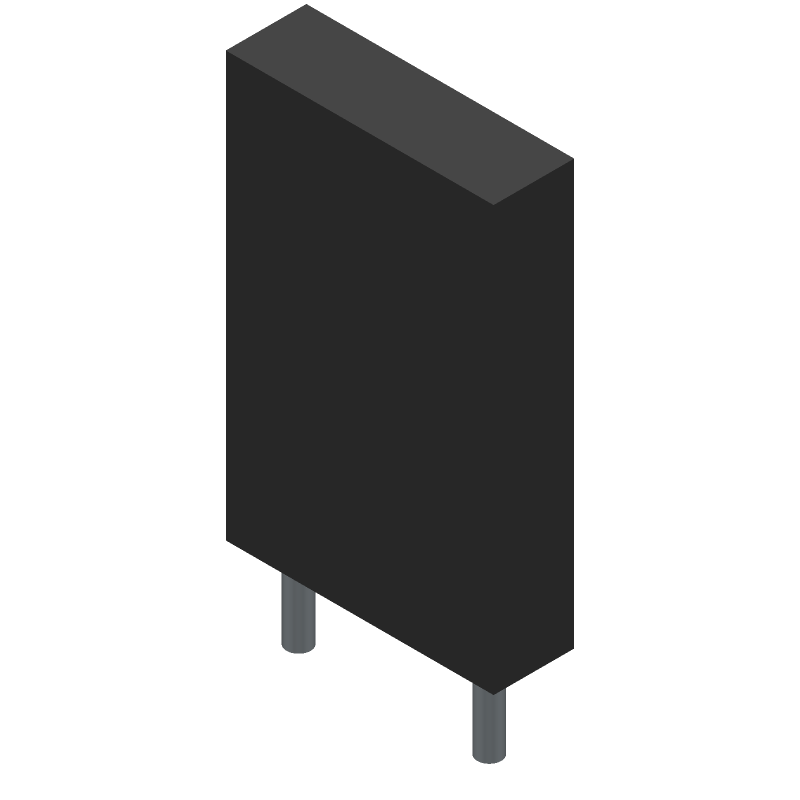

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RURG5060-F085 by onsemi
Results Overview of RURG5060-F085 by onsemi
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Energy and Power Systems
RURG5060-F085 Information
RURG5060-F085 by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for RURG5060-F085
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
RURG5060-F085-ND
|
DigiKey | DIODE AVALANCHE 600V 50A TO2472 Min Qty: 1 Lead time: 19 Weeks Container: Tube |
49 In Stock |
|
$2.4899 / $5.4800 | Buy Now |
|
DISTI #
512-RURG5060_F085
|
Mouser Electronics | Rectifiers 50A, 600V Ultrafast Diode RoHS: Compliant | 258 |
|
$2.4800 / $5.4500 | Buy Now |
|
DISTI #
79354916
|
Verical | Diode Switching 600V 50A 2-Pin(2+Tab) TO-247 Tube Automotive AEC-Q101 Min Qty: 450 Package Multiple: 450 | Americas - 450 |
|
$2.5051 | Buy Now |
|
DISTI #
RURG5060-F085
|
Avnet Silica | Diode Switching 600V 50A 2Pin TO247 Rail (Alt: RURG5060-F085) RoHS: Compliant Min Qty: 30 Package Multiple: 30 Lead time: 20 Weeks, 0 Days | Silica - 450 |
|
Buy Now | |
|
|
Cytech Systems Limited | DIODE GEN PURP 600V 50A TO247-2 | 3000 |
|
RFQ | |
|
DISTI #
RURG5060-F085
|
EBV Elektronik | Diode Switching 600V 50A 2Pin TO247 Rail (Alt: RURG5060-F085) RoHS: Compliant Min Qty: 30 Package Multiple: 30 Lead time: 21 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 30 | 360 |
|
$3.8700 / $4.1800 | Buy Now |
Part Details for RURG5060-F085
RURG5060-F085 CAD Models
RURG5060-F085 Part Data Attributes
|
|
RURG5060-F085
onsemi
Buy Now
Datasheet
|
Compare Parts:
RURG5060-F085
onsemi
600V, 50A, 1.28V, TO-247 (2-lead) Ultrafast Diode, TO-247 2L, 450-TUBE, Automotive Qualified
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | TO-247 2L | |
| Package Description | TO-247AB, 3/2 PIN | |
| Manufacturer Package Code | 340CL | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 19 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | FREE WHEELING DIODE | |
| Application | ULTRA FAST SOFT RECOVERY POWER | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON NITRIDE | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.6 V | |
| JEDEC-95 Code | TO-247AB | |
| JESD-30 Code | R-PSFM-T2 | |
| JESD-609 Code | e3 | |
| Non-rep Pk Forward Current-Max | 150 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 50 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Reference Standard | AEC-Q101 | |
| Rep Pk Reverse Voltage-Max | 600 V | |
| Reverse Current-Max | 250 µA | |
| Reverse Recovery Time-Max | 0.09 µs | |
| Surface Mount | NO | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
RURG5060-F085 Frequently Asked Questions (FAQ)
-
A 2-layer PCB with a thermal relief pattern on the bottom layer and a solid ground plane on the top layer is recommended. This layout helps to dissipate heat efficiently and reduces thermal resistance.
-
Ensure proper heat sinking, use a thermally conductive material for the PCB, and consider using a heat sink or thermal interface material. Also, follow the recommended operating temperature range and derate the device accordingly.
-
The maximum allowed voltage transient on the input pins is ±500 mV. Exceeding this limit may cause damage to the device or affect its reliability.
-
Yes, but ensure that the switching frequency is within the recommended range (up to 1 MHz). Also, consider the device's power losses, thermal performance, and electromagnetic interference (EMI) when designing the application.
-
Use a shielded enclosure, keep the PCB layout compact, and use a common-mode choke or ferrite bead to filter out high-frequency noise. Also, ensure proper grounding and decoupling of the device.
