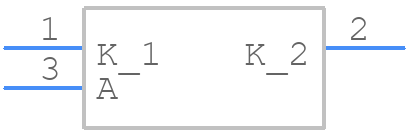

Part Symbol
-
Footprint
-

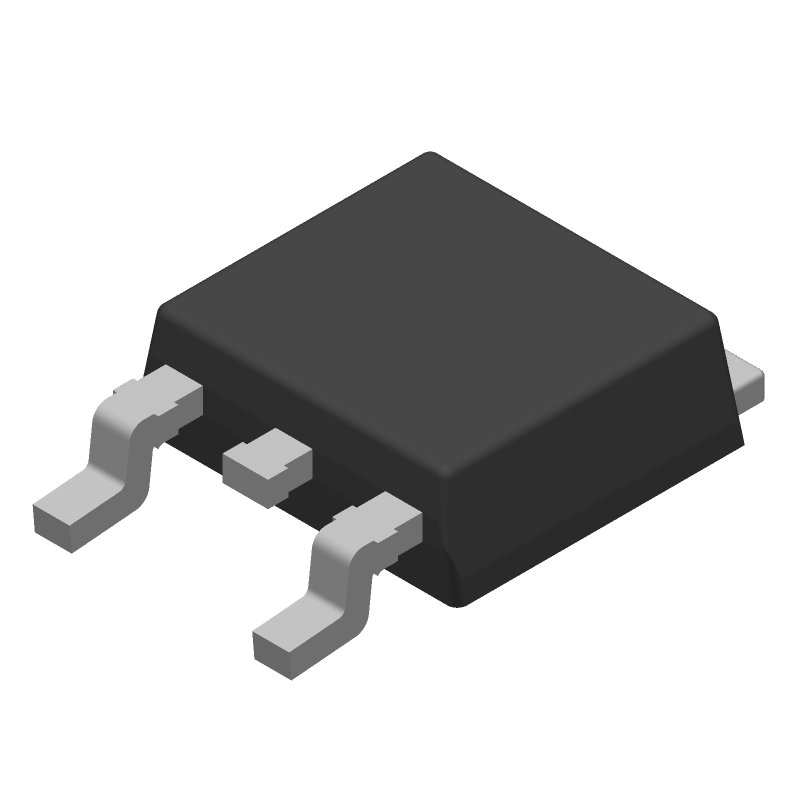

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RURD4120S9A-F085 by onsemi
Results Overview of RURD4120S9A-F085 by onsemi
- Distributor Offerings: (16 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
RURD4120S9A-F085 Information
RURD4120S9A-F085 by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for RURD4120S9A-F085
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
54AH9582
|
Newark | Rectifier, Single, 1.2Kv, 4A, To-252 Rohs Compliant: Yes |Onsemi RURD4120S9A-F085 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 7388 |
|
$0.8660 / $1.3300 | Buy Now |
|
DISTI #
48AC1458
|
Newark | 1200V, 4A, 2.1V, DpakUltrafast Diode/ Reel Rohs Compliant: Yes |Onsemi RURD4120S9A-F085 RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.4580 / $0.6080 | Buy Now |
|
DISTI #
RURD4120S9A-F085CT-ND
|
DigiKey | DIODE AVALANCHE 1200V 4A TO252AA Min Qty: 1 Lead time: 15 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
641 In Stock |
|
$0.4178 / $1.1200 | Buy Now |
|
DISTI #
RURD4120S9A-F085
|
Avnet Americas | Diode Switching 1.2KV 4A 3-Pin(2+Tab) TO-252 T/R - Tape and Reel (Alt: RURD4120S9A-F085) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 15 Weeks, 0 Days Container: Reel | 0 |
|
$0.4312 / $0.4707 | Buy Now |
|
DISTI #
512-RURD4120S9A_F085
|
Mouser Electronics | Small Signal Switching Diodes 4A 1200V Ultrafast RoHS: Compliant | 9642 |
|
$0.4170 / $1.1200 | Buy Now |
|
|
Onlinecomponents.com | Rectifier Diode, Avalanche, 1 Phase, 1 Element, 4A, 600V V(RRM), Silicon, TO-251 RoHS: Compliant | 0 |
|
$0.4003 / $0.4285 | Buy Now |
|
DISTI #
RURD4120S9A-F085
|
IBS Electronics | RECTIFIER DIODE AVALANCHE 1 PHASE 1 ELEMENT 4A 600V V(RRM) SILICON TO-251 Min Qty: 2500 Package Multiple: 1 | 0 |
|
$0.5460 | Buy Now |
|
DISTI #
RURD4120S9AF085
|
Richardson RFPD | RECTIFIER MODULE - FAST RECOVERY/FRED RoHS: Compliant Min Qty: 2500 | 0 |
|
$0.4200 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 5642 |
|
RFQ | |
|
DISTI #
RURD4120S9A-F085
|
Avnet Asia | Diode Switching 1.2KV 4A 3-Pin(2+Tab) TO-252 T/R (Alt: RURD4120S9A-F085) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 15 Weeks, 0 Days | 0 |
|
$0.3932 / $0.4397 | Buy Now |
Part Details for RURD4120S9A-F085
RURD4120S9A-F085 CAD Models
RURD4120S9A-F085 Part Data Attributes
|
|
RURD4120S9A-F085
onsemi
Buy Now
Datasheet
|
Compare Parts:
RURD4120S9A-F085
onsemi
1200V, 4A, 2.1V, DPAK Ultrafast Diode, TO-252 3L (DPAK), 2500-REEL, Automotive Qualified
|
| Pbfree Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ON SEMICONDUCTOR | |
| Part Package Code | TO-252 3L (DPAK) | |
| Package Description | ROHS COMPLIANT PACKAGE-2 | |
| Manufacturer Package Code | 369AS | |
| Reach Compliance Code | not_compliant | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Configuration | SINGLE | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.9 V | |
| Non-rep Pk Forward Current-Max | 40 A | |
| Number of Elements | 1 | |
| Operating Temperature-Max | 175 °C | |
| Output Current-Max | 4 A | |
| Rep Pk Reverse Voltage-Max | 1200 V | |
| Reverse Recovery Time-Max | 0.09 µs | |
| Surface Mount | YES |
