RUEF600 Information

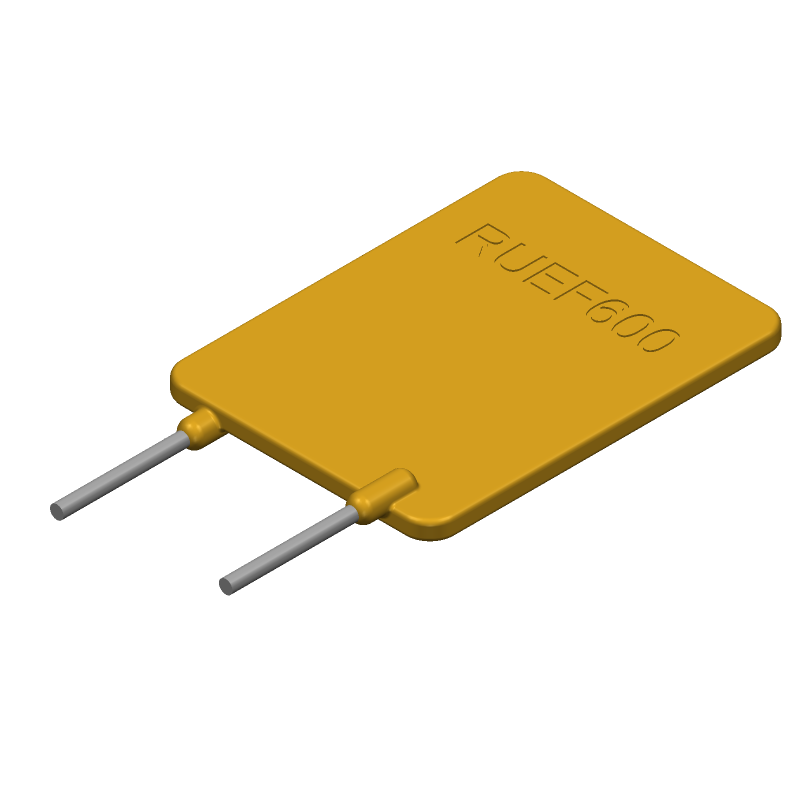

RUEF600 by Littelfuse Inc is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for RUEF600
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
04H8003
|
Newark | Fuse, Ptc Reset, 30V, 6A, Radial, Product Range:Polyswitch Ruef Series, Voltage Rating:30Vdc, Holding Current:6A, Trip Current:12A, Time To Trip:16S, Fuse Shape:Rectangular, Current Rating Max:100A, Lead Spacing:10.9Mm, Diameter:- Rohs Compliant: Yes |Littelfuse RUEF600 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 615 |
|
$0.3780 / $0.8430 | Buy Now |
|
DISTI #
RUEF600HF-ND
|
DigiKey | PTC RESET FUSE 30V 6A RADIAL Min Qty: 1 Lead time: 15 Weeks Container: Bag |
14565 In Stock |
|
$0.3300 / $0.8600 | Buy Now |
|
DISTI #
650-RUEF600
|
Mouser Electronics | Resettable Fuses - PPTC 6A 30V 100A Imax RoHS: Compliant | 3426 |
|
$0.3300 / $0.8600 | Buy Now |
|
|
Future Electronics | RUEF Series 30 V 6 A Ihold Through Hole Radial PolySwitch Resettable Fuse RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Container: Bag | 9361Bag |
|
$0.3300 / $0.3750 | Buy Now |
|
|
Bristol Electronics | Min Qty: 6 | 202 |
|
$0.3375 / $0.9000 | Buy Now |
|
|
Bristol Electronics | 127 |
|
RFQ | ||
|
|
Quest Components | RESISTOR, TEMPERATURE DEPENDENT, PTC RESETTABLE FUSE, 0.04 OHM, THROUGH HOLE MOUNT | 1708 |
|
$0.6808 / $1.9450 | Buy Now |
|
|
Quest Components | RESISTOR, TEMPERATURE DEPENDENT, PTC RESETTABLE FUSE, 0.04 OHM, THROUGH HOLE MOUNT | 161 |
|
$0.3600 / $1.2000 | Buy Now |
|
|
Quest Components | RESISTOR, TEMPERATURE DEPENDENT, PTC RESETTABLE FUSE, 0.04 OHM, THROUGH HOLE MOUNT | 14 |
|
$0.5750 / $0.6900 | Buy Now |
|
DISTI #
RUEF600
|
TTI | Resettable Fuses - PPTC 6A 30V 100A Imax RoHS: Compliant pbFree: Pb-Free Min Qty: 50 Package Multiple: 50 Container: Bulk |
Americas - 9100 In Stock |
|
$0.3930 / $0.4340 | Buy Now |
Part Details for RUEF600
RUEF600 CAD Models
RUEF600 Part Data Attributes
|
|
RUEF600
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
RUEF600
Littelfuse Inc
PTC Resettable Fuse, 0.04ohm, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.40.80.70 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Additional Feature | Rmin@25 Deg Cel | |
| Circuit RMS Voltage-Max | 30 V | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 24.1 mm | |
| Package Length | 16.5 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | Radial | |
| Package Width | 3 mm | |
| Packing Method | BULK | |
| Reference Standard | CQC; CSA; TUV; UL | |
| Resistance | 0.005 Ω | |
| Resistor Type | PTC RESETTABLE FUSE | |
| Surface Mount | NO | |
| Terminal Placement | RADIAL | |
| Terminal Shape | WIRE | |
| Thermistor Application | OVERCURRENT PROTECTION | |
| Working Voltage | 30 V |
