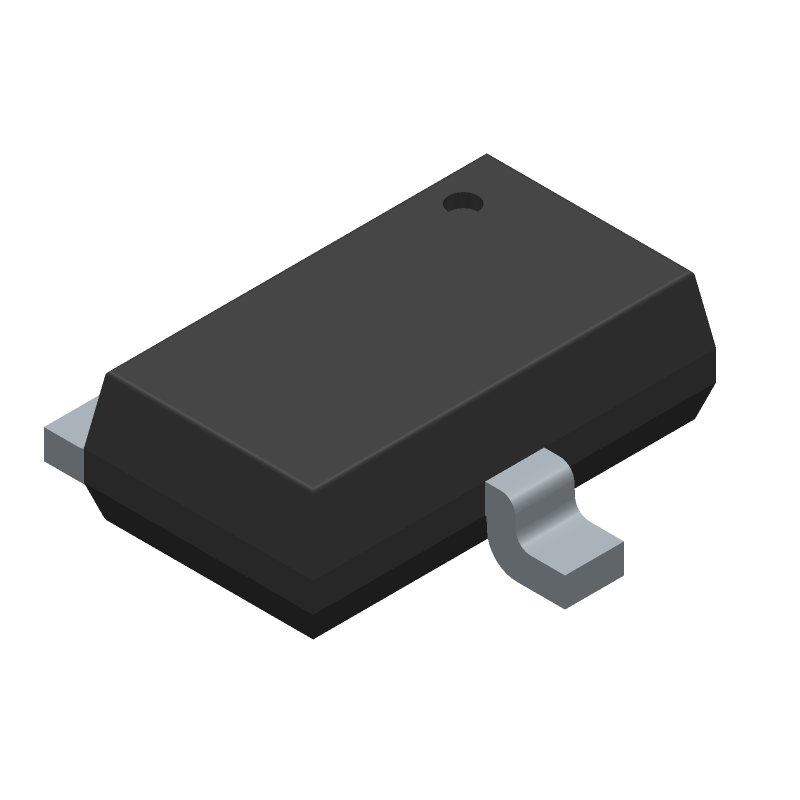

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RTR025N03TL by ROHM Semiconductor
Results Overview of RTR025N03TL by ROHM Semiconductor
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Medical Imaging
Automotive
Robotics and Drones
RTR025N03TL Information
RTR025N03TL by ROHM Semiconductor is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for RTR025N03TL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
RTR025N03TLCT-ND
|
DigiKey | MOSFET N-CH 30V 2.5A TSMT3 Min Qty: 1 Lead time: 21 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
550 In Stock |
|
$0.2525 / $0.7200 | Buy Now |
|
|
Quest Components | 2500 mA, 30 V, N-CHANNEL, Si, SMALL SIGNAL, MOSFET | 933 |
|
$0.5660 / $1.4150 | Buy Now |
|
|
Quest Components | 2500 mA, 30 V, N-CHANNEL, Si, SMALL SIGNAL, MOSFET | 46 |
|
$0.2813 / $0.3375 | Buy Now |
|
|
ComSIT USA | Trans MOSFET N-CH Si 30V 2.5A 3-Pin TSMT T/R ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
RTR025N03TL
|
Avnet Asia | Trans MOSFET N-CH 30V 2.5A 3-Pin TSMT T/R (Alt: RTR025N03TL) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 | 0 |
|
RFQ | |
|
|
LCSC | 30V 2.5A 92m4.5V2.5A 1W 1.5V 1 N-channel TSMT-3 MOSFETs ROHS | 1020 |
|
$0.0648 / $0.1477 | Buy Now |
Part Details for RTR025N03TL
RTR025N03TL CAD Models
RTR025N03TL Part Data Attributes
|
|
RTR025N03TL
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
RTR025N03TL
ROHM Semiconductor
Small Signal Field-Effect Transistor, 2.5A I(D), 30V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TSMT3, 3 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | End Of Life | |
| Ihs Manufacturer | ROHM CO LTD | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 30 V | |
| Drain Current-Max (ID) | 2.5 A | |
| Drain-source On Resistance-Max | 0.133 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e1 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 1 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
