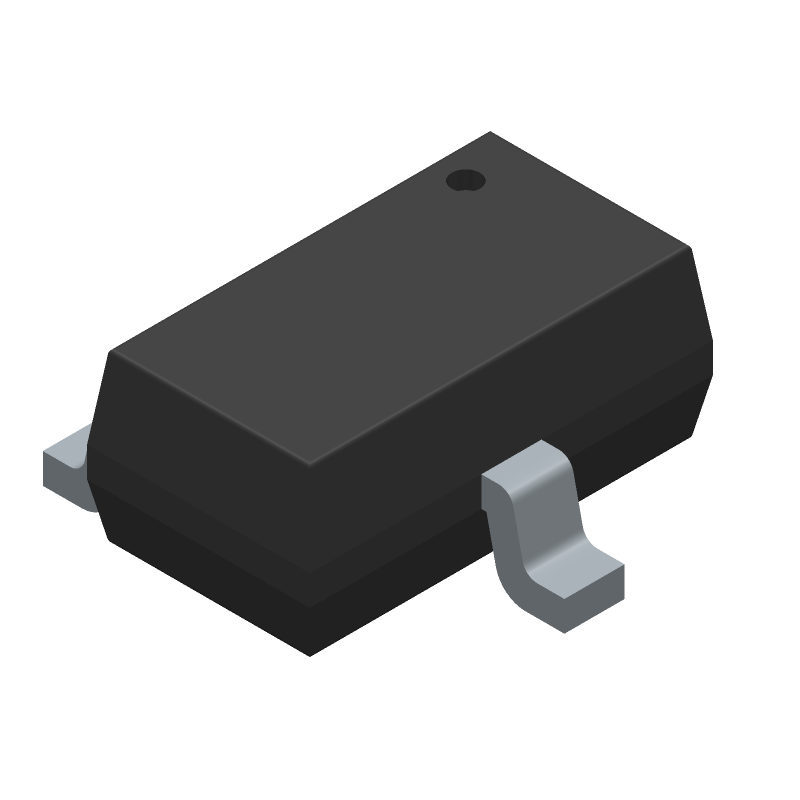

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RT9818C-42GV by Richtek Technology Corp
Results Overview of RT9818C-42GV by Richtek Technology Corp
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (7 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
RT9818C-42GV Information
RT9818C-42GV by Richtek Technology Corp is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for RT9818C-42GV
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1028-1021-1-ND
|
DigiKey | IC SUPERVISOR 1 CHANNEL SOT23-3 Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
5965 In Stock |
|
$0.1329 / $0.8100 | Buy Now |
|
DISTI #
835-RT9818C-42GV
|
Mouser Electronics | Supervisory Circuits Micro-Power Voltage Detectors RoHS: Compliant | 2611 |
|
$0.1330 / $0.8000 | Buy Now |
Part Details for RT9818C-42GV
RT9818C-42GV CAD Models
RT9818C-42GV Part Data Attributes
|
|
RT9818C-42GV
Richtek Technology Corp
Buy Now
Datasheet
|
Compare Parts:
RT9818C-42GV
Richtek Technology Corp
Micro-Power Voltage Detectors, SOT23-3
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RICHTEK TECHNOLOGY CORP | |
| Part Package Code | SOT23-3 | |
| Package Description | SOT-23, 3 PIN | |
| Manufacturer Package Code | SOT23-3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | RICHTEK | |
| Additional Feature | BAT BUP SW:N;MNL RST:N;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:N;WWD:N | |
| Adjustable Threshold | NO | |
| Analog IC - Other Type | VOLTAGE DETECTOR | |
| JESD-30 Code | R-PDSO-G3 | |
| Length | 2.8955 mm | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 1.295 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 0.9 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Threshold Voltage-Nom | +4.2V | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 1.6 mm |
