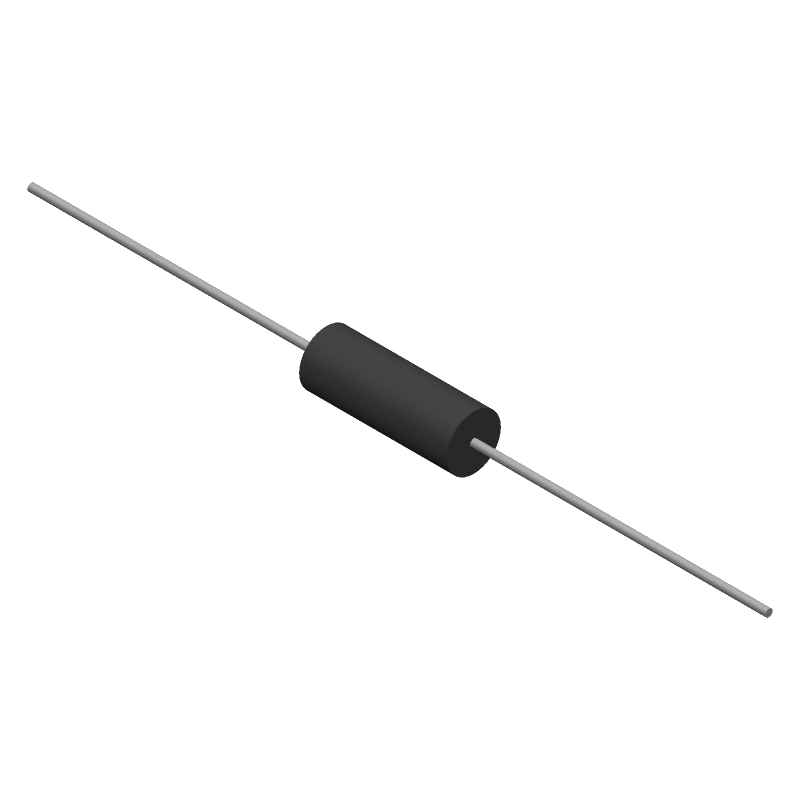

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RSF2JB110K by SEI Stackpole Electronics Inc
Results Overview of RSF2JB110K by SEI Stackpole Electronics Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
RSF2JB110K Information
RSF2JB110K by SEI Stackpole Electronics Inc is a Metal Oxide Film Resistor.
Metal Oxide Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for RSF2JB110K
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
RSF2JB110K-ND
|
DigiKey | RES 110K OHM 5% 2W AXIAL Min Qty: 1000 Lead time: 22 Weeks Container: Bulk | Temporarily Out of Stock |
|
$0.0473 | Buy Now |
|
DISTI #
RSF2JB110K
|
Avnet Americas | - Bulk (Alt: RSF2JB110K) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 22 Weeks, 0 Days Container: Bulk | 0 |
|
$0.0536 / $0.0571 | Buy Now |
|
DISTI #
708-RSF2JB110K
|
Mouser Electronics | Metal Oxide Resistors RES, MO, 2W, 110 Kohm, 5% RoHS: Compliant | 0 |
|
$0.0480 | Order Now |
|
|
Onlinecomponents.com | General Purpose Metal Oxide Resistor - 110 kohm ±5% - 2W - Body: 15.00 x 5.50mm Dia - Thru Hole RoHS: Compliant | 0 |
|
$0.0648 / $0.0962 | Buy Now |
|
|
NAC | RESISTOR, MO, 2W, 110 Kohm, 5% - Metal Oxide Resistor RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 | 0 |
|
$0.1000 / $0.1330 | Buy Now |
Part Details for RSF2JB110K
RSF2JB110K CAD Models
RSF2JB110K Part Data Attributes
|
|
RSF2JB110K
SEI Stackpole Electronics Inc
Buy Now
Datasheet
|
Compare Parts:
RSF2JB110K
SEI Stackpole Electronics Inc
Fixed Resistor, Metal Oxide Film, 2W, 110000ohm, 350V, 5% +/-Tol, 200ppm/Cel, Through Hole Mount, AXIAL LEADED
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STACKPOLE ELECTRONICS INC | |
| Package Description | AXIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.90 | |
| Factory Lead Time | 22 Weeks | |
| Samacsys Manufacturer | Stackpole Electronics, Inc. | |
| Additional Feature | FLAMEPROOF | |
| Construction | Tubular | |
| JESD-609 Code | e3 | |
| Lead Diameter | 0.75 mm | |
| Lead Length | 30 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 235 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Diameter | 5.5 mm | |
| Package Length | 15 mm | |
| Package Shape | TUBULAR PACKAGE | |
| Package Style | Axial | |
| Packing Method | BULK | |
| Rated Power Dissipation (P) | 2 W | |
| Rated Temperature | 70 °C | |
| Resistance | 110000 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Surface Mount | NO | |
| Technology | METAL OXIDE FILM | |
| Temperature Coefficient | 200 ppm/°C | |
| Terminal Finish | MATTE TIN | |
| Terminal Shape | WIRE | |
| Tolerance | 5% | |
| Working Voltage | 350 V |
