Capacitors / Aluminum Electrolytic Capacitors / RS80J561MDNASQJT
Datasheets
RS80J561MDNASQJT by: Nichicon Corporation

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 6.3V, 20% +Tol, 20% -Tol, 560uF

Part Details for RS80J561MDNASQJT by Nichicon Corporation

Results Overview of RS80J561MDNASQJT by Nichicon Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Aerospace and Defense Transportation and Logistics Renewable Energy Automotive Robotics and Drones

RS80J561MDNASQJT Information

RS80J561MDNASQJT by Nichicon Corporation is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for RS80J561MDNASQJT

Part # Distributor Description Stock Price Buy
DISTI # 79R3125
Newark Aluminum Electrolytic Capacitor, 560Uf, 6.3V, 20%, Radial, Capacitance:560Μf, Voltage(Dc):6.3V, Capacitor Case/Package:Radial Leaded, Esr:0.008Ohm, Lifetime @ Temperature:5000 Hours @ 125°C, Capacitance Tolerance:± 20% Rohs Compliant: Yes |Nichicon RS80J561MDNASQJT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 3010
  • 1 $0.2470
  • 10 $0.2470
  • 25 $0.2470
  • 50 $0.2470
  • 100 $0.2470
  • 250 $0.2470
$0.2470 Buy Now
DISTI # 79R0725
Newark Aluminum Electrolytic Capacitor, 560Uf, 6.3V, 20%, Radial, Full Reel, Capacitance:560Μf, Voltage(Dc):6.3V, Capacitor Case/Package:Radial Leaded, Esr:0.008Ohm, Lifetime @ Temperature:5000 Hours @ 125°C, Capacitance Tolerance:± 20% Rohs Compliant: Yes |Nichicon RS80J561MDNASQJT RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 2,000 $0.3180
$0.3180 Buy Now
DISTI # 493-4043-1-ND
DigiKey CAP ALUM POLY 560UF 20% 6.3V TH Min Qty: 1 Lead time: 16 Weeks Container: Cut Tape (CT), Tape & Box (TB) 4692
In Stock
  • 1 $1.2300
  • 10 $0.7870
  • 50 $0.6022
  • 100 $0.5437
  • 500 $0.4430
  • 1,000 $0.4113
  • 2,000 $0.3849
  • 4,000 $0.3630
  • 6,000 $0.3520
  • 10,000 $0.3396
  • 14,000 $0.3324
  • 20,000 $0.3254
$0.3254 / $1.2300 Buy Now
DISTI # 647-RS80J561MDNASQJT
Mouser Electronics Aluminum Organic Polymer Capacitors 560uF 6.3 Volts 20% RoHS: Compliant 731
  • 1 $1.1500
  • 10 $0.5740
  • 100 $0.5180
  • 500 $0.4220
  • 1,000 $0.3920
  • 2,000 $0.3340
  • 4,000 $0.3160
  • 10,000 $0.3090
$0.3090 / $1.1500 Buy Now
DISTI # 70188115
RS Aluminum Electrolytic Capacitor, 560uF 6.3 V Polymer, S8 Series 5000h 6.3 x 8mm Min Qty: 2000 Package Multiple: 1 Container: Bulk 0
  • 2,000 $0.7400
  • 20,000 $0.7000
  • 100,000 $0.6700
  • 200,000 $0.6300
$0.6300 / $0.7400 RFQ
Onlinecomponents.com   RoHS: Compliant 13920 Partner Stock
  • 250 $0.2907
  • 1,300 $0.2785
  • 5,200 $0.2683
  • 13,600 $0.2560
  • 42,200 $0.2468
$0.2468 / $0.2907 Buy Now
DISTI # 32350845
Verical Cap Aluminum Polymer 560uF 6.3VDC 20%( 6.3 X 8mm) Radial 2.5mm 0.008 Ohm 5A 5000h 105°C T/R RoHS: Compliant Min Qty: 203 Package Multiple: 1 Americas - 3010
  • 203 $0.6084
$0.6084 Buy Now
DISTI # RS80J561MDNASQJT
TTI Aluminum Organic Polymer Capacitors 560uF 6.3 Volts 20% RoHS: Compliant pbFree: Pb-Free Min Qty: 2000 Package Multiple: 2000 Container: Ammo Pack Americas - 10000
In Stock
  • 2,000 $0.4180
  • 4,000 $0.4100
  • 6,000 $0.4020
  • 10,000 $0.3940
$0.3940 / $0.4180 Buy Now
DISTI # RS80J561MDNASQJT
Avnet Abacus Aluminum Polymer Capacitor 560 uF 63 V 20 Radial Leaded Through Hole (Alt: RS80J561MDNASQJT) RoHS: Compliant Min Qty: 20000 Package Multiple: 2000 Lead time: 21 Weeks, 0 Days Abacus - 0
Buy Now
New Advantage Corporation R8 Series 560 uF 6.3 V 20% Through Hole Polymer Aluminum Electrolytic Capacitor RoHS: Compliant Min Qty: 1 Package Multiple: 2000 4000
  • 2,000 $0.4167
  • 4,000 $0.3846
$0.3846 / $0.4167 Buy Now

Part Details for RS80J561MDNASQJT

RS80J561MDNASQJT CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

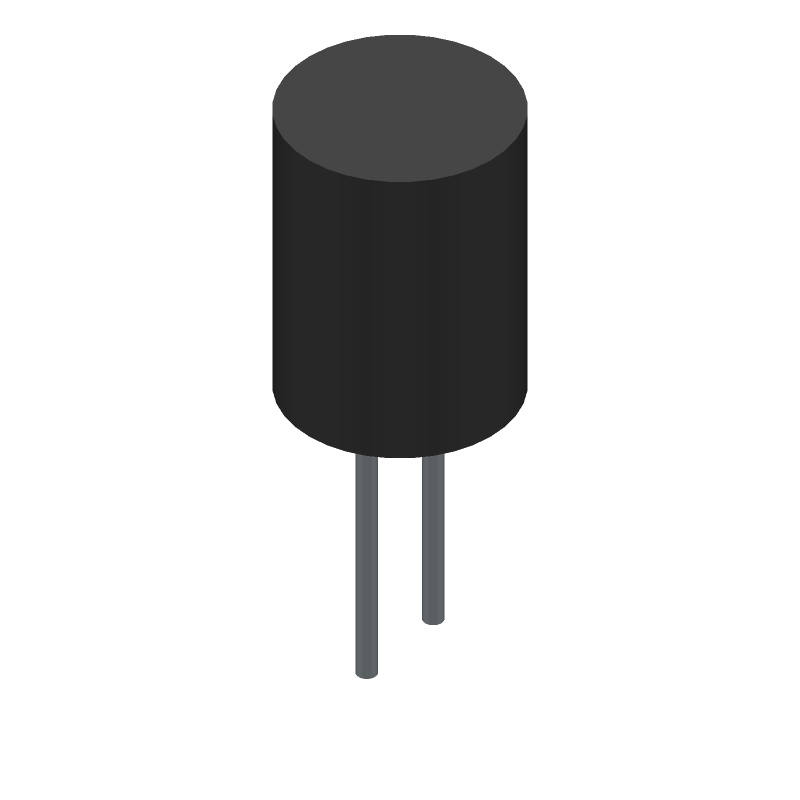

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

RS80J561MDNASQJT Part Data Attributes

Parametric Data
RS80J561MDNASQJT Nichicon Corporation
Buy Now Datasheet
Compare Parts:
RS80J561MDNASQJT Nichicon Corporation Aluminum Electrolytic Capacitor, Polarized, Aluminum, 6.3V, 20% +Tol, 20% -Tol, 560uF
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NICHICON CORP
Package Description RADIAL LEADED
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.22.00
Samacsys Manufacturer Nichicon
Additional Feature ESR IS MEASURED AT 100 KHZ
Capacitance 560 µF
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Diameter 6.3 mm
Dielectric Material ALUMINUM (SOLID POLYMER)
ESR 8 mΩ
JESD-609 Code e3
Leakage Current 0.882 mA
Length 8 mm
Mounting Feature THROUGH HOLE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -55 °C
Package Style Radial
Packing Method AMMO PACK
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 6.3 V
Ripple Current 500 mA
Surface Mount NO
Tan Delta 0.1
Terminal Finish TIN
Terminal Pitch 2.5 mm
Terminal Shape WIRE

Alternate Parts for RS80J561MDNASQJT

This table gives cross-reference parts and alternative options found for RS80J561MDNASQJT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RS80J561MDNASQJT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
APSE6R3ELL561MF08S Chemi-Con Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 6.3V, 20% +Tol, 20% -Tol, 560uF, Through Hole Mount, RADIAL LEADED, HALOGEN FREE AND ROHS COMPLIANT RS80J561MDNASQJT vs APSE6R3ELL561MF08S
A750EK567M0JCAE018 KEMET Corporation Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 6.3V, 20% +Tol, 20% -Tol, 560uF, Through Hole Mount, RADIAL LEADED RS80J561MDNASQJT vs A750EK567M0JCAE018
RPA0608561M006K Kyocera AVX Components Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 6.3V, 20% +Tol, 20% -Tol, 560uF, Through Hole Mount, RADIAL LEADED RS80J561MDNASQJT vs RPA0608561M006K
A750EK567M0JDAE018 KEMET Corporation Check for Price Aluminum Electrolytic Capacitor, Aluminum (solid Polymer), RS80J561MDNASQJT vs A750EK567M0JDAE018
RS80J561MDN1JT Nichicon Corporation Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 6.3V, 20% +Tol, 20% -Tol, 560uF RS80J561MDNASQJT vs RS80J561MDN1JT
RPF0608561M006B Kyocera AVX Components $0.1330 Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 6.3V, 20% +Tol, 20% -Tol, 560uF, Through Hole Mount, RADIAL LEADED RS80J561MDNASQJT vs RPF0608561M006B
FP-6R3RE561M-S8JT-5K Nichicon Corporation Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 6.3V, 20% +Tol, 20% -Tol, 560uF RS80J561MDNASQJT vs FP-6R3RE561M-S8JT-5K
RS80J561MDNASQCG Nichicon Corporation Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 6.3V, 20% +Tol, 20% -Tol, 560uF, Through Hole Mount, RADIAL LEADED, HALOGEN FREE AND ROHS COMPLIANT RS80J561MDNASQJT vs RS80J561MDNASQCG
RPA0608561M006B Kyocera AVX Components $0.2050 Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 6.3V, 20% +Tol, 20% -Tol, 560uF, Through Hole Mount, RADIAL LEADED RS80J561MDNASQJT vs RPA0608561M006B
APSE6R3ETD561MF08S Chemi-Con Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 6.3V, 20% +Tol, 20% -Tol, 560uF, Through Hole Mount, RADIAL LEADED, HALOGEN FREE AND ROHS COMPLIANT RS80J561MDNASQJT vs APSE6R3ETD561MF08S

RS80J561MDNASQJT Related Parts

RS80J561MDNASQJT Frequently Asked Questions (FAQ)

  • The recommended soldering temperature is between 250°C to 260°C for a maximum of 3 seconds.

  • Yes, the RS80J561MDNASQJT is designed to withstand high-vibration environments, making it suitable for use in automotive, industrial, and other applications where vibration is a concern.

  • The RS80J561MDNASQJT is designed to reduce high-frequency noise and electromagnetic interference (EMI) due to its low equivalent series resistance (ESR) and high resonance frequency.

  • Yes, the RS80J561MDNASQJT is designed for high-reliability applications, with a long lifespan and low failure rate, making it suitable for use in critical systems.

  • The RS80J561MDNASQJT is rated for operation up to 125°C, making it suitable for use in high-temperature environments, such as in automotive and industrial applications.
