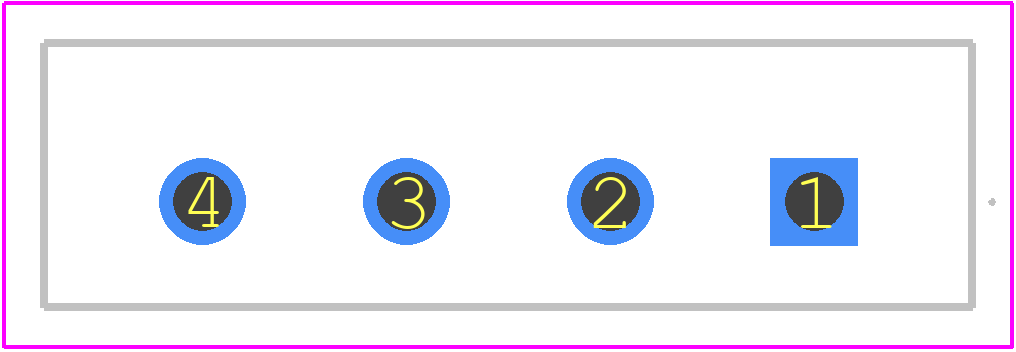

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RS606 by Rectron Semiconductor
Results Overview of RS606 by Rectron Semiconductor
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
RS606 Information
RS606 by Rectron Semiconductor is a Bridge Rectifier Diode.
Bridge Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for RS606
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
583-RS606
|
Mouser Electronics | Bridge Rectifiers 6A 800V RoHS: Compliant | 503 |
|
$0.6490 / $1.7900 | Buy Now |
|
|
Onlinecomponents.com | Diode Rectifier Bridge Single 800V 6A 4-Pin Case RS-6 RoHS: Compliant |
1446 In Stock |
|
$0.6400 / $0.7500 | Buy Now |
|
DISTI #
61679534
|
Verical | Diode Rectifier Bridge Single 800V 6A 4-Pin Case RS-6 Min Qty: 400 Package Multiple: 400 Date Code: 2146 | Americas - 1200 |
|
$0.8320 / $0.9750 | Buy Now |
|
|
Master Electronics | Diode Rectifier Bridge Single 800V 6A 4-Pin Case RS-6 RoHS: Compliant |
1446 In Stock |
|
$0.6400 / $0.7500 | Buy Now |
Part Details for RS606
RS606 CAD Models
RS606 Part Data Attributes
|
|
RS606
Rectron Semiconductor
Buy Now
Datasheet
|
Compare Parts:
RS606
Rectron Semiconductor
Bridge Rectifier Diode, 1 Phase, 6A, 800V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, RS-6, 4 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RECTRON LTD | |
| Package Description | ROHS COMPLIANT, PLASTIC, RS-6, 4 PIN | |
| Pin Count | 4 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Samacsys Manufacturer | Rectron | |
| Breakdown Voltage-Min | 800 V | |
| Case Connection | ISOLATED | |
| Configuration | BRIDGE, 4 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | BRIDGE RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1 V | |
| JESD-30 Code | R-PSFM-W4 | |
| JESD-609 Code | e3 | |
| Non-rep Pk Forward Current-Max | 150 A | |
| Number of Elements | 4 | |
| Number of Phases | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 6 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Reference Standard | UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 800 V | |
| Reverse Current-Max | 0.00001 µA | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | WIRE | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
Alternate Parts for RS606
This table gives cross-reference parts and alternative options found for RS606. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RS606, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| KBU6K | PanJit Semiconductor | Check for Price | Bridge Rectifier Diode, 6A, 800V V(RRM) | RS606 vs KBU6K |
| PBU606 | Diodes Incorporated | Check for Price | Bridge Rectifier Diode, 1 Phase, 6A, 800V V(RRM), Silicon, PLASTIC, PBU, 4 PIN | RS606 vs PBU606 |
RS606 Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the RS606 is -55°C to 150°C.
-
To ensure reliability, it's recommended to derate the power dissipation of the RS606 according to the ambient temperature, and to use a heat sink if necessary.
-
The maximum allowable voltage for the RS606 is 600V, but it's recommended to operate it at a maximum voltage of 500V to ensure reliability.
-
To protect the RS606 from EOS, it's recommended to use a voltage regulator or a transient voltage suppressor (TVS) to limit the voltage spikes and surges.
-
The recommended storage condition for the RS606 is in a dry, cool place, away from direct sunlight and moisture, and in its original packaging or an anti-static bag.
