RS3-243.3S/H3 Information
RS3-243.3S/H3 by RECOM Power GmbH is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for RS3-243.3S/H3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
945-2897-ND
|
DigiKey | DC DC CONVERTER 3.3V 3W Min Qty: 1 Lead time: 17 Weeks Container: Tube | Temporarily Out of Stock |
|
$17.9114 / $20.7400 | Buy Now |
|
DISTI #
919-RS3-243.3S/H3
|
Mouser Electronics | Isolated DC/DC Converters - Through Hole 3W DC/DC 3kV REG 2:1 18-36Vin 3.3Vout RoHS: Compliant | 0 |
|
$16.3600 / $19.9100 | Order Now |
|
DISTI #
72151777
|
RS | DC-DC Converter, SIP8 3kV, Single, 3W, 3.3V @ 600mA, RS3-S_D(Z) Series Min Qty: 22 Package Multiple: 1 Lead time: 17 Weeks, 0 Days Container: Bulk | 0 |
|
$21.0000 / $22.5800 | RFQ |
|
|
Onlinecomponents.com | 3W DC/DC-Converter 'ECONOLINE' SIP8 3kV reg 2: 1, V. In: 18-36, V. Out: 3.3, mA. Out: 600 RoHS: Compliant | 0 |
|
$15.8100 / $20.7600 | Buy Now |
|
DISTI #
RS3-243.3S/H3
|
TME | Converter: DC/DC, 3W, Uin: 18÷36VDC, Uout: 3.3VDC, Iout: 600mA, SIP8 Min Qty: 1 | 0 |
|
$16.5600 / $19.2400 | RFQ |
|
DISTI #
000000000006066331
|
Sager | Isolated DC/DC Converters - Through Hole 3W DC/DC 3kV REG 2:1 18-36Vin 3.3Vout Min Qty: 1 | 0 |
|
$17.1900 / $20.0400 | Buy Now |
Part Details for RS3-243.3S/H3

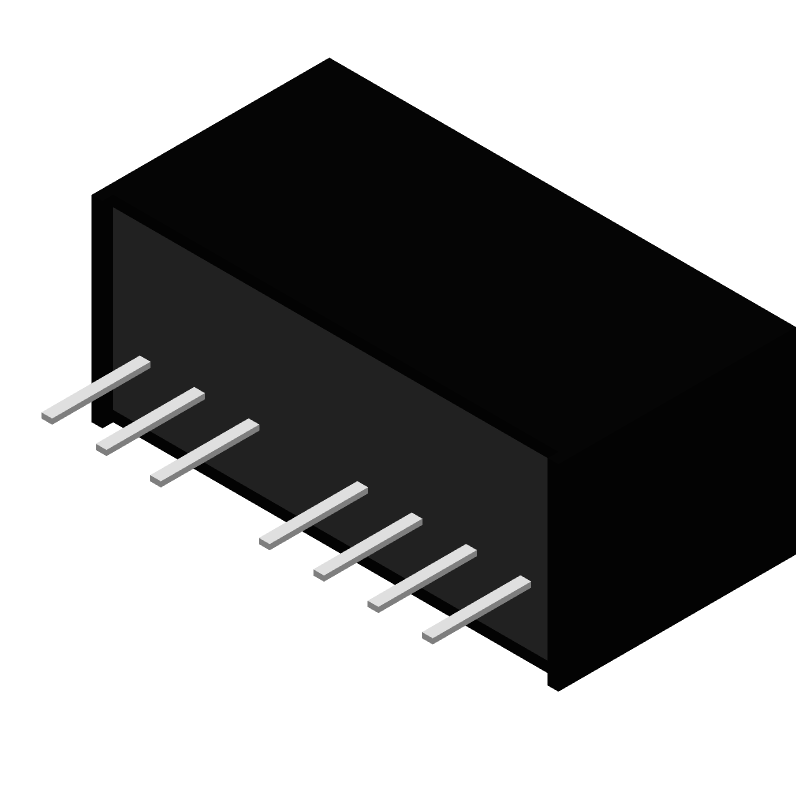

RS3-243.3S/H3 CAD Models
RS3-243.3S/H3 Part Data Attributes
|
|
RS3-243.3S/H3
RECOM Power GmbH
Buy Now
Datasheet
|
Compare Parts:
RS3-243.3S/H3
RECOM Power GmbH
DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid, ROHS COMPLIANT, SIP-8/7
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RECOM POWER GMBH | |
| Package Description | SIP-8/7 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | RECOM Power | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Approvals | IEC, EN, UL, CSA | |
| Control Mode | VOLTAGE-MODE | |
| Efficiency (Main Output) | 78% | |
| Input Voltage-Max | 36 V | |
| Input Voltage-Min | 18 V | |
| Input Voltage-Nom | 24 V | |
| JESD-30 Code | R-PSIP-T7 | |
| Length | 21.8 mm | |
| Line Regulation-Max | 0.5% | |
| Load Regulation-Max | 0.5% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 7 | |
| Operating Temperature-Max | 71 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.6 A | |
| Output Voltage-Max | 3.366 V | |
| Output Voltage-Min | 3.234 V | |
| Output Voltage-Nom | 3.3 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SIP | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Protections | SHORT CIRCUIT | |
| Qualification Status | Not Qualified | |
| Ripple Voltage (Main Out) | 0.017675 Vrms | |
| Screening Level | IEC/EN 60601-1 | |
| Seated Height-Max | 11.6 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | OTHER | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 3 W | |
| Trim/Adjustable Output | NO | |
| Width | 9.2 mm |
RS3-243.3S/H3 Frequently Asked Questions (FAQ)
-
RECOM recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
-
The RS3-243.3S/H3 is certified to UL60950-1, EN60950-1, and IEC60950-1 safety standards. Ensure your application meets the required safety certifications by following the recommended layout, component selection, and testing guidelines provided by RECOM.
-
The maximum allowable capacitance for the input filter is 10uF, and for the output filter is 22uF. Exceeding these values may affect the converter's stability and performance.
-
RECOM provides a troubleshooting guide in the datasheet, which includes a fault diagnosis table and recommended corrective actions. Additionally, consult the application notes and technical support resources provided by RECOM.
-
Yes, the RS3-243.3S/H3 is designed for high-reliability applications. However, ensure you follow the recommended derating guidelines, and consider additional redundancy or fault-tolerant design measures to meet the specific requirements of your high-availability application.
