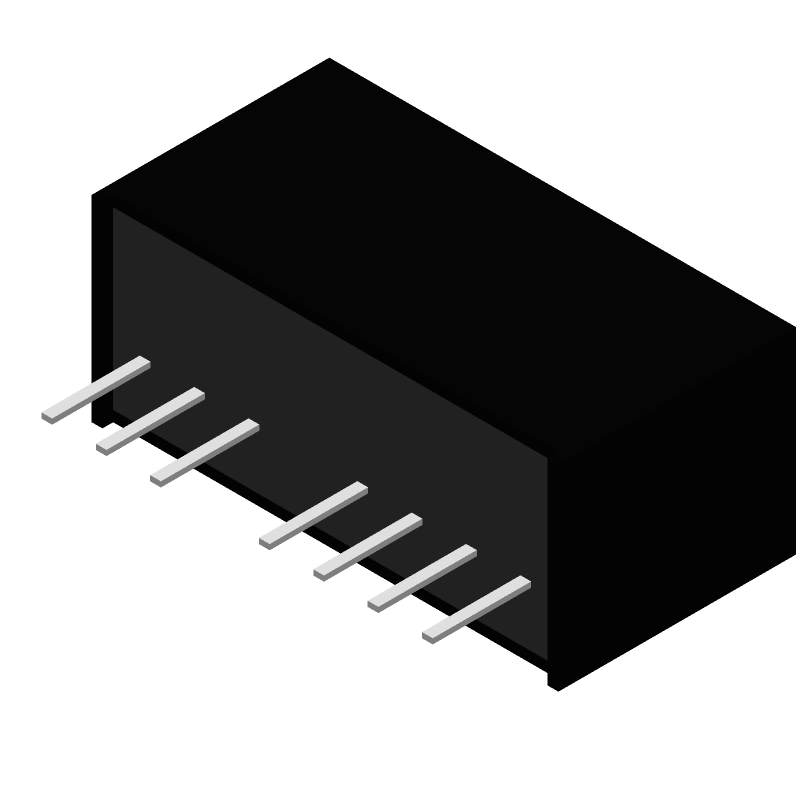

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RS3-243.3S/H2 by RECOM Power GmbH
Results Overview of RS3-243.3S/H2 by RECOM Power GmbH
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Environmental Monitoring
Internet of Things (IoT)
Smart Cities
Transportation and Logistics
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Medical Imaging
Automotive
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Aerospace and Defense
Healthcare
Renewable Energy
Robotics and Drones
RS3-243.3S/H2 Information
RS3-243.3S/H2 by RECOM Power GmbH is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for RS3-243.3S/H2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
945-2896-ND
|
DigiKey | DC DC CONVERTER 3.3V 3W Min Qty: 22 Lead time: 17 Weeks Container: Tube | Temporarily Out of Stock |
|
$18.3468 | Buy Now |
|
DISTI #
919-RS3-243.3S/H2
|
Mouser Electronics | Isolated DC/DC Converters - Through Hole 3W DC/DC 2kV REG 2:1 18-36Vin 3.3Vout RoHS: Compliant | 0 |
|
$16.7600 / $19.6200 | Order Now |
|
DISTI #
72162515
|
RS | DC-DC Converter, SIP8, 2kV, reg 2:1, Single,3W,3.3V, 600mA, RS3-S_D(Z) Series Min Qty: 22 Package Multiple: 1 Lead time: 17 Weeks, 0 Days Container: Bulk | 0 |
|
$20.0700 / $21.5800 | RFQ |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$15.0200 / $19.7200 | Buy Now |
|
DISTI #
RS3-243.3S/H2
|
IBS Electronics | RS3-243.3S/H2 by RECOM POWER is a 3W DC/DC converter with 24V input, 3.3V output, single output, high efficiency, and compact SIP7 package, ideal for industrial and telecom applications. Min Qty: 22 Package Multiple: 1 | 0 |
|
$19.7860 / $20.2930 | Buy Now |
|
DISTI #
000000000006066330
|
Sager | Isolated DC/DC Converters - Through Hole 3W DC/DC 2kV REG 2:1 18-36Vin 3.3Vout Min Qty: 1 | 0 |
|
$16.3300 / $19.0700 | Buy Now |
Part Details for RS3-243.3S/H2
RS3-243.3S/H2 CAD Models
RS3-243.3S/H2 Part Data Attributes
|
|
RS3-243.3S/H2
RECOM Power GmbH
Buy Now
Datasheet
|
Compare Parts:
RS3-243.3S/H2
RECOM Power GmbH
DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid, ROHS COMPLIANT, SIP-8/7
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RECOM POWER GMBH | |
| Package Description | SIP-8/7 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | RECOM Power | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Approvals | IEC, EN, UL, CSA | |
| Control Mode | VOLTAGE-MODE | |
| Efficiency (Main Output) | 78% | |
| Input Voltage-Max | 36 V | |
| Input Voltage-Min | 18 V | |
| Input Voltage-Nom | 24 V | |
| JESD-30 Code | R-PSIP-T7 | |
| Length | 21.8 mm | |
| Line Regulation-Max | 0.5% | |
| Load Regulation-Max | 0.5% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 7 | |
| Operating Temperature-Max | 71 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.6 A | |
| Output Voltage-Max | 3.366 V | |
| Output Voltage-Min | 3.234 V | |
| Output Voltage-Nom | 3.3 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SIP | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Protections | SHORT CIRCUIT | |
| Qualification Status | Not Qualified | |
| Ripple Voltage (Main Out) | 0.017675 Vrms | |
| Screening Level | IEC/EN 60601-1 | |
| Seated Height-Max | 11.6 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | OTHER | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 3 W | |
| Trim/Adjustable Output | NO | |
| Width | 9.2 mm |
