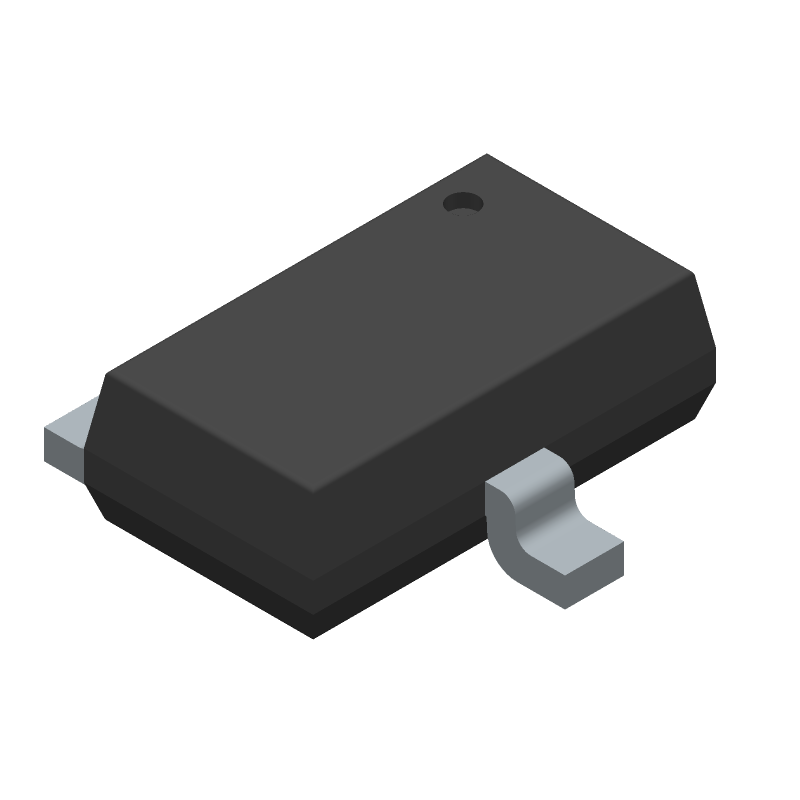

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RQ5C030TPTL by ROHM Semiconductor
Results Overview of RQ5C030TPTL by ROHM Semiconductor
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
RQ5C030TPTL Information
RQ5C030TPTL by ROHM Semiconductor is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for RQ5C030TPTL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
82AC3051
|
Newark | Mosfet, P-Ch, -3A, -20V, Sot-346T, Transistor Polarity:P Channel, Continuous Drain Current Id:-3A, Drain Source Voltage Vds:-20V, On Resistance Rds(On):0.055Ohm, Rds(On) Test Voltage Vgs:-4.5V, Threshold Voltage Vgs:-2V, Power Rohs Compliant: Yes |Rohm RQ5C030TPTL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2931 |
|
$0.2450 / $0.5700 | Buy Now |
|
DISTI #
RQ5C030TPTLCT-ND
|
DigiKey | MOSFET P-CH 20V 3A TSMT3 Min Qty: 1 Lead time: 16 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
13140 In Stock |
|
$0.1650 / $0.5900 | Buy Now |
|
DISTI #
755-RQ5C030TPTL
|
Mouser Electronics | MOSFETs SOT346 P CHAN 20V RoHS: Compliant | 9795 |
|
$0.1830 / $0.5800 | Buy Now |
|
DISTI #
67209193
|
Verical | Trans MOSFET P-CH 20V 3A 3-Pin TSMT T/R RoHS: Compliant Min Qty: 296 Package Multiple: 1 Date Code: 2301 | Americas - 3812 |
|
$0.2397 / $0.2649 | Buy Now |
|
DISTI #
79931649
|
Verical | Trans MOSFET P-CH 20V 3A 3-Pin TSMT T/R RoHS: Compliant Min Qty: 244 Package Multiple: 1 Date Code: 2351 | Americas - 700 |
|
$0.4160 / $0.5560 | Buy Now |
|
|
Quest Components | 3049 |
|
$0.2713 / $0.7750 | Buy Now | |
|
DISTI #
RQ5C030TPTL
|
TTI | MOSFETs SOT346 P CHAN 20V RoHS: Compliant pbFree: Pb-Free Min Qty: 3000 Package Multiple: 3000 Container: Reel |
Americas - 3000 In Stock |
|
$0.2530 / $0.2690 | Buy Now |
|
DISTI #
RQ5C030TPTL
|
Avnet Silica | Transistor MOSFET PCH 20V 3A 3Pin SOT346T Emboss TR (Alt: RQ5C030TPTL) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 19 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for RQ5C030TPTL
RQ5C030TPTL CAD Models
RQ5C030TPTL Part Data Attributes
|
|
RQ5C030TPTL
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
RQ5C030TPTL
ROHM Semiconductor
Small Signal Field-Effect Transistor,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Package Description | SC-96, SOT-346T, 3 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 20 V | |
| Drain Current-Max (ID) | 3 A | |
| Drain-source On Resistance-Max | 0.085 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 100 pF | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | P-CHANNEL | |
| Power Dissipation-Max (Abs) | 1 W | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
