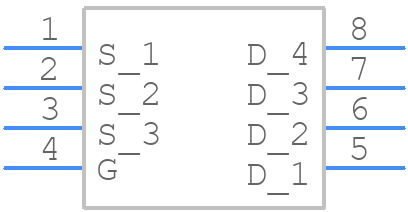

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RQ1E050RPTR by ROHM Semiconductor
Results Overview of RQ1E050RPTR by ROHM Semiconductor
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
RQ1E050RPTR Information
RQ1E050RPTR by ROHM Semiconductor is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for RQ1E050RPTR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
10AC8913
|
Newark | Mosfet, P-Ch, -30V, -5A, Tsmt-8, Transistor Polarity:P Channel, Continuous Drain Current Id:-5A, Drain Source Voltage Vds:-30V, On Resistance Rds(On):0.022Ohm, Rds(On) Test Voltage Vgs:-10V, Threshold Voltage Vgs:-2.5V, Power Rohs Compliant: Yes |Rohm RQ1E050RPTR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1269 |
|
$0.4130 / $0.9840 | Buy Now |
|
DISTI #
RQ1E050RPCT-ND
|
DigiKey | MOSFET P-CH 30V 5A TSMT8 Min Qty: 1 Lead time: 16 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
427 In Stock |
|
$0.3125 / $1.0800 | Buy Now |
|
DISTI #
RQ1E050RPTR
|
Avnet Americas | Trans MOSFET P-CH 30V 5A 8-Pin TSMT T/R - Tape and Reel (Alt: RQ1E050RPTR) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 16 Weeks, 0 Days Container: Reel | 0 |
|
RFQ | |
|
DISTI #
755-RQ1E050RPTR
|
Mouser Electronics | MOSFETs RECOMMENDED ALT 755-RF4E075ATTCR RoHS: Compliant | 2053 |
|
$0.3280 / $1.0700 | Buy Now |
|
DISTI #
66384996
|
Verical | Trans MOSFET P-CH 30V 5A 8-Pin TSMT T/R RoHS: Compliant Min Qty: 141 Package Multiple: 1 Date Code: 2148 | Americas - 15640 |
|
$0.2900 / $0.4470 | Buy Now |
|
DISTI #
61727369
|
Verical | Trans MOSFET P-CH 30V 5A 8-Pin TSMT T/R RoHS: Compliant Min Qty: 172 Package Multiple: 1 Date Code: 2101 | Americas - 3000 |
|
$0.4988 / $0.5145 | Buy Now |
|
DISTI #
61199186
|
Verical | Trans MOSFET P-CH 30V 5A 8-Pin TSMT T/R RoHS: Compliant Min Qty: 172 Package Multiple: 1 Date Code: 2101 | Americas - 1800 |
|
$0.6850 | Buy Now |
|
|
Quest Components | 4456 |
|
$0.3660 / $1.2200 | Buy Now | |
|
DISTI #
RQ1E050RPTR
|
IBS Electronics | TRANS MOSFET P-CH 30V 5A 8-PIN TSMT T/R Min Qty: 3000 Package Multiple: 1 | 0 |
|
$0.2496 / $0.2561 | Buy Now |
|
DISTI #
RQ1E050RPTR
|
Avnet Silica | Trans MOSFET PCH 30V 5A 8Pin TSMT TR (Alt: RQ1E050RPTR) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 37 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for RQ1E050RPTR
RQ1E050RPTR CAD Models
RQ1E050RPTR Part Data Attributes
|
|
RQ1E050RPTR
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
RQ1E050RPTR
ROHM Semiconductor
Power Field-Effect Transistor, 5A I(D), 30V, 0.031ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, ROHS COMPLIANT, TSMT8, 8 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Package Description | ROHS COMPLIANT, TSMT8, 8 PIN | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 30 V | |
| Drain Current-Max (ID) | 5 A | |
| Drain-source On Resistance-Max | 0.031 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JESD-30 Code | R-PDSO-F8 | |
| JESD-609 Code | e2 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 8 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | P-CHANNEL | |
| Power Dissipation-Max (Abs) | 1.5 W | |
| Pulsed Drain Current-Max (IDM) | 20 A | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | Tin/Copper (Sn/Cu) | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
