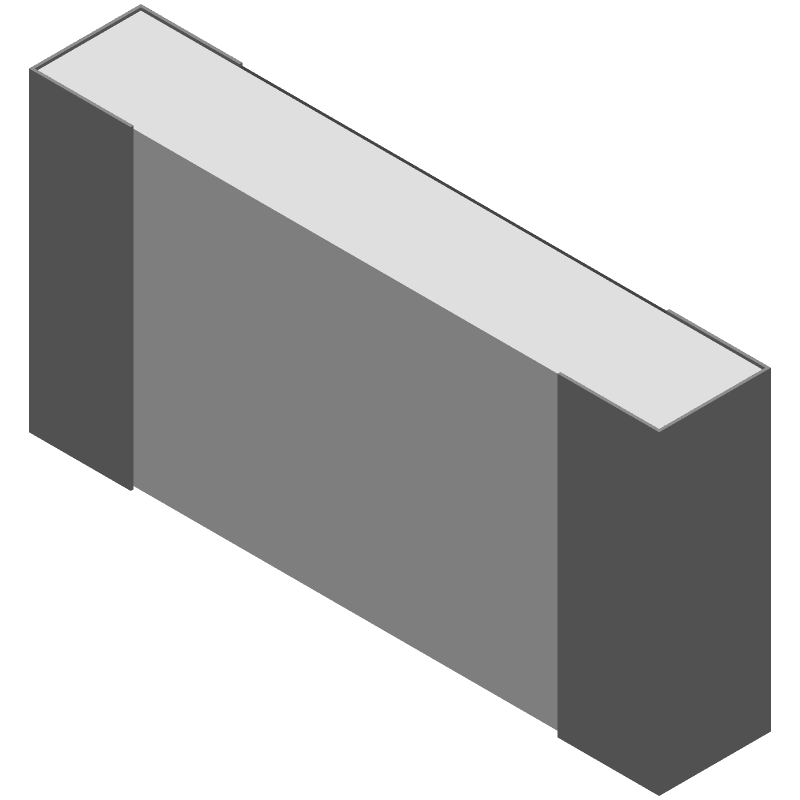

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RPC1206JT47R0 by SEI Stackpole Electronics Inc
Results Overview of RPC1206JT47R0 by SEI Stackpole Electronics Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
RPC1206JT47R0 Information
RPC1206JT47R0 by SEI Stackpole Electronics Inc is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for RPC1206JT47R0
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
RPC1206JT47R0CT-ND
|
DigiKey | RES 47 OHM 5% 1/3W 1206 Min Qty: 1 Lead time: 14 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
9490 In Stock |
|
$0.0258 / $0.2000 | Buy Now |
|
DISTI #
RPC1206JT47R0
|
Avnet Americas | - Tape and Reel (Alt: RPC1206JT47R0) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 13 Weeks, 0 Days Container: Reel | 10000 Factory Stock |
|
$0.0384 | Buy Now |
|
DISTI #
708-RPC1206JT47R0
|
Mouser Electronics | Thick Film Resistors - SMD RES, PULSE, 1206, 47 ohm, 5%, 0.33W RoHS: Compliant | 0 |
|
$0.0260 / $0.0320 | Order Now |
|
|
Onlinecomponents.com | Pulse Withstanding Thick Film Chip Resistor - 47 ohm ±5% - 0.33W - SMD 1206 - Tape&Reel RoHS: Compliant | 10000 Factory Stock |
|
$0.0366 / $0.0429 | Buy Now |
|
DISTI #
32704486
|
Verical | Res Thick Film 1206 47 Ohm 5% 0.33W(1/3W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 5000 Package Multiple: 5000 | Americas - 10000 |
|
$0.1709 | Buy Now |
|
|
NAC | RESISTOR, PULSE, 1206, 47 ohm, 5%, 0.33W - Thick Film - Pulse Withstanding RoHS: Compliant Min Qty: 1 Package Multiple: 5000 | 10000 |
|
$0.0750 / $0.1000 | Buy Now |
|
|
Master Electronics | Pulse Withstanding Thick Film Chip Resistor - 47 ohm ±5% - 0.33W - SMD 1206 - Tape&Reel RoHS: Compliant | 10000 Factory Stock |
|
$0.0366 / $0.0429 | Buy Now |
Part Details for RPC1206JT47R0
RPC1206JT47R0 CAD Models
RPC1206JT47R0 Part Data Attributes
|
|
RPC1206JT47R0
SEI Stackpole Electronics Inc
Buy Now
Datasheet
|
Compare Parts:
RPC1206JT47R0
SEI Stackpole Electronics Inc
Fixed Resistor, Metal Glaze/thick Film, 0.33W, 47ohm, 200V, 5% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STACKPOLE ELECTRONICS INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | Stackpole Electronics, Inc. | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.55 mm | |
| Package Length | 3.1 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 1.55 mm | |
| Packing Method | TR, PAPER, 7 INCH | |
| Rated Power Dissipation (P) | 0.33 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 47 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 1206 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 5% | |
| Working Voltage | 200 V |
