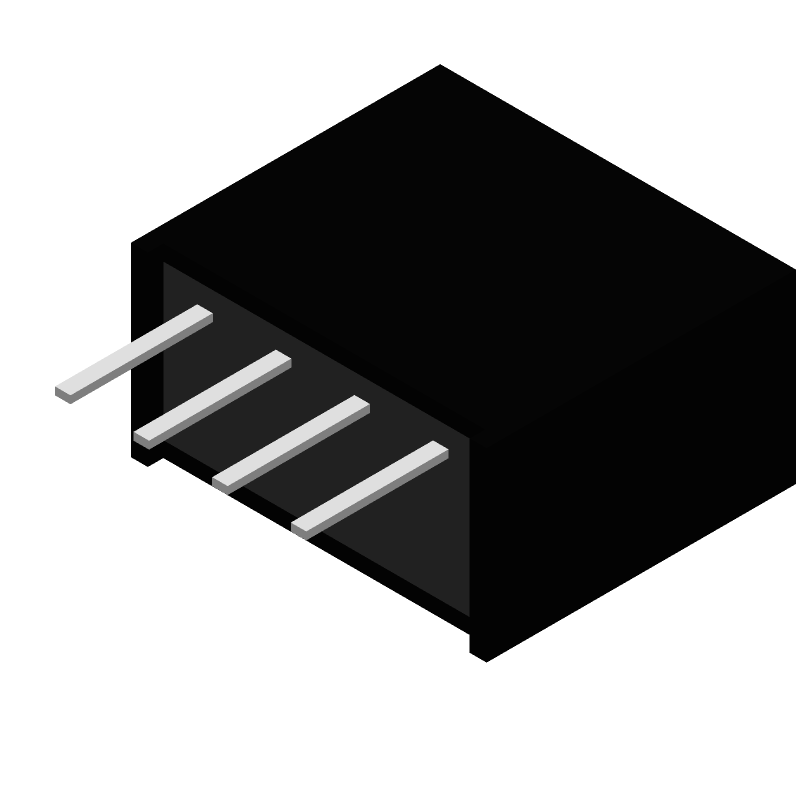

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RO-1205S by RECOM Power GmbH
Results Overview of RO-1205S by RECOM Power GmbH
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Entertainment and Gaming
RO-1205S Information
RO-1205S by RECOM Power GmbH is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 10127721-205SPLF | Amphenol Communications Solutions | Minitek® Pwr 3.0, Dual Row, Vertical Through Hole Header, 20 Position, 3.2mm Straight Tail (G/F on contact) plating, GW Compatible LCP, Natural Color,Tray with PE Bag. | |
| 10127721-205SRLF | Amphenol Communications Solutions | Minitek® Pwr 3.0, Dual Row, Vertical Through Hole Header, 20 Position, 3.2mm Straight Tail (G/F on contact) plating, GW Compatible LCP, Natural Color,Tape and Reel with cap. | |
| 10127721-205SLF | Amphenol Communications Solutions | Minitek® Pwr 3.0, Dual Row, Vertical Through Hole Header, 20 Position, 3.2mm Straight Tail (G/F on contact) plating, GW Compatible LCP, Natural Color,Tray Packing. |
Price & Stock for RO-1205S
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
63X9437
|
Newark | Dc/Dc Converter, 1W, 5V, 0.2A, Sip, Power Supply Applications:Medical, Dc/Dc Converter Type:Sip, Input Ratio:1:1, Output Power Max:1W, No. Of Outputs:1 Output, Output Voltage - Output 1:5V, Output Current - Output 1:200Ma Rohs Compliant: Yes |Recom Power RO-1205S RoHS: Compliant Min Qty: 42 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$5.6000 / $6.6600 | Buy Now |
|
DISTI #
945-1223-ND
|
DigiKey | DC DC CONVERTER 5V 1W Min Qty: 1 Lead time: 6 Weeks Container: Tube |
272 In Stock |
|
$5.6198 / $6.5100 | Buy Now |
|
DISTI #
919-RO-1205S
|
Mouser Electronics | Isolated DC/DC Converters - Through Hole 1W DC/DC 1kV UNREG 12Vin 5Vout RoHS: Compliant | 128 |
|
$5.2300 / $6.5000 | Buy Now |
|
DISTI #
E02:0323_02025417
|
Arrow Electronics | Module DC-DC 12VIN 1-OUT 5V 0.2A 1W Medical 4-Pin SIP Tube Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks | Europe - 18 |
|
$5.2230 / $6.3047 | Buy Now |
|
DISTI #
70052153
|
RS | DC-DC Converter,1W SGL 5V OUT SIP4 Min Qty: 42 Package Multiple: 1 Lead time: 6 Weeks, 0 Days Container: Bulk | 0 |
|
$5.8500 / $6.6400 | RFQ |
|
|
Onlinecomponents.com | Module DC-DC 12VIN 1-OUT 5V 0.2A 1W 4-Pin SIP Tube RoHS: Compliant |
56 In Stock 1000 Factory Stock |
|
$5.0300 / $6.3400 | Buy Now |
|
DISTI #
58779351
|
Verical | Module DC-DC 12VIN 1-OUT 5V 0.2A 1W Medical 4-Pin SIP Tube Min Qty: 2 Package Multiple: 1 | Americas - 18 |
|
$5.2378 / $6.3225 | Buy Now |
|
|
Bristol Electronics | 90 |
|
RFQ | ||
|
DISTI #
RO-1205S
|
TME | Converter: DC/DC, 1W, Uin: 10.8÷13.2VDC, Uout: 5VDC, Iout: 200mA Min Qty: 1 | 90 |
|
$4.7600 / $5.6500 | Buy Now |
|
DISTI #
RO-1205S
|
IBS Electronics | 1W DC/DC-CONVERTER ECONOLINE SIP4 1KV UNREG V. IN: 12 V. OUT: 05 MA. OUT: 200 Min Qty: 14 Package Multiple: 1 | 56 |
|
$6.5390 / $8.2420 | Buy Now |
Part Details for RO-1205S
RO-1205S CAD Models
RO-1205S Part Data Attributes
|
|
RO-1205S
RECOM Power GmbH
Buy Now
Datasheet
|
Compare Parts:
RO-1205S
RECOM Power GmbH
DC-DC Unregulated Power Supply Module, 1 Output, 1W, Hybrid, ROHS COMPLIANT, SIP-4
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RECOM POWER GMBH | |
| Part Package Code | MODULE | |
| Package Description | SIP-4 | |
| Pin Count | 4 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | RECOM Power | |
| Analog IC - Other Type | DC-DC UNREGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 13.2 V | |
| Input Voltage-Min | 10.8 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-XSMA-P4 | |
| Length | 11.5 mm | |
| Load Regulation-Max | 15% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.2 A | |
| Output Voltage-Max | 5.25 V | |
| Output Voltage-Min | 4.75 V | |
| Output Voltage-Nom | 5 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | SMA | |
| Package Equivalence Code | SIP4,.18 | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 10.25 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | PIN/PEG | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 1 W | |
| Trim/Adjustable Output | NO | |
| Width | 6 mm |
RO-1205S Frequently Asked Questions (FAQ)
-
RECOM recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended.
-
To ensure reliability, RECOM recommends operating the module within the specified temperature range (–40°C to +85°C) and ensuring good airflow around the module. Additionally, derating the output power can help reduce the module's temperature.
-
RECOM recommends using a low-ESR ceramic capacitor (e.g., X7R or X5R) with a value of 10-22 μF, depending on the input voltage and ripple requirements.
-
RECOM recommends using a TVS diode or a transient voltage suppressor (TVS) in parallel with the input capacitor to protect the module from voltage transients and surges.
-
RECOM recommends using a low-ESR ceramic capacitor (e.g., X7R or X5R) with a value of 10-22 μF, depending on the output voltage and ripple requirements.
