Resistors / Metal Film Resistors / RNV14FAL7M50
Datasheets

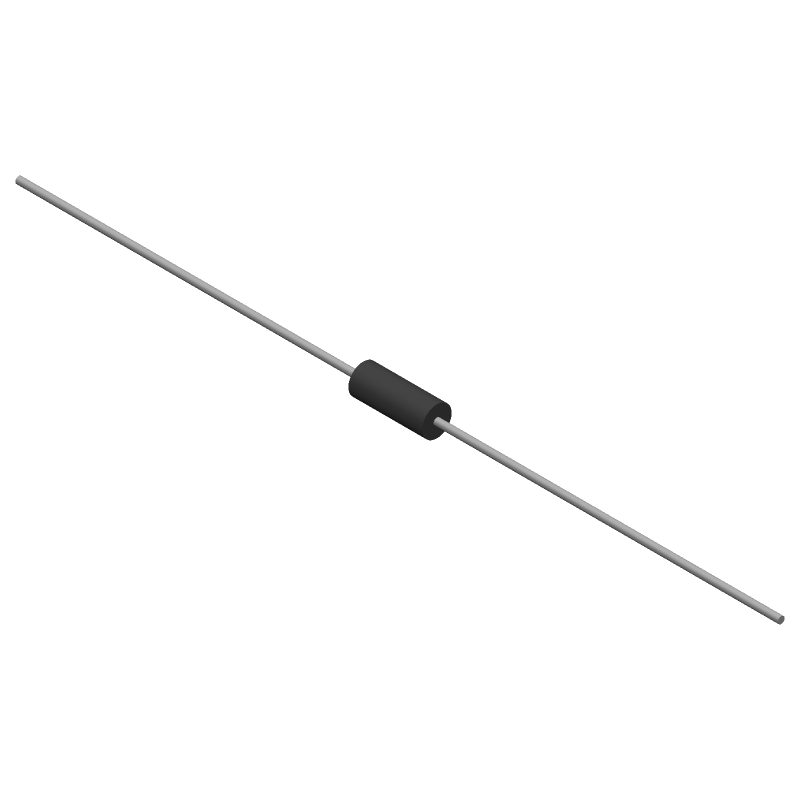

RNV14FAL7M50 by: SEI Stackpole Electronics Inc

Fixed Resistor, Metal Film, 0.25W, 7500000ohm, 1600V, 1% +/-Tol, 200ppm/Cel, Through Hole Mount, AXIAL LEADED

Part Details for RNV14FAL7M50 by SEI Stackpole Electronics Inc

Results Overview of RNV14FAL7M50 by SEI Stackpole Electronics Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Telecommunications Automotive

RNV14FAL7M50 Information

RNV14FAL7M50 by SEI Stackpole Electronics Inc is a Metal Film Resistor.
Metal Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RNV14FAL7M50

Part # Distributor Description Stock Price Buy
DISTI # RNV14FAL7M50CT-ND
DigiKey RES 7.5M OHM 1% 1/4W AXIAL Min Qty: 1 Lead time: 11 Weeks Container: Cut Tape (CT), Tape & Box (TB) 3711
In Stock
  • 1 $0.1500
  • 10 $0.0940
  • 25 $0.0788
  • 50 $0.0694
  • 100 $0.0612
  • 250 $0.0524
  • 500 $0.0469
  • 1,000 $0.0421
  • 2,000 $0.0381
  • 4,000 $0.0347
  • 6,000 $0.0330
  • 10,000 $0.0310
  • 14,000 $0.0298
  • 20,000 $0.0286
  • 50,000 $0.0261
  • 100,000 $0.0245
  • 200,000 $0.0231
$0.0231 / $0.1500 Buy Now
DISTI # RNV14FAL7M50
Avnet Americas - Ammo Pack (Alt: RNV14FAL7M50) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 11 Weeks, 0 Days Container: Ammo Pack 2000 Factory Stock
  • 2,000 $0.0305
  • 4,000 $0.0300
  • 8,000 $0.0295
  • 12,000 $0.0290
  • 16,000 $0.0286
$0.0286 / $0.0305 Buy Now
DISTI # 708-RNV14FAL7M50
Mouser Electronics Metal Film Resistors - Through Hole 7.5MOhms 1/4W 200 ppm 1% High Volt Anti-Moist RoHS: Compliant 3000
  • 1 $0.1500
  • 10 $0.0700
  • 100 $0.0530
  • 500 $0.0470
  • 1,000 $0.0420
  • 2,000 $0.0320
  • 10,000 $0.0280
  • 50,000 $0.0250
$0.0250 / $0.1500 Buy Now
Onlinecomponents.com High Voltage Anti-Moisture Metal Film Resistor - 7.5 Mohm ±1% - 0.25W - Body: 6.00 x 2.40mm Dia - Thru Hole RoHS: Compliant 2000 Factory Stock
  • 2,000 $0.0359
  • 4,000 $0.0341
  • 8,000 $0.0324
  • 16,000 $0.0308
$0.0308 / $0.0359 Buy Now
DISTI # 62404413
Verical Res Metal Film 7.5M Ohm 1% 0.25W(1/4W) ±200ppm/C Conformal Coated AXL Ammo Min Qty: 2000 Package Multiple: 2000 Americas - 2000
  • 2,000 $0.1368
$0.1368 Buy Now
NAC RESISTOR, METAL FILM, 1/4W, 7.5 Mohm, 1%, 200 ppm - Metal Film Resistor - High Voltage RoHS: Compliant Min Qty: 1 Package Multiple: 2000 2000
  • 2,000 $0.0800
  • 10,000 $0.0690
  • 50,000 $0.0600
$0.0600 / $0.0800 Buy Now
Master Electronics High Voltage Anti-Moisture Metal Film Resistor - 7.5 Mohm ±1% - 0.25W - Body: 6.00 x 2.40mm Dia - Thru Hole RoHS: Compliant 2000 Factory Stock
  • 2,000 $0.0359
  • 4,000 $0.0341
  • 8,000 $0.0324
  • 16,000 $0.0308
$0.0308 / $0.0359 Buy Now

Part Details for RNV14FAL7M50

RNV14FAL7M50 Part Data Attributes

Parametric Data
RNV14FAL7M50 SEI Stackpole Electronics Inc
Buy Now Datasheet
Compare Parts:
RNV14FAL7M50 SEI Stackpole Electronics Inc Fixed Resistor, Metal Film, 0.25W, 7500000ohm, 1600V, 1% +/-Tol, 200ppm/Cel, Through Hole Mount, AXIAL LEADED
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STACKPOLE ELECTRONICS INC
Package Description AXIAL LEADED
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.90
Factory Lead Time 11 Weeks
Samacsys Manufacturer Stackpole Electronics, Inc.
Additional Feature RATED AC VOLTAGE (V): 1150
Construction Tubular
JESD-609 Code e3
Lead Diameter 0.55 mm
Lead Length 28 mm
Mounting Feature THROUGH HOLE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Diameter 2.4 mm
Package Length 6 mm
Package Shape TUBULAR PACKAGE
Package Style Axial
Packing Method AMMO PACK
Rated Power Dissipation (P) 0.25 W
Rated Temperature 70 °C
Resistance 7500000 Ω
Resistor Type FIXED RESISTOR
Surface Mount NO
Technology METAL FILM
Temperature Coefficient 200 ppm/°C
Terminal Finish Matte Tin (Sn)
Terminal Shape WIRE
Tolerance 1%
Working Voltage 1600 V

Alternate Parts for RNV14FAL7M50

This table gives cross-reference parts and alternative options found for RNV14FAL7M50. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RNV14FAL7M50, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
RNV14FTL7M50 SEI Stackpole Electronics Inc Check for Price Fixed Resistor, Metal Film, 0.25W, 7500000ohm, 1600V, 1% +/-Tol, 200ppm/Cel, Through Hole Mount, AXIAL LEADED RNV14FAL7M50 vs RNV14FTL7M50
