Resistors / Metal Film Resistors / RNV14FAL750K
Datasheets

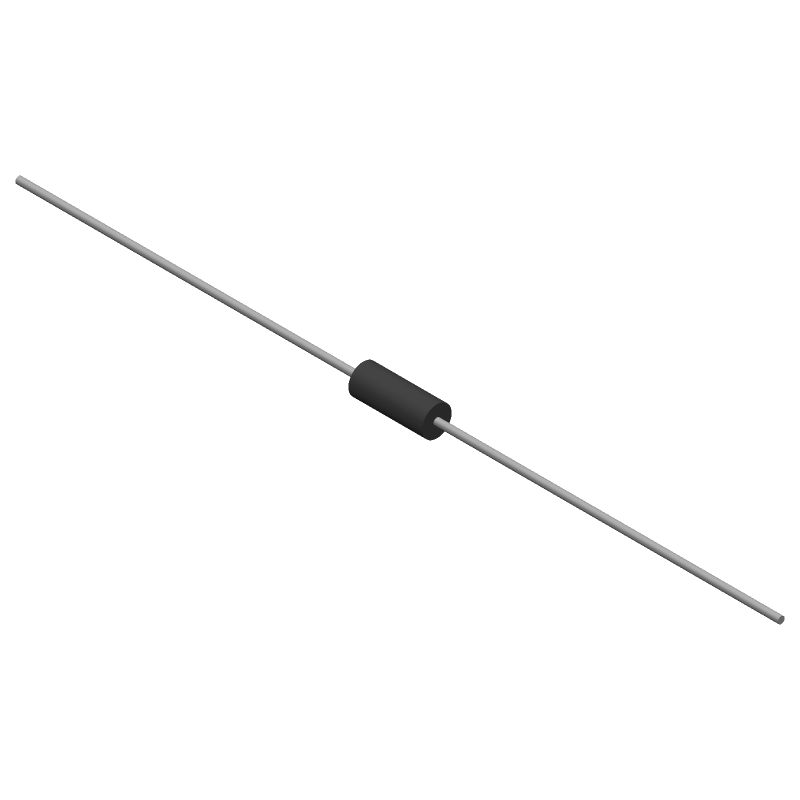

RNV14FAL750K by: SEI Stackpole Electronics Inc

Fixed Resistor, Metal Film, 0.25W, 750000ohm, 1600V, 1% +/-Tol, 200ppm/Cel, Through Hole Mount, AXIAL LEADED

Part Details for RNV14FAL750K by SEI Stackpole Electronics Inc

Results Overview of RNV14FAL750K by SEI Stackpole Electronics Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Telecommunications Automotive

RNV14FAL750K Information

RNV14FAL750K by SEI Stackpole Electronics Inc is a Metal Film Resistor.
Metal Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RNV14FAL750K

Part # Distributor Description Stock Price Buy
DISTI # 738-RNV14FAL750KCT-ND
DigiKey RES 750K OHM 1% 1/4W AXIAL Min Qty: 1 Lead time: 11 Weeks Container: Cut Tape (CT), Tape & Box (TB) 5537
In Stock
  • 1 $0.1500
  • 10 $0.0940
  • 25 $0.0788
  • 50 $0.0694
  • 100 $0.0612
  • 250 $0.0524
  • 500 $0.0469
  • 1,000 $0.0421
  • 2,000 $0.0381
  • 4,000 $0.0347
  • 6,000 $0.0330
  • 10,000 $0.0310
  • 14,000 $0.0298
  • 20,000 $0.0286
  • 50,000 $0.0261
  • 100,000 $0.0245
  • 200,000 $0.0231
$0.0231 / $0.1500 Buy Now
DISTI # RNV14FAL750K
Avnet Americas - Ammo Pack (Alt: RNV14FAL750K) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 11 Weeks, 0 Days Container: Ammo Pack 2000 Factory Stock
  • 2,000 $0.0305
  • 4,000 $0.0300
  • 8,000 $0.0295
  • 12,000 $0.0290
  • 16,000 $0.0286
$0.0286 / $0.0305 Buy Now
DISTI # 708-RNV14FAL750K
Mouser Electronics Metal Film Resistors - Through Hole 750KOhms 1/4W 200 ppm 1% High Volt Anti-Moist RoHS: Compliant 0
  • 1 $0.1500
  • 10 $0.0700
  • 100 $0.0530
  • 500 $0.0470
  • 1,000 $0.0420
  • 2,000 $0.0320
  • 10,000 $0.0280
  • 50,000 $0.0250
$0.0250 / $0.1500 Order Now
Onlinecomponents.com High Voltage Anti-Moisture Metal Film Resistor - 750 kohm ±1% - 0.25W - Body: 6.00 x 2.40mm Dia - Thru Hole RoHS: Compliant 2000 Factory Stock
  • 2,000 $0.0359
  • 4,000 $0.0341
  • 8,000 $0.0324
  • 16,000 $0.0308
$0.0308 / $0.0359 Buy Now
DISTI # 31947906
Verical Res Metal Film 750K Ohm 1% 0.25W(1/4W) ±200ppm/°C Conformal Coated AXL Ammo RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Americas - 2000
  • 2,000 $0.1368
$0.1368 Buy Now
NAC RESISTOR, METAL FILM, 1/4W, 750 Kohm, 1%, 200 ppm - Metal Film Resistor - High Voltage RoHS: Compliant Min Qty: 1 Package Multiple: 2000 2000
  • 2,000 $0.0800
  • 10,000 $0.0690
  • 50,000 $0.0600
$0.0600 / $0.0800 Buy Now
Master Electronics High Voltage Anti-Moisture Metal Film Resistor - 750 kohm ±1% - 0.25W - Body: 6.00 x 2.40mm Dia - Thru Hole RoHS: Compliant 2000 Factory Stock
  • 2,000 $0.0359
  • 4,000 $0.0341
  • 8,000 $0.0324
  • 16,000 $0.0308
$0.0308 / $0.0359 Buy Now

Part Details for RNV14FAL750K

RNV14FAL750K Part Data Attributes

Parametric Data
RNV14FAL750K SEI Stackpole Electronics Inc
Buy Now Datasheet
Compare Parts:
RNV14FAL750K SEI Stackpole Electronics Inc Fixed Resistor, Metal Film, 0.25W, 750000ohm, 1600V, 1% +/-Tol, 200ppm/Cel, Through Hole Mount, AXIAL LEADED
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STACKPOLE ELECTRONICS INC
Package Description AXIAL LEADED
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.90
Factory Lead Time 11 Weeks
Samacsys Manufacturer Stackpole Electronics, Inc.
Additional Feature RATED AC VOLTAGE (V): 1150
Construction Tubular
JESD-609 Code e3
Lead Diameter 0.55 mm
Lead Length 28 mm
Mounting Feature THROUGH HOLE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Diameter 2.4 mm
Package Length 6 mm
Package Shape TUBULAR PACKAGE
Package Style Axial
Packing Method AMMO PACK
Rated Power Dissipation (P) 0.25 W
Rated Temperature 70 °C
Resistance 750000 Ω
Resistor Type FIXED RESISTOR
Surface Mount NO
Technology METAL FILM
Temperature Coefficient 200 ppm/°C
Terminal Finish Matte Tin (Sn)
Terminal Shape WIRE
Tolerance 1%
Working Voltage 1600 V

Alternate Parts for RNV14FAL750K

This table gives cross-reference parts and alternative options found for RNV14FAL750K. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RNV14FAL750K, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
RNF14S7503FT Akahane Electronics Ind Corp Check for Price Fixed Resistor, Metal Film, 0.25W, 750000ohm, 1600V, 1% +/-Tol, -200,200ppm/Cel, RNV14FAL750K vs RNF14S7503FT
RNV14FTL750K SEI Stackpole Electronics Inc Check for Price Fixed Resistor, Metal Film, 0.25W, 750000ohm, 1600V, 1% +/-Tol, 200ppm/Cel, Through Hole Mount, AXIAL LEADED RNV14FAL750K vs RNV14FTL750K
RNF14TB7503FT Akahane Electronics Ind Corp Check for Price Fixed Resistor, Metal Film, 0.25W, 750000ohm, 1600V, 1% +/-Tol, -200,200ppm/Cel, RNV14FAL750K vs RNF14TB7503FT
